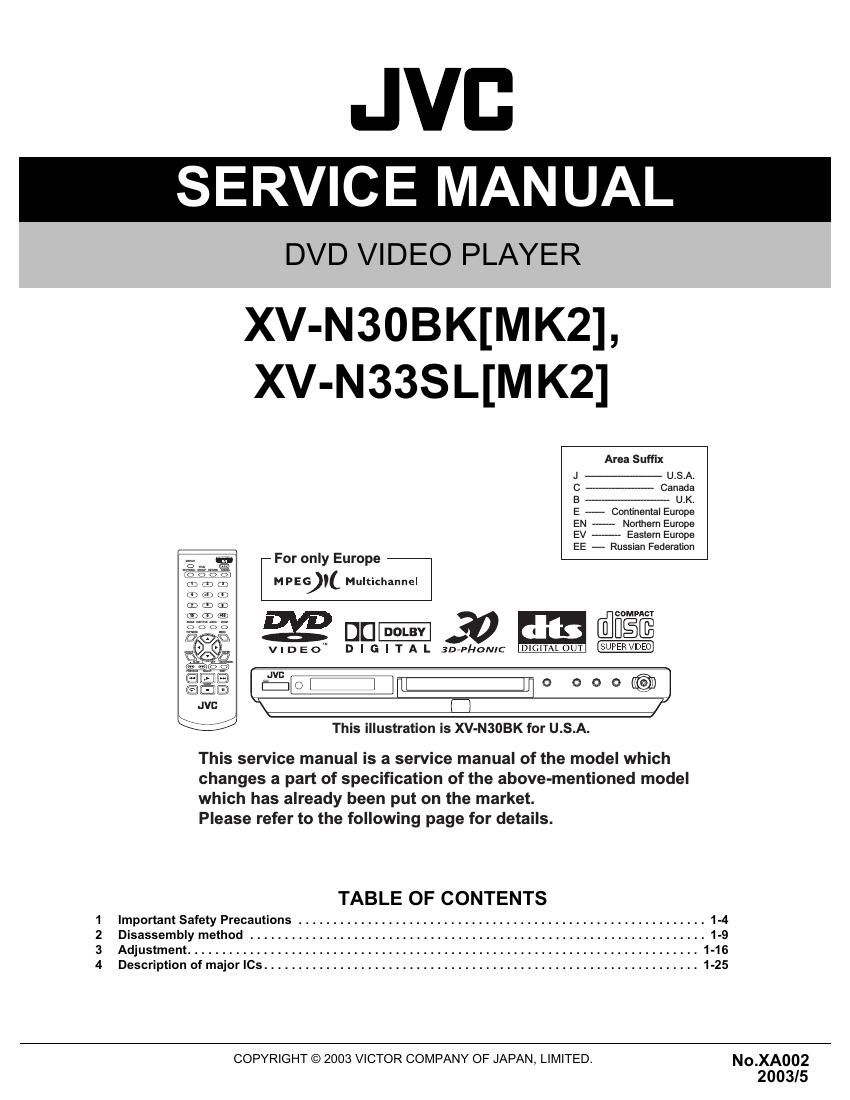

Page 1

1-2 (No.XA002) For this service manual This service manual is a service manual of the model which changes a part of specification of the above-mentioned model which has already been put on the market. The specification is different from what the label of the same model does not paste because of the specification improvement, and refer to this service manual, please. Please already refer to the issued service manual when the label is not pasted. * Please refer to this service manual for the model to which this label is pasted. * Please refer to the service manual which has already been issued for the model to which this label is not pasted. (one that there is no description named [MK2] in cover of service manual. ) 0478 inside Used only service dealer Please refer to service manual of an applicable model [MK2] GN30080-001A The surface of a rear panel or

Page 2

(No.XA002)1-3 SPECIFICATION (For U.S.A.) General Other Video outputs Audio outputs Audio characteristics - Specifications and appearance are subject to change without prior notice. - Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarkes of Dolby Laboratories. - Manufactured under license from Digital Theater Systems, Inc. "DTS" and "DTS Digital Surround" are registered trademarks of Dig- ital Theater Systems, Inc. Readable discs DVD VIDEO, DVD-R (Video format), DVD-RW (Video format), +RW (Video format), SVCD, Video CD, Audio CD (CD-DA), MP3 format, CD-R/RW (CD-DA, SVCD, Video CD, MP3 format) Video format NTSC Power requirements AC 120 V, 60 Hz Power consumption 10 W (POWER ON) 0.7 W (STANDBY mode) Mass 2.1 kg (4.7 lbs) Dimensions (W x H x D) 435mm x 53mm x 248.4mm (17-3/16 inch x 2-1/8 inc x 9-13/16 inch) COMPONENT (pin jacks) Y Output: 1.0 Vp-p (75 ohm) Pb/Pr Output: 0.7Vp-p (75 ohm) VIDEO OUT (pin jack) 1.0 Vp-p (75 ohm) S-VIDEO OUT (S jack) Y Output: 1.0 Vp-p (75 ohm) C Output: 286 mVp-p (75 ohm) Horizontal resolution 500 lines or more ANALOG OUT (pin jack) 2.0 Vrms (10 kohm) DIGITAL OUT (COAXIAL) 0.5 Vp-p (75 ohm termination) DIGITAL OUT (OPTICAL) -21 dBm to -15 dBm (peak) Frequency response CD (sampling frequency 44.1 kHz):2 Hz to 20 kHz DVD (sampling frequency 48 kHz):2 Hz to 22 kHz (4 Hz to 20 kHz for DTS and Dolby Digital bitstream signals) DVD (sampling frequency 96 kHz):2 Hz to 44 kHz Dynamic range 16 bit: More than 98 dB 20 bit: More than 100 dB 24 bit: More than 100 dB Wow and flutter Unmeasurable (less than + 0.002%) Total harmonic distortion less than 0.006%
