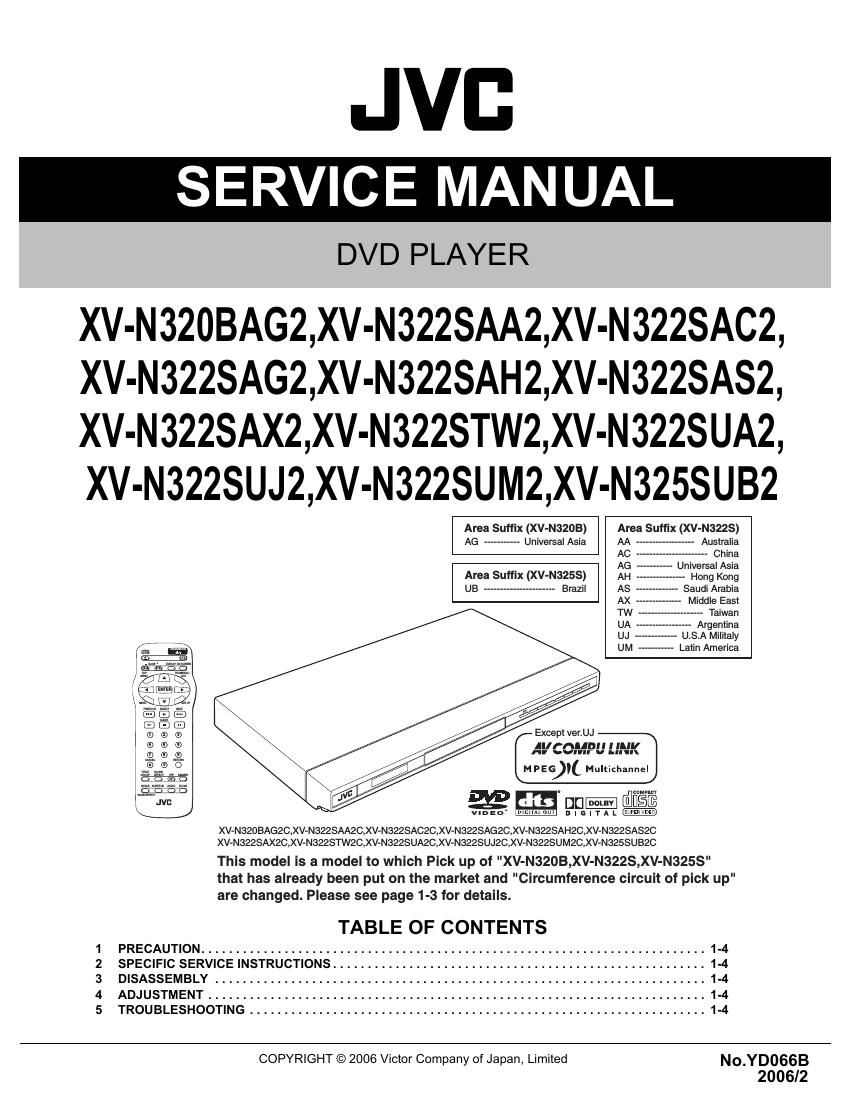

Jvc XVN 325 Service Manual

Page 2

SPECIFICATION

XV-NBZDBAGZ,XV-NBZZSAAZ,XV-N3225ACZ,XV-NJZZSAGZ,XV-N322SAH2,

XV-N3225UJ2 XV-N3225ASZ,XV-N322SAX2,XV-NSZZSTW2,XV-N3225UA2,XV-N322SUM2,XV-N3255UB2

General

Readable discs

DVD VIDEO, DVD-R (Video format), DVD-RW (Video format). SVCD, Video CD, Audio CD (CD-DA),
CD-R/RW (CD-DA, SVCD, Video CD, MP3 format, JPEG)

Video format

NTSC, 480i/480p selectable NTSC : 525i/525p
PAL : 625i/625p

Other

Power requirements

AC 110V - 240 V~, 50 Hz/GO Hz (Only for the Australia model: AC 220 V - 240 V~,5OHz)

Power consumption

11.0 W (POWER ON), 1.0 W (STANDBY mode)

Mass

1.5 kg

Dimensions (W x H X D)

435mm X 44mm X 201.5 mm

Video outputs

COMPONENT(pin jacks)

Y Output: 1.0 Vp-p (75 £2)

Pb/Pr Output: 0.7Vp-p (75 Q)

VIDEO (pin jack)

1.0 Vp-p (75 o)

S-VIDEO (s jacks)

Y Output: 1.0 Vp-p (75 £2)

C Output: 286mVp-p (75 Q)

Horizontal resolution

500 lines or more

Audio outputs

ANALOG OUT (pin jack)

2.0 Vrms (10 kc)

DIGITAL OUT(COAXIAL)

0.5 Vp-p (75 £2 termination)

Audio characteristics

Frequency response

CD (sampling frequency 441 kHz):2 Hz to 20 kHz

DVD (sampling frequency 48 kHz):2 Hz to 22 kHz
(4 Hz to 20 kHz for DTS and Dolby Digital bitstream signals)

DVD (sampling frequency 96 kHz):2 Hz to 44 kHz

Wow and flutter

Unmeasurable (less than +- 0.002%)

Total harmonic distortion

less than 0.009%

- Manufactured under license from Dolby Laboratories. Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

- DTS and DTS Digital Out" are trademarks of Digital Theater Systems, Inc.

- This product incorporates copyright protection technology that is protected by US, patents and other intellectual property rights. Use
of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses
only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

- CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS
PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE
SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE STANDARD

DEFINITION" OUTPUT.

IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p

AND 625p DVD PLAYER. PLEASE CONTACT OUR CUSTOMER SERVICE CENTER."

1-2 (No.YD0668)
