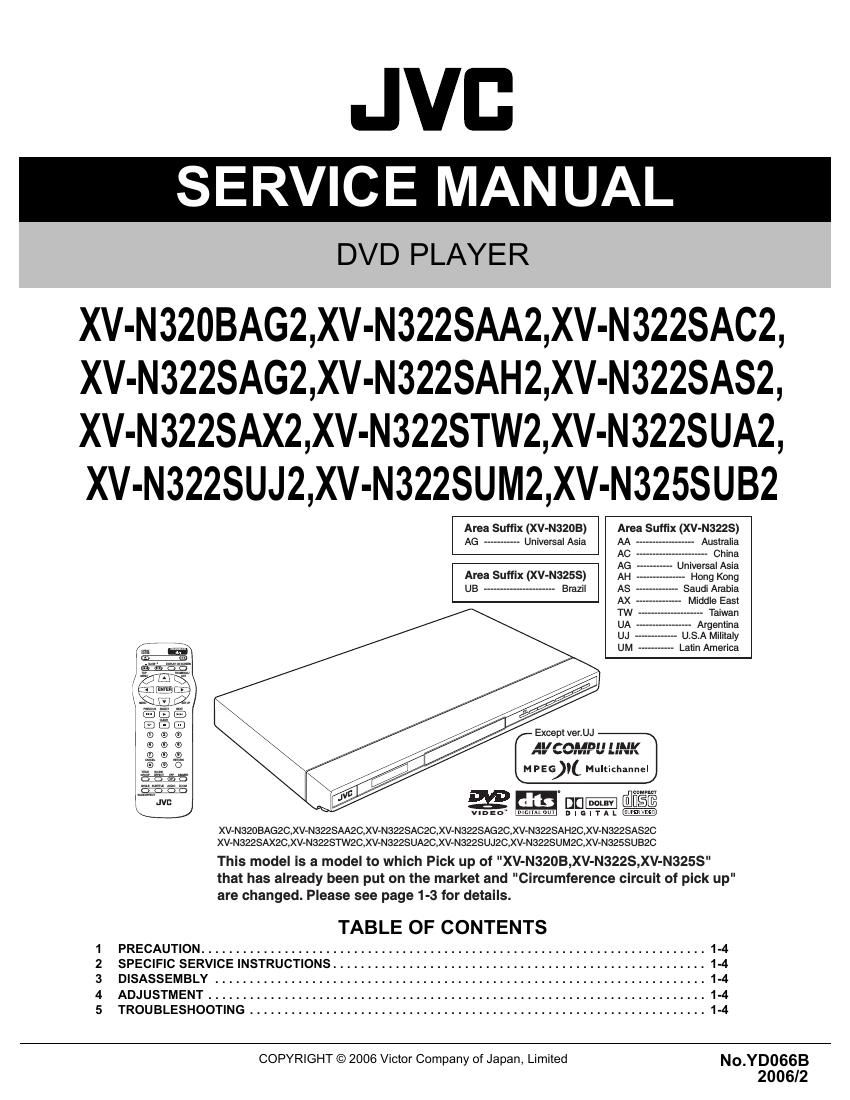

Jvc XVN 320 Service Manual
This is the 39 pages manual for Jvc XVN 320 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc XVN 320 Service Manual (Ocr-read)
Page 2
SPECIFICATION
XV-NBZDBAGZ,XV-NBZZSAAZ,XV-N3225ACZ,XV-NJZZSAGZ,XV-N322SAH2,
XV-N3225UJ2 XV-N3225ASZ,XV-N322SAX2,XV-NSZZSTW2,XV-N3225UA2,XV-N322SUM2,XV-N3255UB2
General
Readable discs
DVD VIDEO, DVD-R (Video format), DVD-RW (Video format). SVCD, Video CD, Audio CD (CD-DA),
CD-R/RW (CD-DA, SVCD, Video CD, MP3 format, JPEG)
Video format
NTSC, 480i/480p selectable NTSC : 525i/525p
PAL : 625i/625p
Other
Power requirements
AC 110V - 240 V~, 50 Hz/GO Hz (Only for the Australia model: AC 220 V - 240 V~,5OHz)
Power consumption
11.0 W (POWER ON), 1.0 W (STANDBY mode)
Mass
1.5 kg
Dimensions (W x H X D)
435mm X 44mm X 201.5 mm
Video outputs
COMPONENT(pin jacks)
Y Output: 1.0 Vp-p (75 £2)
Pb/Pr Output: 0.7Vp-p (75 Q)
VIDEO (pin jack)
1.0 Vp-p (75 o)
S-VIDEO (s jacks)
Y Output: 1.0 Vp-p (75 £2)
C Output: 286mVp-p (75 Q)
Horizontal resolution
500 lines or more
Audio outputs
ANALOG OUT (pin jack)
2.0 Vrms (10 kc)
DIGITAL OUT(COAXIAL)
0.5 Vp-p (75 £2 termination)
Audio characteristics
Frequency response
CD (sampling frequency 441 kHz):2 Hz to 20 kHz
DVD (sampling frequency 48 kHz):2 Hz to 22 kHz
(4 Hz to 20 kHz for DTS and Dolby Digital bitstream signals)
DVD (sampling frequency 96 kHz):2 Hz to 44 kHz
Wow and flutter
Unmeasurable (less than +- 0.002%)
Total harmonic distortion
less than 0.009%
- Manufactured under license from Dolby Laboratories. Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
- DTS and DTS Digital Out" are trademarks of Digital Theater Systems, Inc.
- This product incorporates copyright protection technology that is protected by US, patents and other intellectual property rights. Use
of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses
only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
- CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS
PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE
SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE STANDARD
DEFINITION" OUTPUT.
IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p
AND 625p DVD PLAYER. PLEASE CONTACT OUR CUSTOMER SERVICE CENTER."
1-2 (No.YD0668)
