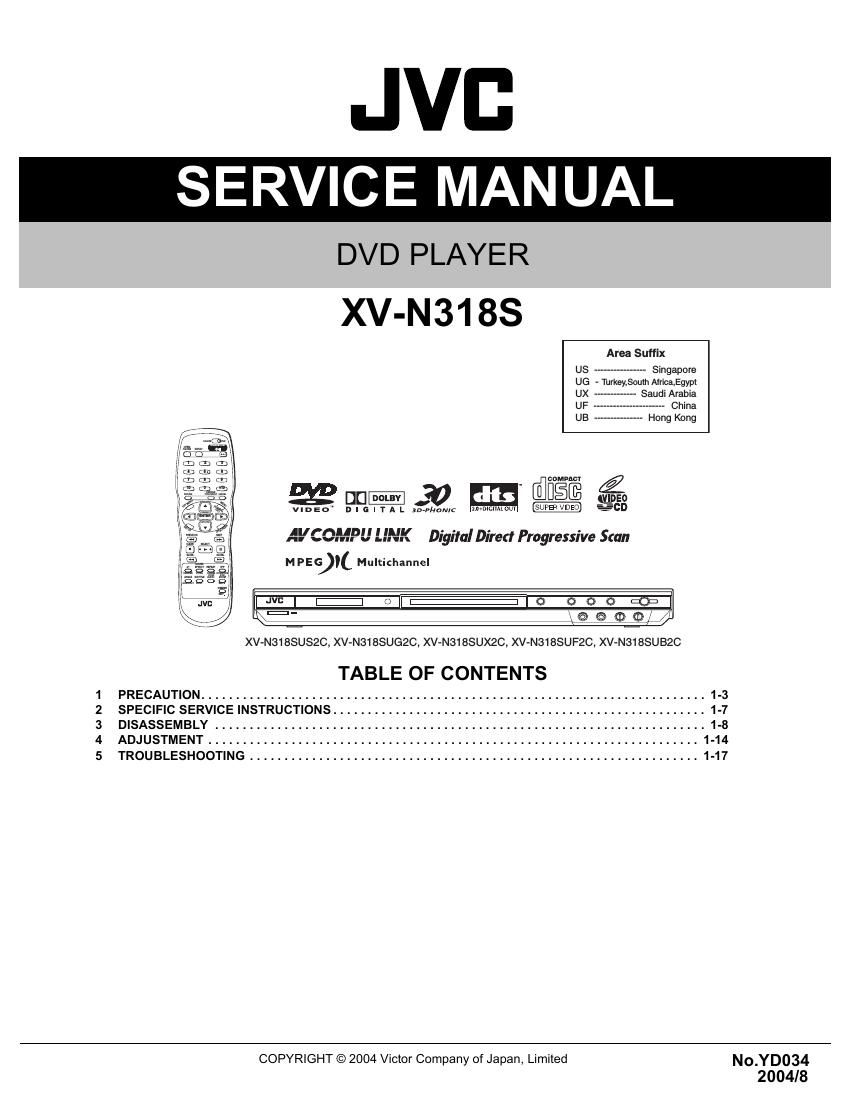

Jvc XVN 318 S Service Manual
This is the 44 pages manual for Jvc XVN 318 S Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc XVN 318 S Service Manual (Ocr-read)
Page 1
1-2 (No.YD034) SPECIFICATION Specifications and appearance are subject to change without prior notice. - Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarkes of Dolby Laboratories. - "DTS" and "DTS 2.0+Digital Out" are trademarks of Digital Theater Systems, Inc. - USE OF THIS PRODUCT IN ANY MANNER THAT COMPLIES WITH THE MPEG-4 VISUAL STANDARD IS PROHIBITED, EXCEPT FOR USE BY A CONSUMER ENGAGING IN PERS ONAL AND NON-COMMERCIAL ACTIVITIES. - This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. - CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PROD- UCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICT URE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE STANDARD DEFINITION OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER. Digital output signal chart XV-N318S for US,UG,UX,UF,UB General Readable discs DVD VIDEO, DVD-R (Video fo rmat), DVD-RW (Video format), SVCD, Video CD, Audio CD (CD-DA), CD-R/ RW (CD-DA, SVCD, Video CD, MP3 format, JPEG, MPEG-4) Video format PAL, 625i (Interlaced scan)NTSC, 525i (I nterlaced scan)/525p (Progressive scan) selectable Other Power requirements AC 110 V - 240 V~ , 50 Hz/60 Hz Power consumption 11.0 W (POWER ON), 2.0 W (STANDBY mode) Mass 1.6 k g Dimensions (W × H × D) 435 mm × 44 mm × 201 mm Video outputs COMPONENT (pin jacks) Y Output: 1.0 Vp-p (75 Ω) Pb/Pr Output: 0.7 Vp-p(75 Ω) VIDEO OUT (pin jack) 1.0 Vp-p (75 Ω) S-VIDEO OUT (S jack) Y Output: 1.0 Vp-p (75 Ω) C Output: 286 mVp-p (75 Ω) Horizontal resolution 500 lines or more Audio input MIC 1/2 4mVrms (8.2 k Ω) Audio outputs ANALOG OUT (pin jack) 2.0 Vrms (10 k Ω) DIGITAL OUT (COAXIAL) 0.5 Vp-p (75 Ω termination) Audio characteristics Frequency response CD (sampling frequency 44.1 kHz):2 Hz to 20 kHz DVD (sampling frequency 48 kHz):2 Hz to 22 kHz (4 Hz to 20 kHz for DTS and Dolby Digital bitstream signals) DVD (sampling frequency 96 kHz)2 Hz to 44 kHz Dynamic range 16 bit: More than 98 dB 20 bit/24 bit: More than 100 dB Wow and flutter Unmeasurable (less than +- 0.002%) Total harmonic distortion less than 0.009% Disc type Output PCM ONLY DOLBY DIGITAL/PCM STREAM/PCM DVD with 48/44.1 kHz, 16/20/24 bit linear PCM 48/44.1 kHz, 16 bit, stereo linear PCM DVD with DTS 48 kHz, 16 bit, stereo linear PCM DTS bitstream DVD with Dolby Digital 48 kHz, 16 bit, stereo linear PCM Dolby Digital bitstream DVD with MPEG Multichannel 48 kHz, 16 bit, stereo linear PCM MPEG bitstream SVCD/Video CD/Audio CD 44.1 kHz, 16 bit, stereo linear PCM Audio CD with DTS 48 kHz, 16 bit, stereo linear PCM DTS bitstream CD-R/RW with MP3 Linear PCM CD-R/RW with MPEG-4 No output
Page 2
(No.YD034)1-3 SECTION 1 PRECAUTION 1.1 Safety Precautions (1) This design of this product contains special hardware and many circuits and components specially for safety purpos- es. For continued protection, no changes should be made to the original design unless authorized in writing by the manufacturer. Replacement pa rts must be identical to those used in the original circuits. Services should be per- formed by qualified personnel only. (2) Alterations of the design or circuitry of the product should not be made. Any design alterations of the product should not be made. Any design alterations or additions will void the manufacturers warranty and will further relieve the manufacture of responsibility fo r personal injury or property damage resulting therefrom. (3) Many electrical and mechanical parts in the products have special safety-related characte ristics. These characteris- tics are often not evident from visual inspection nor can the protection afforded by them nec essarily be obtained by us- ing replacement components rated for higher voltage, watt- age, etc. Replacement parts which have these special safety characteristics are identi fied in the Parts List of Ser- vice Manual. Electrical co mponents having such features are identified by shading on the schematics and by ( ) on the Parts List in the Service Manual. The use of a substitute replacement which does not have the same safety charac- teristics as the recommended replacement parts shown in the Parts List of Service Manual may create shock, fire, or other hazards. (4) The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the like to be separated from live parts, high temperatur e parts, moving parts and/or sharp edges for the preventi on of electric shock and fire hazard. When service is required, the original lead routing and dress should be observed, and it should be confirmed that they have been returned to normal, after reassem- bling. (5) Leakage shock hazard testing) After reassembling the product, always perform an isola- tion check on the exposed metal parts of the product (an- tenna terminals, knobs, metal cabinet, screw heads, headphone jack, control shafts, etc.) to be sure the product is safe to operate without danger of electrical shock.Do not use a line isolation transformer during this check. - Plug the AC line cord directly into the AC outlet. Using a "Leakage Current Tester", measure the leakage current from each exposed metal parts of the cabinet, particular- ly any exposed metal part having a return path to the chassis, to a known good earth ground. Any leakage cur- rent must not exce ed 0.5mA AC (r.m.s.). - Alternate check method Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000 ohms per volt or more sensi- tivity in the following manner. Connect a 1,500 ohm 10W resistor paralleled by a 0.15 F AC-type capacitor be- tween an exposed metal part and a known good earth ground. Measure the AC voltage acro ss the resistor with the AC voltmeter. Move the resistor connection to each exposed metal part, particularly any exposed metal part having a return path to the chassis, and measure the AC voltage across the resistor. Now, reverse the plug in the AC outlet and repeat each measurement. Vo ltage measured any must not exceed 0.75 V AC (r.m.s.). This corresponds to 0.5 mA AC (r.m.s.). 1.2 Warning (1) This equipment has been designed and manufactured to meet international safety standards. (2) It is the legal responsibility of the repairer to ensure that these safety standards are maintained. (3) Repairs must be made in accordance with the relevant safety standards. (4) It is essential that safety critical components are replaced by approved parts. (5) If mains voltage selector is provided, check setting for local voltage. 1.3 Caution Burrs formed during molding ma y be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of pre- forming repair of this system. 1.4 Critical parts for safety In regard with component parts appearing on the silk-screen printed side (parts side) of the PWB diagrams, the parts that are printed over with black such as the resistor ( ), diode ( ) and ICP ( ) or identified by the " " mark nearby are critical for safety. When replacing them, be sure to use the parts of the same type and rating as specified by the manufacturer. (Except the JC version)
