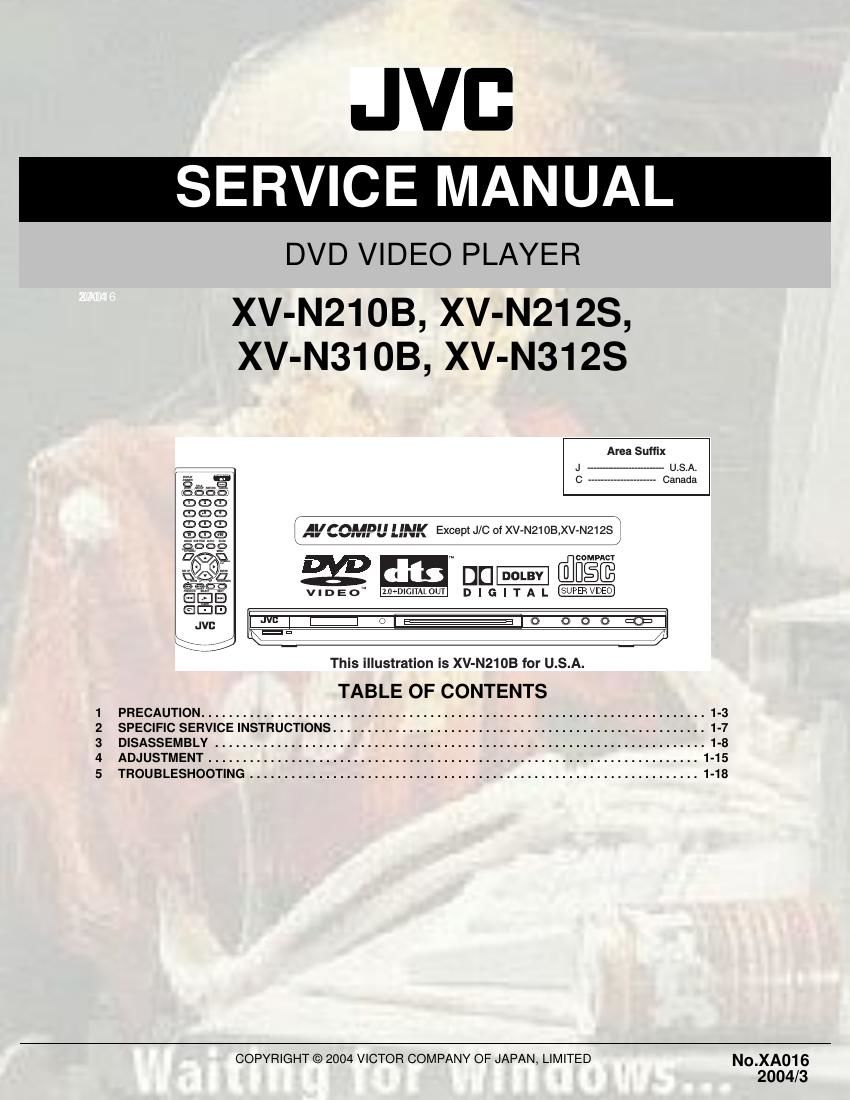

Jvc XVN 212 S Service Manual

Page 2

SPECIFICATION

(For version J of XV-N31OB.)

General
Readable discs DVD VIDEO, DVD-R (Video format). DVD-RW (Video format).SVCD, Video CD, Audio CD (CD-DA),
JPEG, CD-R/RW(CD-DA, SVCD, Video CD, MP3 format. JPEG,MPEG-4)
Video format NTSC, 480i (Interlaced scan)/480p (Progressive scan) selectable
Other
Power requirements AC 120 V~, 60 Hz
Power consumption 10.0 W (POWER ON), 2.0 W (STANDBY mode)
Mass 1.6 k g (3.6 lbs)

Dimensions (W X H x D) 435mm X 44mm X 201mm (17-3/16 inch x 1-3/4 inc >< 7-15/16 inch)
Video outputs

COMPONENT (pin jacks) Y Output: 1.0 Vp»p (75 £2)
Pb/Pr Output: 0.7Vp»p (75 Q)
VIDEO our (pin jack) 1.0 Vp-p (75 n)

S-VIDEO OUT (8 jack) Y Output: 1.0 Vp-p (75 Q)

C Output: 286 mVp-p (75 9)
Horizontal resolution 500 lines or more

Audio outputs

ANALOG OUT (pin jack) 2.0 Vrms (10 k0)
DIGITAL OUT (COAXIAL) 0.5 Vp»p (75 O termination)
Audio characteristics

Frequency response CD (sampling frequency 44.1 kHz):2 Hz to 20 kHz

DVD (sampling frequency 48 kHz) :2 Hz to 22 kHz
(4 Hz to 20 kHz for DTS and Dolby Digital bitstream signals)

DVD (sampling frequency 96 kHz) :2 Hz to 44 kHz

Dynamic range 16 bit: More than 98 dB
20 bit/24 bit: More than 100 dB
Wow and flutter Unmeasurable (less than +- 0.002%)

Total harmonic distortion less than 0.009%

*Notes for PX model (Check the specification indication on the rear panel.)
Power requirements AC 110 V to 240 V~, 50 Hz/60 Hz
Power consumption 11.0 W (POWER ON), 2.0 W (STANDBY mode)

Specifications and appearance are subject to change without prior notice.

' Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarkes of Dolby Laboratories.
DTS and "DTS 2.0+Digital Out" are trademarks of Digital Theater Systems, Inc.

USE OF THIS PRODUCT IN ANY MANNER THAT COMPLIES WITH THE MPEG-4 VISUAL STANDARD IS PROHIBITED, EX-
CEPT FOR USE BY A CONSUMER ENGAGING IN PERSONAL AND NON»COMMERCIAL ACTIVITIES.

' This product incorporates copyright protection technology that is protected by method claims of certain US. patents and other in-
tellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology
must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise au-
thorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

1-2 (N0.XA016)

Page 3

SECTION 1
PRECAUTION

1.1 Safety Precautions

(1) This design of this product contains special hardware and
many circuits and components specially for safety purpos-
es. For continued protection, no changes should be made
to the original design unless authorized in writing by the
manufacturer. Replacement parts must be identical to
those used in the original circuits. Services should be per-
formed by qualified personnel only.

(2) Alterations of the design or circuitry of the product should
not be made. Any design alterations of the product should
not be made. Any design alterations or additions will void
the manufacturers warranty and will further relieve the
manufacture of responsibility for personal injury or property
damage resulting therefrom.

(3) Many electrical and mechanical parts in the products have
special safety»related characteristics. These characteris-
tics are often not evident from visual inspection nor can the
protection afforded by them necessarily be obtained by us-
ing replacement components rated for highervoltage, watt-
age, etc. Replacement parts which have these special
safety characteristics are identified in the Parts List of Ser-
vice Manual. Electrical components having such features
are identified by shading on the schematics and by ( A) on
the Parts List in the Service Manual. The use of a substitute
replacement which does not have the same safety charac-
teristics as the recommended replacement parts shown in
the Parts List of Service Manual may create shock, fire, or
other hazards.

(4) The leads in the products are routed and dressed with ties,
clamps, tubings, barriers and the like to be separated from
live parts, high temperature parts, moving parts and/or
sharp edges for the prevention of electric shock and fire
hazard. When service is required, the original lead routing
and dress should be observed, and it should be confirmed
that they have been returned to normal, after reassem-
bling.

(5) Leakage shock hazard testing)

After reassembling the product, always perform an isola-
tion check on the exposed metal parts of the product (an-
tenna terminals, knobs, metal cabinet, screw heads,
headphone jack, control shafts, etc.) to be sure the product
is safe to operate without danger of electrical shock.Do not
use a line isolation transformer during this check.

. Plug the AC line cord directly into the AC outlet. Using a
"Leakage Current Tester", measure the leakage current
from each exposed metal parts of the cabinet, particular-
ly any exposed metal part having a return path to the
chassis, to a known good earth ground. Any leakage cur-
rent must not exceed 0.5mA AC (r.m.s.).

. Alternate check method
Plug the AC line cord directly into the AC outlet. Use an
AC voltmeter having, 1,000 ohms per volt or more sensi-
tivity in the following manner. Connect a 1,500 ohm 10W
resistor paralleled by a 0.15 F AC-type capacitor be-
tween an exposed metal part and a known good earth
ground.

Measure the AC voltage across the resistor with the AC
voltmeter.

Move the resistor connection to each exposed metal
part, particularly any exposed metal part having a return

path to the chassis, and measure the AC voltage across
the resistor. Now, reverse the plug in the AC outlet and
repeat each measurement. Voltage measured any must
not exceed 0.75 V AC (r.m.s.). This corresponds to 0.5

mA AC (r.m.s.).

r:

0.1511 F AC TYPE

AC VOLTM ETER
(Having 1000
ohms/volts,

or more sensitivity)

-| l-l Place this
_ probe on
'WV ' ' each exposed
1500 Q 1 OW metal part.

Good earth ground
1.2 Warning

(1) This equipment has been designed and manufactured to
meet international safety standards.

(2) It is the legal responsibility of the repairer to ensure that
these safety standards are maintained.

(3) Repairs must be made in accordance with the relevant
safety standards.

(4) It is essential that safety critical components are replaced
by approved parts.

(5) if mains voltage selector is provided, check setting for local
voltage.

1.3 Caution

Burrs formed during molding may be left over on some parts
of the chassis.

Therefore, pay attention to such burrs in the case of pre-
forming repair of this system.

1.4 Critical parts for safety

In regard with component parts appearing on the silk-screen
printed side (parts side) of the PWB diagrams, the parts that are
printed over with black such as the resistor ( - ), diode ( _)
and ICP ( .) or identified by the "A" mark nearby are critical for
safety. When replacing them, be sure to use the parts of the
same type and rating as specified by the manufacturer. (Except
the JC version)

(No.XA016)1-3
