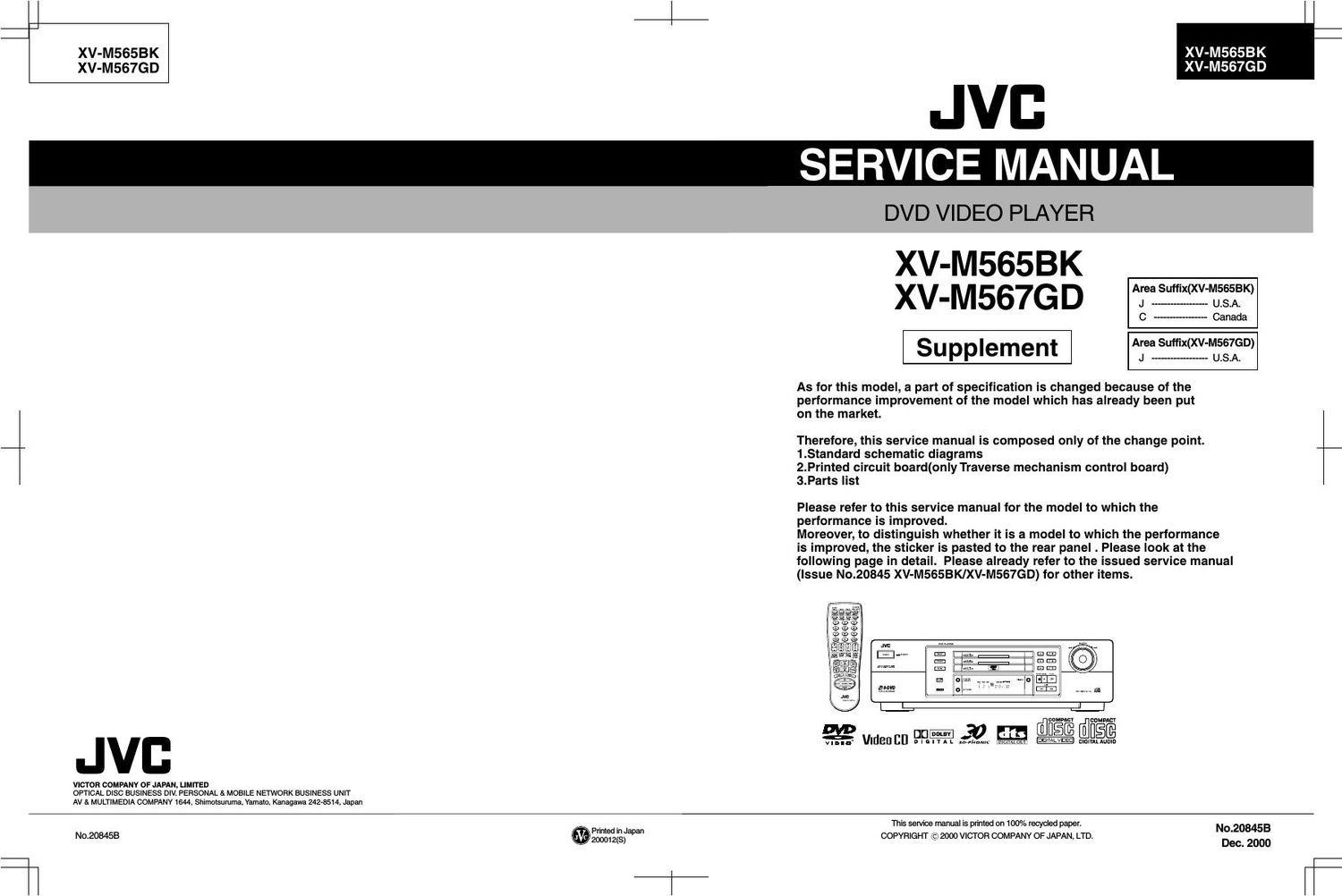

Page 1

XV-M565BK
XV-M567GD

XV-M5GSBK
XV-M567GD

JVB

SERVICE MANUAL

JVB

VICTOR COMPANY OF JAPAN, LIMITED
OPTICAL DISC BUSINESS DIV. PERSONAL & MOBILE NETWORK BUSINESS UNIT
AV & MULTIMEDIA COMPANY 1644, Shimotsuruma, Yamato, Kanagawa 2428514, Japan

DVD VIDEO PLAYER

XV-M565BK
XV-M567GD A3°iitfiiifflilli§iim

C Canada
Area Suffix(XV-M567GD)
Supplement I

As for this model, a part of specification is changed because of the
performance improvement of the model which has already been put
on the market.

Therefore, this service manual is composed only of the change point.
1.Standard schematic diagrams

2.Printed circuit board(only Traverse mechanism control board)
3.Parts list

Please refer to this service manual for the model to which the
performance is improved.

Moreover, to distinguish whether it is a model to which the performance
is improved, the sticker is pasted to the rear panel . Please look at the
following page in detail. Please already refer to the issued service manual
(Issue No.20845 XV-M565BK/XV-M567GD) for other items.

[filfl_§@ COMPACT COMPACT

n | a | 1 A I. abrPkOMC mmw out _GW

g VllIBu [II] Dfl- «m

Printed in Japan
No.2084SB .200012(S)

This service manual is printed on 100% recycled paper. N 0 208453
COPYRIGHT (C) 2000 VICTOR COMPANY OF JAPAN, LTD. '
Dec. 2000

Page 2

XV-M5658K/XV-M567GD
Method of distinguishing performance improvement model

When a green sticker had been pasted to rear panel, it is a model to which the
performance is improved.

Moreover, it is possible to distinguish even by the shape of the clamper.

REAR PANEL

Sticker }

(Green)

Changer u
mechanism

Clamper Rivet Not Improved

improved

Screw Clamper

1-1
