Jvc XVE 100 SL Owners Manual
This is the 48 pages manual for Jvc XVE 100 SL Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

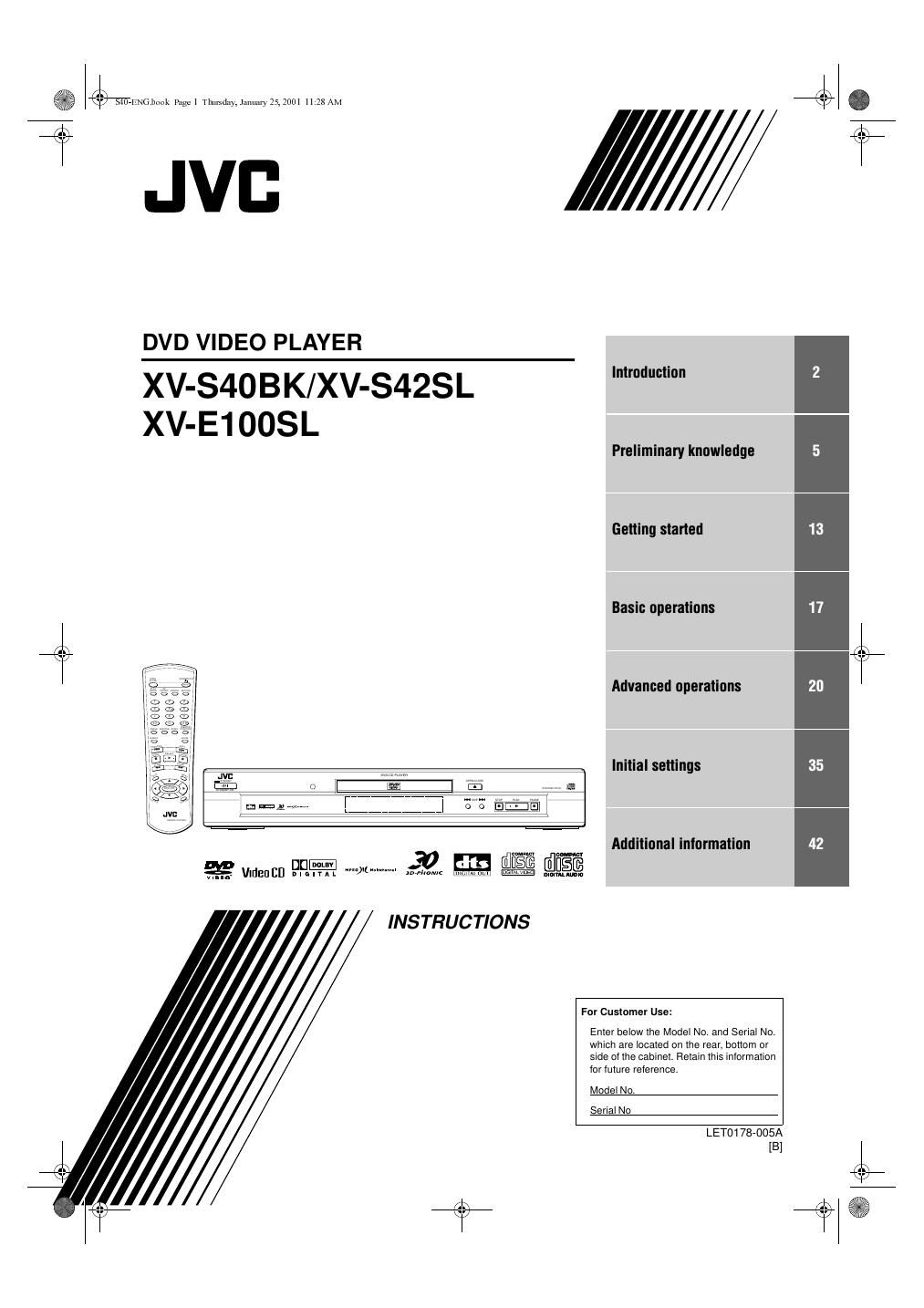

Extracted text from Jvc XVE 100 SL Owners Manual (Ocr-read)
Page 1
Warnings, Cautions and Others IMPORTANT for the U.K. DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer. BE SURE to replace the fuse only with an identical approved type, as originally fitted. If nonetheless the mains plug is cut off ensure to remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply. If this product is not supplied fitted with a mains plug then follow the instructions given below: IMPORTANT. DO NOT make any connection to the terminal which is marked with the letter E or by the safety earth symbol or coloured green or green-and-yellow. The wires in the mains lead on this product are coloured in accordance with the following code: Blue : Neutral Brown : Live As these colours may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. IF IN DOUBT - CONSULT A COMPETENT ELECTRICIAN. CAUTION To reduce the risk of electrical shocks, fire, etc.: 1. Do not remove screws, covers or cabinet. 2. Do not expose this appliance to rain or moisture. Caution –– switch! Disconnect the mains plug to shut the power off completely. The switch in any position does not disconnect the mains line. The power can be remote controlled. CAUTION: - Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.) - Do not place any naked flame sources, such as lighted candles, on the apparatus. - When discarding batteries, environmental problems must be con- sidered and local rules or laws governing the disposal of these bat- teries must be followed strictly. - Do not use this apparatus in a bathroom or places with water. Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups, etc.) on top of this apparatus. IMPORTANT FOR LASER PRODUCTS 1. CLASS 1 LASER PRODUCT 2. DANGER : Visible and Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam. 3. CAUTION : Do not open the top cover. There are no user serviceable parts inside the Unit; leave all servicing to qualified service personnel. REPRODUCTION OF LABELS 1 CLASSIFICATION LABEL, PLACED ON REAR ENCLOSURE 2 WARNING LABEL, PLACED INSIDE THE UNIT CLASS 1 LASER PRODUCT CAUTION: Invisible laser radiation when open and interlock failed or defeated. AVOID DIRECT EXPOSURE TO BEAM. (e) ADVARSEL: Usynlig laser- stråling ved åbning, når sikkerhedsafbrydere er ude af funktion. Undgå udsæt- telse for stråling (d) VARNING: Osynlig laser- strålning när denna del är öppnad och spärren är urkopplad. Betrakta ej strålen. (s) VARO: Avattaessa ja suo- jalukitus ohitettaessa olet alttiina näkymättömälle lasersäteilylle. Älä katso säteeseen. (f) Floor Spacing 15 cm or more Stand height 5 cm or more Wall or obstructions Front Caution: Proper Ventilation To avoid risk of electric shock and fire and to protect from damage. Locate the apparatus as follows: Front: No obstructions open spacing. Sides: No obstructions in 3 cm from the sides. Top: No obstructions in 5 cm from the top. Back: No obstructions in 15 cm from the back Bottom: No obstructions, place on the level surface. XV-S40BK/ XV-S42SL/ XV-E100SL 6(1*ERRN 3DJH 7KXUVGD\ -DQXDU\ $0
Page 2
Introduction 1 EnglishEnglish English English Table of Contents Introduction Page 2 Features ...............................................................................2 Supplied accessories ..........................................................2 About this instruction manual ..........................................3 Notes on handling ..............................................................4 Preliminary knowledge Page 5 Names of parts and controls .............................................5 Front panel................................................................................5 Remote control unit .................................................................6 Display window ........................................................................8 Rear panel .................................................................................8 Operational Principles ........................................................9 On-screen displays...................................................................9 To prevent the monitor from burning out [SCREEN SAVER] ................................................................10 On-screen guide icons ...........................................................11 How to use numeric buttons .................................................11 About discs .......................................................................12 Playable disc types.................................................................12 Disc structure..........................................................................12 Getting started Page 13 Connections ......................................................................13 Before making any connections ...........................................13 To connect to a TV .................................................................13 To connect to a TV with the SCART connector ...................14 To connect to an audio amplifier or receiver.......................15 To connect to audio equipment with a digital input ...........15 To connect the power cord ...................................................16 To install batteries in the remote control unit ..............16 Basic operations Page 17 Turning on/off the unit ....................................................17 Inserting and removing discs ..........................................17 Basic playback ..................................................................18 To start playback ....................................................................18 To stop playback completely ................................................18 To stop playback temporarily ...............................................18 To advance or reverse playback rapidly while monitoring ...........................................................................18 To locate the beginning of the scene or song .....................19 Resuming playback ..........................................................19 To memorize the interrupted position .................................19 To resume playback ...............................................................19 Advanced operations Page 20 Playing from a specific position on a disc ......................20 To locate a desired scene from the DVD menu ...................20 To locate a desired scene from the menu of the Video CD with PBC ........................................................................20 To locate a desired selection using the numeric buttons ...21 To locate a desired selection using 4or¢............................................................................21To locate a desired scene by specifying the chapter number [CHAP.SERCH] ...................................................... 22 To locate a desired position in the current title or track [TIME SEARCH] ................................................................... 22 To locate a desired scene from the display [DIGEST] ........ 23 Special picture playback ................................................. 24 To advance a still picture frame-by-frame ................................................................... 24 To display still pictures [STROBE] ........................................ 24 To playback in slow-motion [SLOW].................................... 25 To zoom a scene [ZOOM]...................................................... 25 Changing the playback order ......................................... 26 To playback in the desired order [PROGRAM] .................... 26 To playback in random order [RANDOM]........................... 27 Repeat playback............................................................... 27 To repeat the current selection or all discs contents [REPEAT] ............................................................................. 27 To repeat a desired part [A-B REPEAT] ................................ 28 Selecting a scene angle of DVD VIDEO ......................... 29 To select a scene angle from the normal screen [ANGLE] ............................................................................... 29 To select a scene angle from the angle list display [ANGLE] ............................................................................... 30 Changing the language and sound ................................ 30 To select the subtitle language [SUBTITLE] ........................ 30 To change the audio language or sound [AUDIO] .............. 31 Selecting the picture character ...................................... 32 To select the picture character [THEATER POSITION] ........ 32 Enjoying virtual surround sound.................................... 32 To simulate surround sound [3D PHONIC] .......................... 32 Checking the status ......................................................... 33 To check the disc/time information ..................................... 33 To check the DVD function status......................................... 34 To dim the brightness of the display window .............. 34 Dimning brightness of the display window......................... 34 Initial settings Page 35 Selecting preferences ...................................................... 35 How to set preferences.......................................................... 35 LANGUAGE page ................................................................... 35 AUDIO page............................................................................ 36 DISPLAY page ........................................................................ 37 SYSTEM page ........................................................................ 38 Limiting playback by children ........................................ 39 To set Parental Lock for the first time [PARENTAL LOCK].............................................................. 39 To change the settings [PARENTAL LOCK] ........................ 40 To temporarily release the Parental lock [PARENTAL LOCK] ............................................................. 41 Additional information Page 42 Care and handling of discs.............................................. 42 Troubleshooting .............................................................. 43 Specifications ................................................................... 44 Table of languages and their abbreviations.. Appendix A Country code list for parental lock..................Appendix B 6(1*ERRN 3DJH 7KXUVGD\ -DQXDU\ $0
