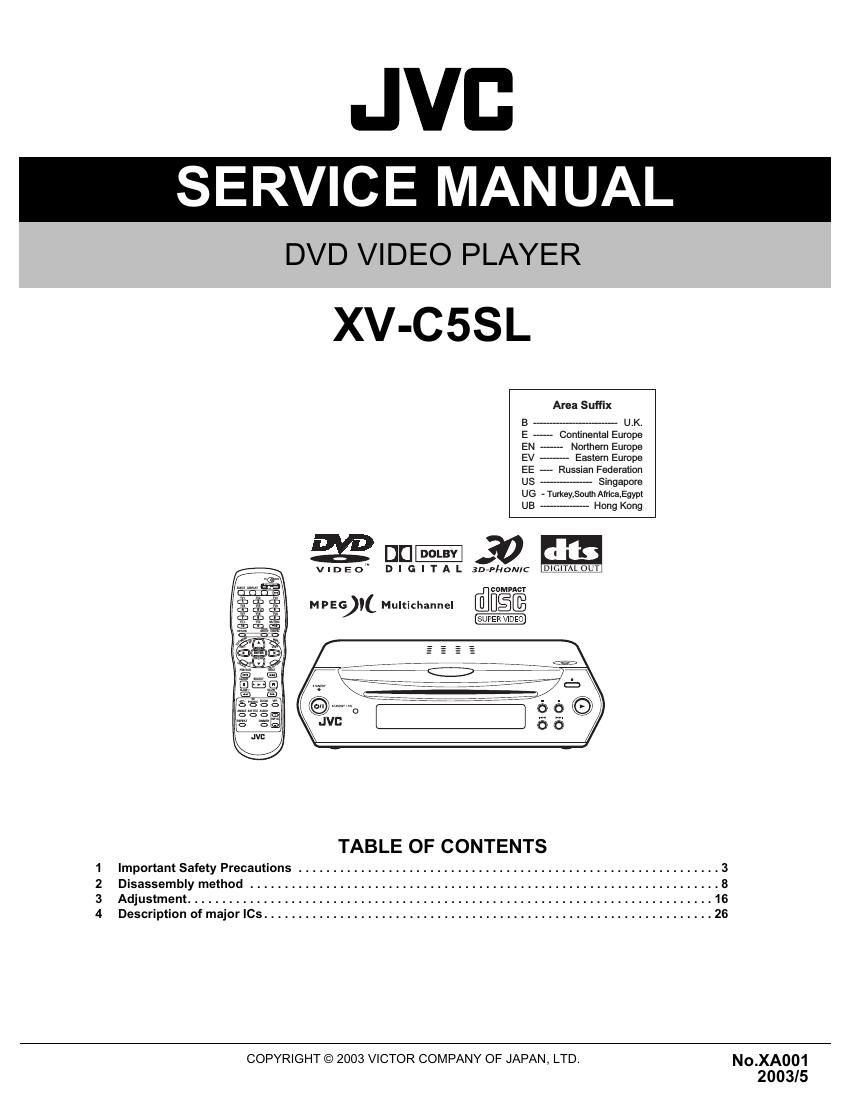

Jvc XVC 5 SL Service Manual
This is the 74 pages manual for Jvc XVC 5 SL Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc XVC 5 SL Service Manual (Ocr-read)
Page 1
1-2 (No.XA001) SPECIFICATION - Specifications and appearance are subject to change without prior notice. - Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories. Con- fidential unpublished works. - Manufactured under license from Digital Theater Systems, Inc. "DTS," "DTS Digital Surround," are trademarks of Digital Theater Systems, Inc. Digital output signal chartGeneralReadable discs DVD VIDEO, DVD-R (Video format),DVD-RW (Video format), +RW(Video format), SVCD, Video CD,Audio CD (CD-DA), MP3 format,JPEG, CD-R/ RW (CD-DA, SVCD,Video CD, MP3 format, JPEG) Video format PAL OtherPower requirements AC 230 V , 50 Hz Power consumption 12 W (POWER ON), 0.7 W (STANDBY mode) Mass 1.7 kg Dimensions (W x H x D) 218 mm x 58 mm x 270 mm Video outputsVIDEO OUT (pin jack) 1.0 Vp-p (75 Ω) Horizontal resolution 500 lines or more RGB 700 mVp-p (75 Ω) Audio outputsANALOG OUT (pin jack) 2.0 Vrms (10 kΩ) DIGITAL OUT (COAXIAL) 0.5 Vp-p (75 Ω termination) DIGITAL OUT (OPTICAL) -21 dBm to -15 dBm (peak) Audio characteristicsFrequency response CD (sampling frequency 44.1 kHz):2 Hz to 20 kHz DVD (sampling frequency 48 kHz):2 Hz to 22 kHz (4 Hz to 20 kHz for DTS and Dolby Digital bitstream signals) DVD (sampling frequency 96 kHz):2 Hz to 44 kHz Dynamic range 16 bit: More than 98 dB 20 bit: More than 100 dB 24 bit: More than 100 dB Wow and flutter Unmeasurable (less than + 0.002%) Total harmonic distortion less than 0.006% Disc typeOutput PCM ONLY DOLBY DIGITAL/PCM STREAM/PCM DVD with 48 kHz 16/20/24 bit linear PCM 48 kHz 16 bit stereo linear PCM DVD with 96 kHz 16/20/24 bit linear PCM 48kHz 16 bit stereo linear PCM (Down sampling) DVD with DTS No output DTS bitstream DVD with Dolby Digital 48 kHz 16 bit stereo linear PCM Dolby Digital bitstream DVD with MPEG Multichannel 48 kHz 16 bit stereo linear PCM MPEG bitstream SVCD/Video CD/Audio CD 44.1 kHz 16 bit stereo linear PCM Audio CD with DTS No output DTS bitstream CD-R/RW with MP3 Linear PCM
Page 2
(No.XA001)1-3 SECTION 1 Important Safety Precautions 1.1 Safety Precautions (1) This design of this product contains special hardware and many circuits and components specially for safety purpos- es. For continued protection, no changes should be made to the original design unless authorized in writing by the manufacturer. Replacement parts must be identical to those used in the original circuits. Services should be per- formed by qualified personnel only. (2) Alterations of the design or circuitry of the product should not be made. Any design alterations of the product should not be made. Any design alterations or additions will void the manufacturers warranty and will further relieve the manufacture of responsibility for personal injury or property damage resulting therefrom. (3) Many electrical and mechanical parts in the products have special safety-related characteristics. These characteris- tics are often not evident from visual inspection nor can the protection afforded by them necessarily be obtained by us- ing replacement components rated for higher voltage, watt- age, etc. Replacement parts which have these special safety characteristics are identified in the Parts List of Ser- vice Manual. Electrical components having such features are identified by shading on the schematics and by ( ) on the Parts List in the Service Manual. The use of a substitute replacement which does not have the same safety charac- teristics as the recommended replacement parts shown in the Parts List of Service Manual may create shock, fire, or other hazards. (4) The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the like to be separated from live parts, high temperature parts, moving parts and/or sharp edges for the prevention of electric shock and fire hazard. When service is required, the original lead routing and dress should be observed, and it should be confirmed that they have been returned to normal, after reassem- bling. (5) Leakage shock hazard testing) After reassembling the product, always perform an isola- tion check on the exposed metal parts of the product (an- tenna terminals, knobs, metal cabinet, screw heads, headphone jack, control shafts, etc.) to be sure the product is safe to operate without danger of electrical shock.Do not use a line isolation transformer during this check. - Plug the AC line cord directly into the AC outlet. Using a "Leakage Current Tester", measure the leakage current from each exposed metal parts of the cabinet, particular- ly any exposed metal part having a return path to the chassis, to a known good earth ground. Any leakage cur- rent must not exceed 0.5mA AC (r.m.s.). - Alternate check method Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000 ohms per volt or more sensi- tivity in the following manner. Connect a 1,500 ohm 10W resistor paralleled by a 0.15 F AC-type capacitor be- tween an exposed metal part and a known good earth ground. Measure the AC voltage across the resistor with the AC voltmeter. Move the resistor connection to each exposed metal part, particularly any exposed metal part having a returnpath to the chassis, and measure the AC voltage across the resistor. Now, reverse the plug in the AC outlet and repeat each measurement. Voltage measured any must not exceed 0.75 V AC (r.m.s.). This corresponds to 0.5 mA AC (r.m.s.). 1.2 Warning (1) This equipment has been designed and manufactured to meet international safety standards. (2) It is the legal responsibility of the repairer to ensure that these safety standards are maintained. (3) Repairs must be made in accordance with the relevant safety standards. (4) It is essential that safety critical components are replaced by approved parts. (5) If mains voltage selector is provided, check setting for local voltage. 1.3 Caution Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of pre- forming repair of this system. 1.4 Critical parts for safety In regard with component parts appearing on the silk-screen printed side (parts side) of the PWB diagrams, the parts that are printed over with black such as the resistor ( ), diode ( ) and ICP ( ) or identified by the " " mark nearby are critical for safety. When replacing them, be sure to use the parts of the same type and rating as specified by the manufacturer. (Except the JC version)
