Extracted text from Jvc XLV 1 Service Manual (Ocr-read)

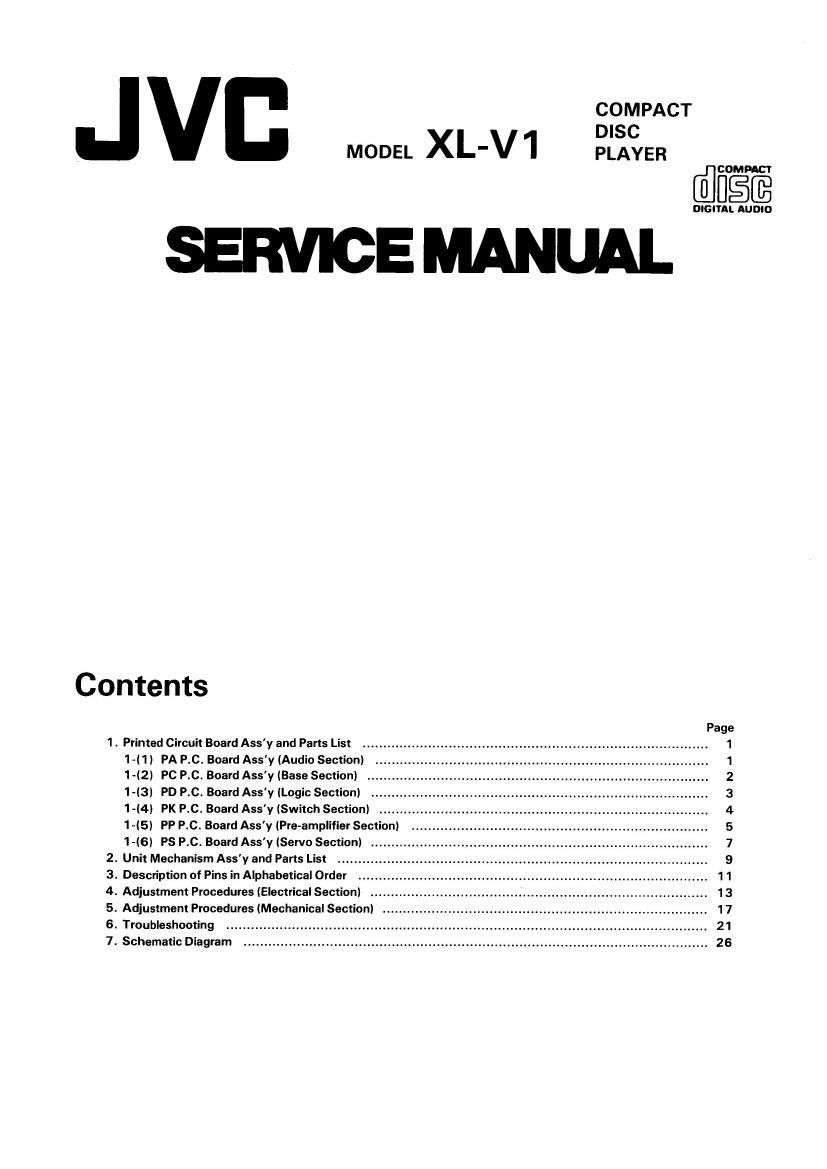

Page 1
DISC
MODEL XL'V1 PLAYER
@figé
SERVICE MANUAL
DIGIYAL AU DID
Contents
1 . Printed Circuit Board Ass'y and Parts List 1
1-(1) PA P.C. Board Ass'y (Audio Section) 1
1-(2) PC P.C. Board Ass'y (Base Section) 2
1-(3) PD P.C. Board Ass'y (Logic Section) 3
1 -(4) PK P.C. Board Ass'y (Switch Section) 4
1-(5) PP P.C. Board Ass'y (Preamplifier Section) 5
1 -(6) PS P.C. Board Ass'y (Servo Section) ........... 7
2. Unit Mechanism Ass'y and Parts List ........ 9
3. Description of Pins in Alphabetical Order 1 1
4. Adjustment Procedures (Electrical Section) ..... 13
5. Adjustment Procedures (Mechanical Section) .. 17
6. Troubleshooting
7. Schematic Diagram
