Jvc XLM 407 TN Service Manual

Page 1

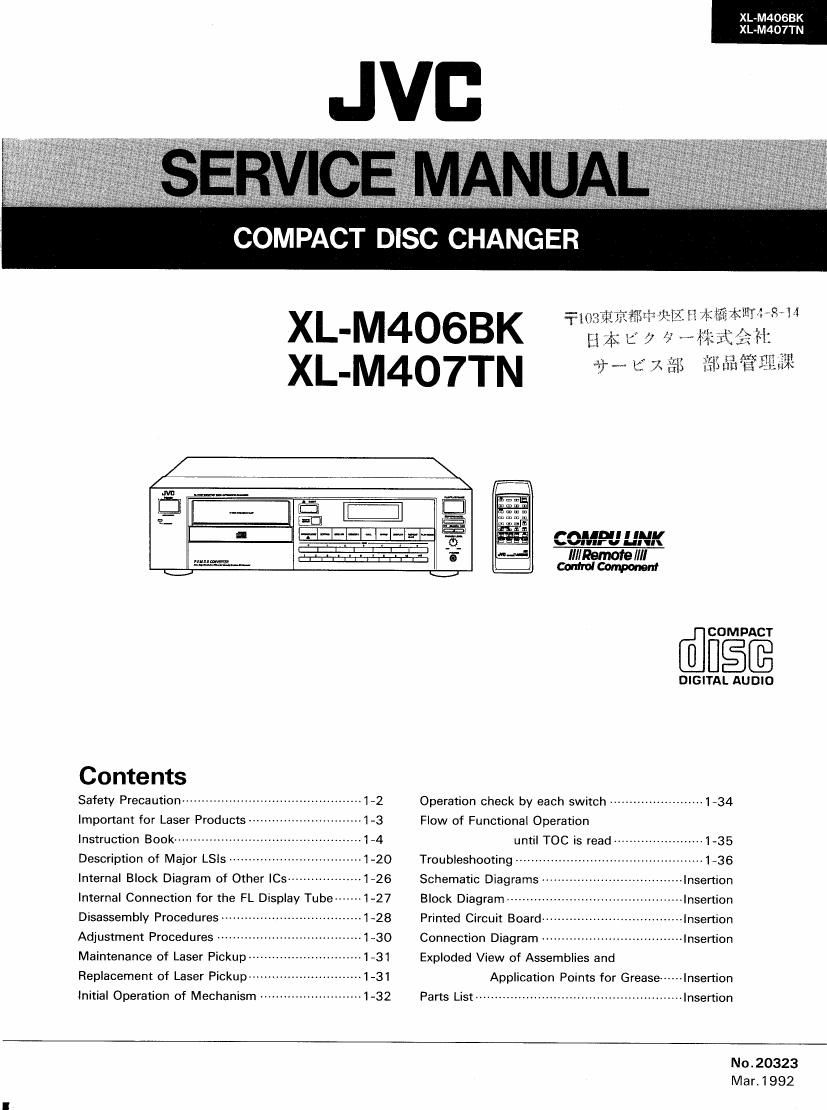

XL-M4OSBK
XL-M407TN

COMPACT DISC CHANGER

XL-M4OGBK
XL-M4O7TN fiwlfixafit agitate?

firm ES

ED
" f""" 77. COP-{P'JUNK
WW % Minors/III
K.)
@ filMPACT
DIGITA§J§
Contents
Safety Precaution ------------------------ 12 Operation check by each switch -------------------- 1734
Important for Laser Products~m ~---1~3 Flow of Functional Operation
|nstrucfion Book ............................................... 14 um" TQC is read ....................... 1-35
Description of Major LSls ---------------- 1-20 Troubleshooting ------- ---~«-1~36
Internal Block Diagram of Other |Cs~~ r1726 Schematic Diagrams Insertion
Internal Connection for the FL Display Tube ------ 1-27 Block Diagram ---------- mlnsertion
Disassembly Procedures-a 1~28 Printed Circuit Board --------------------------------- Insertion
Adjustment Procedures 1-30 Connection Diagram -------------------------------- Insertion
Maintenance of Laser Pickup~~ ....1_31 Exploded View of Assemblies and
Replacement of Laser Pickup -------------------------- 1-31 Application Points for Grease ----- Insertion
initial Operation of Mechanism .......................... 1-32 Parts List ..................................................... Insertion
No.20323
Mar. 1 992

Page 2

XL-M4OSB

XL-M407TN

-- Safety Precautions

J

1. The design of this product contains special hardware and many circuits and components

specially for safety purposes. For continued protection, no changes should be made to the
original design unless authorized in writing by the manufacturer. Replacement parts must
be identical to those used in the original circuits. Services should be performed by
qualified personnel only.

.Alterations of the design or circuitry of the product should not be made. Any design

alterations of the product should not be made. Any design alterations or additions will
void the manufacturer's warranty and will further relieve the manufacture of responsibility
for personal injury or property damage resulting therefrom.

.Many electrical and mechanical parts in the products have special safety-related

characteristics. These characteristics are often not evident from visual inspection nor can
the protection afforded by them necessarily be obtained by using replacement components
rated for higher voltage, wattage, etc. Replacement parts which have these special safety
characteristics are identified in the Parts List of Service Manual. Electrical components
having such features are identified by shading on the schematics and by (A) on the Parts
List in the Service Manual. The use of a substitute repalcement which does not have the
same safety characteristics as the recommended replacement parts shown in the Parts List of
Service Manual may create shock, fire, or other hazards.

.The leads in the products are routed and dressed with ties, clamps, tubings, barriers and

the like to be separated from live parts, high temperature parts, moving parts and/or sharp
edges for the prevention of electric shock and fire hazard. When service is required, the
original lead routing and dress should be observed, and it should be confirmed that they
have been returned to normal, after re-assembling.

. Leakage currnet check (Electrical shock hazard testing)

After re-assembling the product, always perform an isolation check on the exposed metal
parts of the product (antenna terminals, knobs, metal cabinet, screw heads, headphone jack,
contorl shafts, etc.) to be sure the product is safe to operate without danger of electrical
shock.

Do not use a line isolation transformer during this check.

0 Plug the AC line cord directly into the AC outlet. Using a "Leakage Current Tester",
measure the leakage current from each exposed metal parts of the cabinet, particularily
any exposed metal part having a return path to the chassis, to a known good earth
ground. Any leakage current must not exceed 0.5mA AC (r.m.s.).

0 Alternate check method
Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000
ohms per volt or more sensitivity in the following manner. Connect a 1,5000 10 W
resistor paralleled by a 0.15 ,uF AC-type capacitor between an exposed metal part and a
known good earth ground. Ac VOLTMETER

Measure the AC voltage across the resistor E (Having 1000

with the AC voltmeter. ohms/volts, .. ,
Move the resistor connection to each exposed a 0. ° m°ree""t"ty')
metal part, particularly any exposed metal part

having a return path to the chassis, and 0-15/AF AC TYPE

meausre the AC voltage across the resistor. -"- Place this
Now, reverse the plug in the AC outlet and w_ pmbe on
repeat each measurement. Any voltage 1500010W gagglegggtsed

measured must not exceed 0.75 V AC (r.m.s.).
This corresponds to 0.5 mA AC (r.m.s.). Good earth ground

$>

- Warning

, This equipment has been designed and manufactured to meet international safety standards.
. It is the legal responsibility of the repairer to ensure that these safety standards are

maintained.

. Repairs must be made in accordance with the relevant safety standards.
. It is essential that safety critical components are replaced by approved parts.
. If mains voltage selector is provided, check setting for local voltage.

1*2(No,20323)

Page 91

XL-M407TNJ

Accessories List

AX. Part Number Part Name Q'ty Description Areas
E30580-1840A instruction Book 1 C , EF , U
E30530-1841A Instruction Book 1 J
E30580-1875A Instruction Book 1 EN
BTv20047F Warranty Card 1 J
BT-20025K Warranty Card 1 C
BT-20108A Service Information Card 1 J
BT-ZOOMG Safety Instruction Sheet 1 J
BT20071A Service Center List 1 C

A QMP1E00-183 Power Cord 1 LC

A QMP39FO-183 Power Cord 1 EN,EF,G

A QMP7530-183 Power Cord ~ 1 u
EWP3OZ-013K Signal Card 1
EWP805-009K 1P Plug Cord 1
85497-022 Caution Sheet 1 220V U

A E04056 Siemens Plug 1 U
E26072-005 Magazine 1
RM-SX407U Remote Controller 1

RM-SX521 BATC Battery Cover 1
UMJNJvZPSA Battery 1 Except J ,C
R03BPA»ZSTSA Battery 1 J , C
E66416-003 Envelope 1 J
E3001 96-01 OB Envelope 1 J, 35
E300196-010 Envelope 1 Except J, BS
800196-0328 Envelope 1 J, BS
E300196-032 Envelope 1 Except J, BS

The Marks for Designated Aears
the USA, EF
0 ~-Canada U-
EN ~~~~~~~~~~~~~~~ Scandinavia

Universal Type

3- 1601020323)

Continental Europe

No mark indicates all areas.

A Safety Parts
