Jvc XLF 252 BK Service Manual

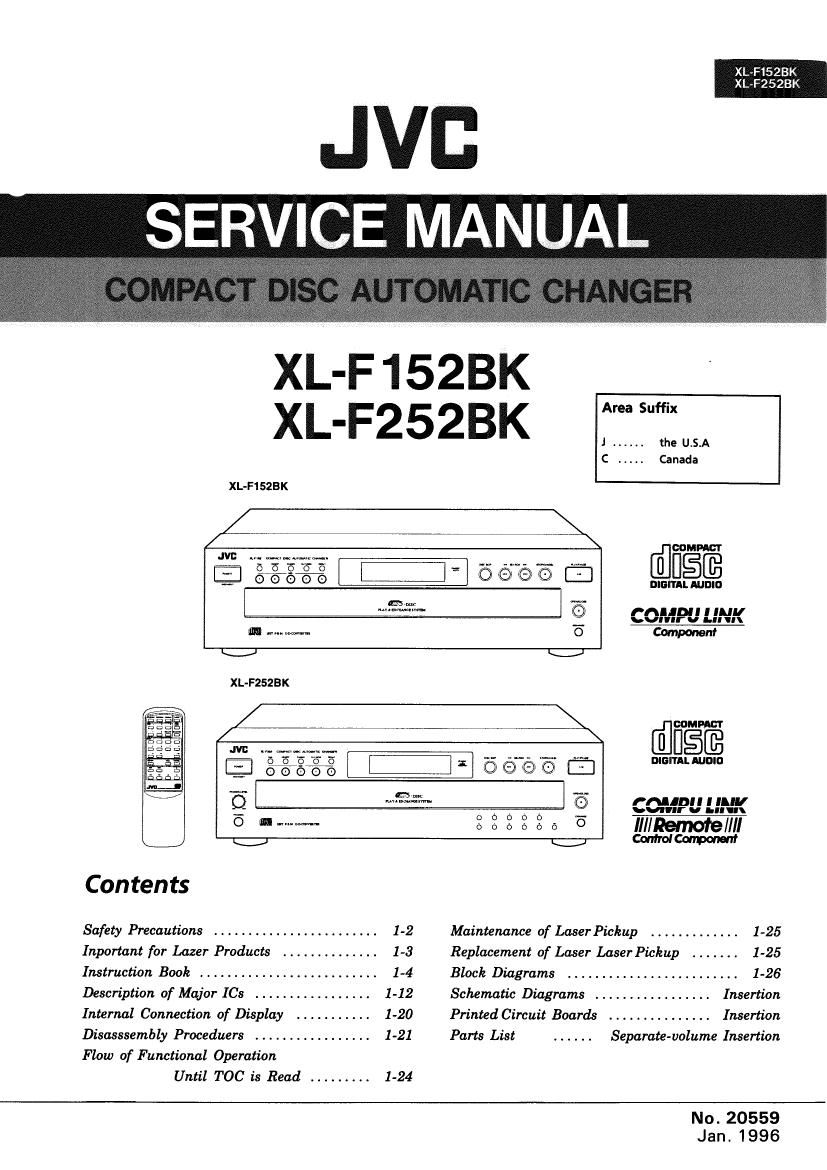

Page 1

XLF1SZBK
XL FZSZBK

.JVB
SERVICE MANUL.

XL-F 1523K
XL-F2523K THMZW

C ..... Canada
XL-F152BK
c @fiflflm
6 6 _ 6 6 =- '" ,'" T M
EWEQQQE fig
53%. "'
W, W 0 Component
K.) v

[filfiflfi
E] DIBIIALAUDID
767 599.494: ::.-.;-<
5 lIIIRemote/III
CadrolCarponant
Contents
Safety Precautions ........................ 1-2 Maintenance of Laser Pickup ............. 1-25
Inportant for Lazer Products .............. 1-3 Replacement of Laser Laser Pickup ....... 1-25
Instruction Book .......................... 14 Block Diagrams ......................... 1-26
Description of Major ICs ................. 1-12 Schematic Diagrams ................. Insertion
Internal Connection of Display ........... 1-20 Printed Circuit Boards ............... Insertion
Disasssembly Proceduers ................. 1-21 Parts List ...... Separate-volume Insertion
Flow of Functional Operation
Until TOC is Read ......... 1-24
No.20559

Jan. 1996

Page 2

XL-F 1 523K
XL-F2528K

-Safety Precautions

1.The design of this product contains special hardware and many circuits and components
specially for safety purposes. For continued protection, no changes should be made to the
original design unless authorized in writing by the manufacturer. Replacement parts must
be identical to those used in the original circuits. Services should be performed by
qualified personnel only.

2. Alterations of the design or circuitry of the product should not be made. Any design
alterations of the product should not be made. Any design alterations or additions will
void the manufacturer's warranty and will further relieve the manufacture of responsibility
for personal injury or property damage resulting therefrom.

3. Many electrical and mechanical parts in the products have special safety-related
characteristics. These characteristics are often not evident from visual inspection nor can
the protection afforded by them necessarily be obtained by using replacement components
rated for higher voltage, wattage, etc. Replacement parts which have these special safety
characteristics are identified in the Parts List of Service Manual. Electrical components
having such features are identified by shading on the schematics and by (A) on the Parts
List in the Service Manual. The use of a substitute repalcement which does not have the
same safety characteristics as the recommended replacement parts shown in the Parts List of
Service Manual may create shock, fire, or other hazards.

4. The leads in the products are routed and dressed with ties, clamps, tubings, barriers and
the like to be separated from live parts, high temperature parts, moving parts and/or sharp
edges for the prevention of electric shock and fire hazard. When service is required, the
original lead routing and dress should be observed, and it should be confirmed that they
have been returned to normal, after re-assembling.

5. Leakage currnet check (Electrical shock hazard testing)
After re-assembling the product, always perform an isolation check on the exposed metal
parts of the product (antenna terminals, knobs, metal cabinet, screw heads, headphone jack,
control shafts, etc.) to be sure the product is safe to operate without danger of electrical
shock.
Do not use a line isolation transformer during this check.

0 Plug the AC line cord directly into the AC outlet. Using a "Leakage Current Tester",
measure the leakage current from each exposed metal parts of the cabinet, particularly
any exposed metal part having a return path to the chassis, to a known good earth
ground. Any leakage current must not exceed 0.5mA AC (r.m.s.).

0 Alternate check method
Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000
ohms per volt or more sensitivity in the following manner. Connect a 1,5000 10 W
resistor paralleled by a 0.15 11F AC-type capacitor between an exposed metal part and a
known good earth ground.

AC VOLTMETER

Measure the AC voltage across the resistor .
with the AC voltmeter. E amt/130g? 0
Move the resistor connection to each exposed 3 °_ ° m°'°eiiViW-)
metal part, particularly any exposed metal part _
having a return path to the chassis, and 9.1511; AC 1'va
meausre the AC voltage across the resistor. --||-
Now. reverse the plug in the AC outlet and a: 5
repeat each measurement. Any voltage ""v 2:312:05...
measured must not exceed 0.75VAC (r.m.s.). 50091 W metal part.
This corresponds to 0.5 mA AC (r.m.s.). Good earth ground

-Warnrng

1. This equipment has been designed and manufactured to meet international safety standards.

2. It is the legal responsibility of the repairer to ensure that these safety standards are
maintained.

3. Repairs must be made in accordance with the relevant safety standards.
4. It is essential that safety critical components are replaced by approved parts.
5. if mains voltage selector is provided, check setting for local voltage.

1-2

Page 23

XL-F1SZBK

XL-FZSZBK
Disassemble of the CD mechanism assembly
I Removing the Pickup I Removing the Spindle motor
1. Remove the CD mech. assembly. 1. Remove the CD mech. assembly.
2. Release the shaft to remove the pickup. 2. Remove the turntable, and remove the 2

Sh ft 1 screws ® retaining the spindle motor.
a .5 Oppe: ______ 3. Remove the screw retaining the spindle and

a W 0 mm Cg feed motor circuit board and unsolder it.
Table

L
Shaft _ L

.. _> Ci)-

I
®

Turntable Spindle motor
retaining screws (E

Fig 10

g) [g] a G I After inserting the turntable, bond the

motor shaft and turntable together (at the
section marked by an arrow in fig 120n the

Fig 9 left below).
I Spindle motor installation
1. Tighten the 2 screws to the same torque. I
2. Fasten the spindle and feed motor P.C.board I __m__
with the screw and solder.
3. Install the tumtable.When installing ,press I- J
straight down at the center of the turntable CORRECT

until the distance from the surface of the

mech. base to the turntable is exactly INCORRECT
19.4:t0.1mm.
l .I
1 /

m 912
H l ' _ l I Use LOCKTITE #460 bonding agent, and
l. J 9'. apply as little as possible.
*°"""" Take care not to allow any excess bonding

agent to get onto the turntable .

Be extremely careful not to allow bonding
agent to adhere to the motor bearing (the
section marked by an allow in fig 12 on the
right).

'- '-' Fig 11

1-23
