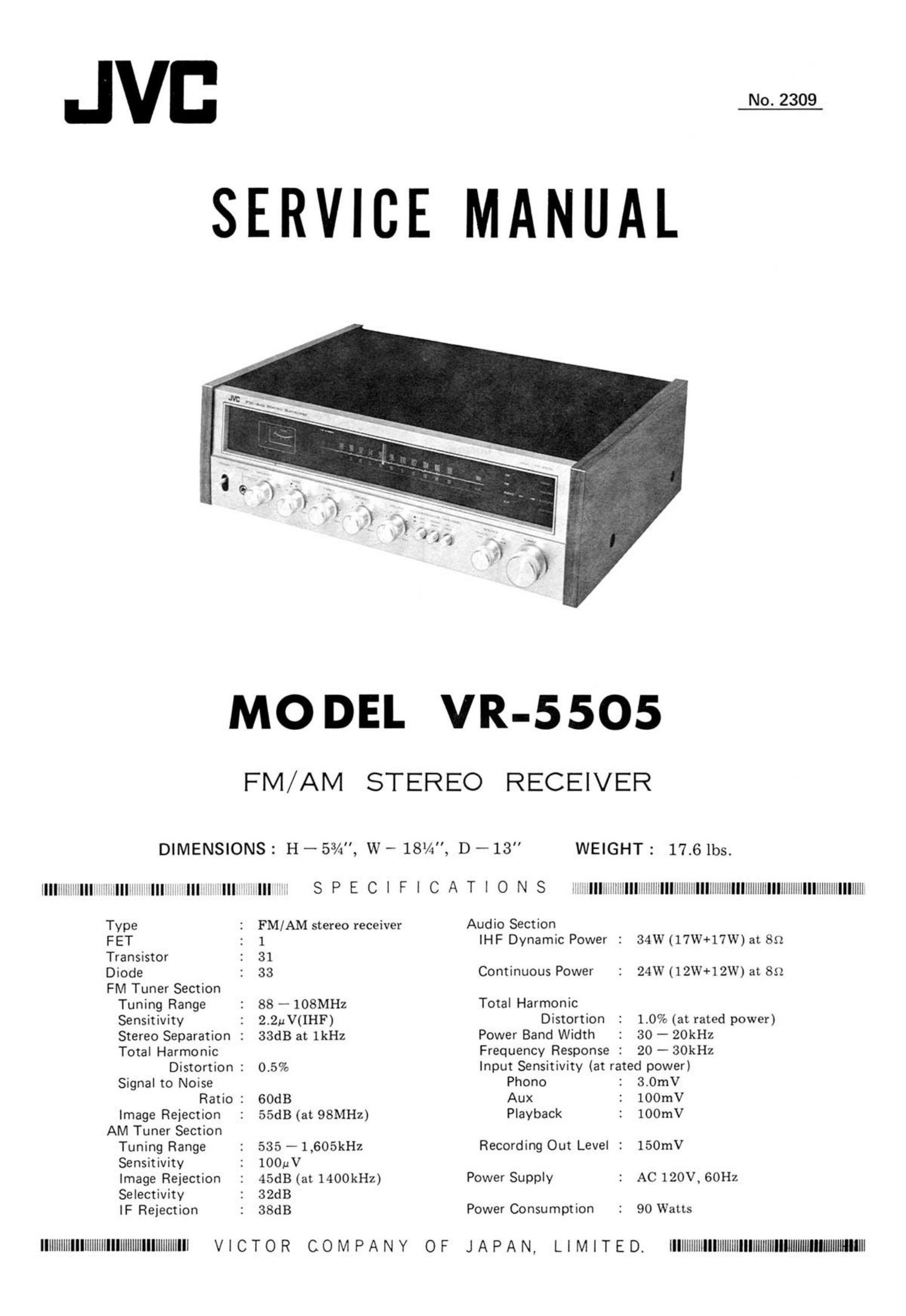

Jvc VR 5505 Service Manual
This is the 23 pages manual for Jvc VR 5505 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc VR 5505 Service Manual (Ocr-read)
Page 2
DISASSEMBLY INSTRUCTIONS
I TO REMOVE TOP COVER
Remove four screws from both sides of top cover, and
remove cover in the direction of top (see Fig. 1).
ITO REMOVE BOTTOM BOARD
Remove nine screws from bottom board. (Four screws
fixes feet and bottom board to chassis, and others bottom
board to chassis.)
Remove bottom board from chassis (see Fig. 2). / ,
,fl'fl
13:, .7
I a uni-N -\..______' ..... \
®®®®®;g & ' m
\i
ITO REMOVE FRONT PANEL ! é g A. l
. g . I
|
1. Remove top cover. g $
2. Remove following knobs. ? I
(Speaker select, Bass, Treble, Balance, Volume,
Source and Tuning) 9
3. Remove five screws as shown in Fig. 3, and remove a
front panel from chassis, with care to avoid damage.
VR-5505 E 2 _
