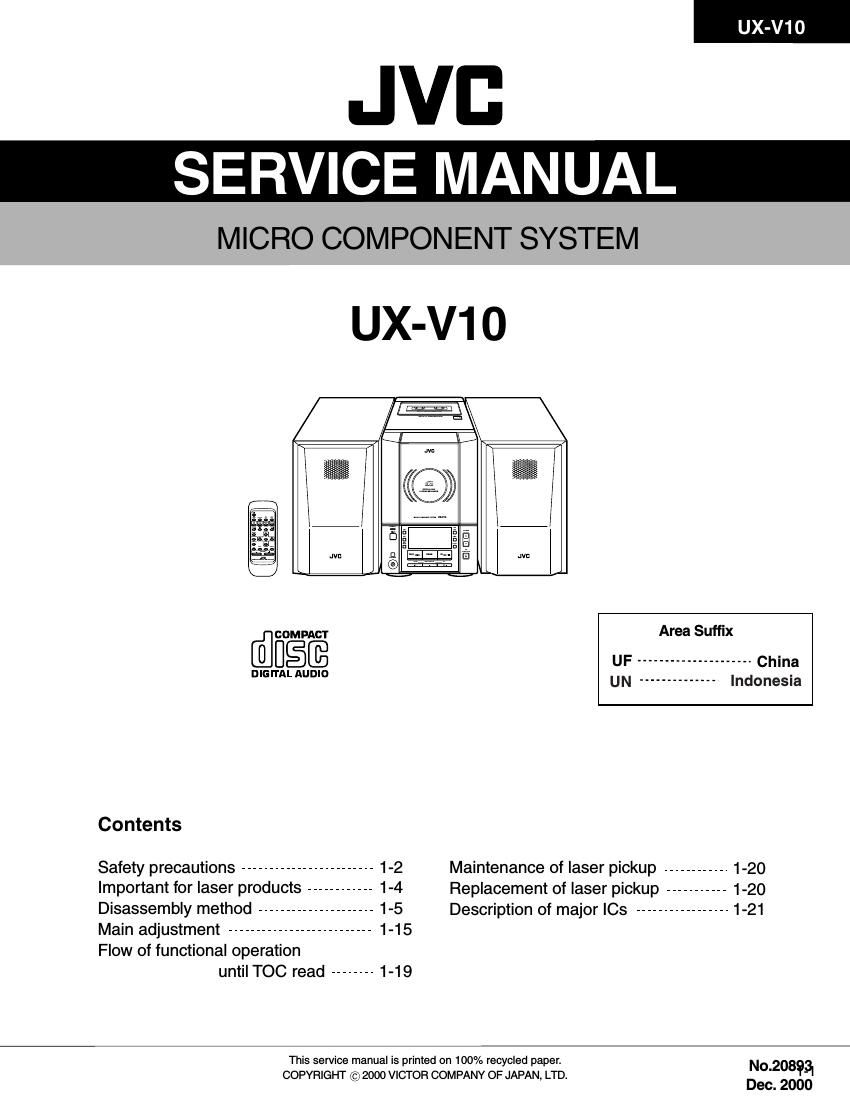

Jvc UXV 10 Service Manual
This is the 68 pages manual for Jvc UXV 10 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc UXV 10 Service Manual (Ocr-read)
Page 1
1-2 UX-V10 Safety Precautions 1. This design of this product contains special hardware and many circuits and components specially for safety purposes. For continued protection, no changes should be made to the original design unless authorized in writing by the manufacturer. Replacement parts must be identical to those used in the original circuits. Services should be performed by qualified personnel only. 2. Alterations of the design or circuitry of the product should not be made. Any design alterations of the product should not be made. Any design alterations or additions will void the manufacturer`s warranty and will further relieve the manufacture of responsibility for personal injury or property damage resulting therefrom. 3. Many electrical and mechanical parts in the products have special safety-related characteristics. These characteristics are often not evident from visual inspection nor can the protection afforded by them necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in the Parts List of Service Manual. Electrical components having such features are identified by shading on the schematics and by ( ) on the Parts List in the Service Manual. The use of a substitute replacement which does not have the same safety characteristics as the recommended replacement parts shown in the Parts List of Service Manual may create shock, fire, or other hazards. 4. The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the like to be separated from live parts, high temperature parts, moving parts and/or sharp edges for the prevention of electric shock and fire hazard. When service is required, the original lead routing and dress should be observed, and it should be confirmed that they have been returned to normal, after re-assembling. 5. Leakage currnet check (Electrical shock hazard testing) After re-assembling the product, always perform an isolation check on the exposed metal parts of the product (antenna terminals, knobs, metal cabinet, screw heads, headphone jack, control shafts, etc.) to be sure the product is safe to operate without danger of electrical shock. Do not use a line isolation transformer during this check. Plug the AC line cord directly into the AC outlet. Using a "Leakage Current Tester", measure the leakage current from each exposed metal parts of the cabinet , particularly any exposed metal part having a return path to the chassis, to a known good earth ground. Any leakage current must not exceed 0.5mA AC (r.m.s.) Alternate check method Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000 ohms per volt or more sensitivity in the following manner. Connect a 1,500 10W resistor paralleled by a 0.15 F AC-type capacitor between an exposed metal part and a known good earth ground. Measure the AC voltage across the resistor with the AC voltmeter. Move the resistor connection to eachexposed metal part, particularly any exposed metal part having a return path to the chassis, and meausre the AC voltage across the resistor. Now, reverse the plug in the AC outlet and repeat each measurement. voltage measured Any must not exceed 0.75 V AC (r.m.s.). This corresponds to 0.5 mA AC (r.m.s.). Warning 1. This equipment has been designed and manufactured to meet international safety standards. 2. It is the legal responsibility of the repairer to ensure that these safety standards are maintained. 3. Repairs must be made in accordance with the relevant safety standards. 4. It is essential that safety critical components are replaced by approved parts. 5. If mains voltage selector is provided, check setting for local voltage. Good earth groundPlace this probe on each exposed metal part. AC VOLTMETER (Having 1000 ohms/volts, or more sensitivity) 1500 10W 0.15 F AC TYPE ! CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of preforming repair of this system.
Page 2
1-3 UX-V10 Warning 1. Service should be performed by qualified personnel only. 2. This equipment has been designed and manufactured to meet international safety standards. 3. It is the legal responsibility of the repairer to ensure that these safety standards are maintained. 4. Repairs must be made in accordance with the relevant safety standards. 5. It is essential that safety critical components are replaced by approved parts. 6. If mains voltage selector is provided, check setting for local voltage. Safety precautions 1. This design of this product contains special hardware and many circuits and components specially for safety purposes. For continued protection, no changes should be made to the original design unless authorized in writing by the manufacturer. Replacement parts must be identical to those used in the original circuits. 2. Any unauthorised design alterations or additions will void the manufacturer's guarantee ; furthermore the manufacturer cannot accept responsibility for personal injury or property damage resulting therefrom. 3. Essential safety critical components are identified by ( ) on the Parts List and by shading on the schematics, and must never be replaced by parts other than those listed in the manual. Please note however that many electrical and mechanical parts in the product have special safety related characteristics. These characteristics are often not evident from visual inspection. Parts other than specified by the manufacturer may not have the same safety characteristics as the recommended replacement parts shown in the Parts List of the Service Manual and may create shock, fire, or other hazards. 4. The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the like to be separated from live parts, high temperature parts, moving parts and/or sharp edges for the prevention of electric shock and fire hazard. When service is required, the original lead routing and dress should be observed, and it should be confirmed that they have been returned to normal, after re-assembling. ! CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of preforming repair of this system. (U.K only)
Page 61
UX-V10 3-15 Item Parts number Parts nameArea Electrical parts list Remarks Block No. 03 A CN601QGF1201F3-13CONNECTOR CN602QGF1201F3-10CONNECTOR CN603QGF1016F1-16 FFC/FPC CONNECN605 QGA2001C1-06 6P PLUG ASSY C6001 QEKC0JM-107Z E CAPACITOR 100MF 20% 6.3V C6002 QEK41CM-106 E CAPACITOR 10MF 20% 16V C6003 NDC21HJ-3R5X C CAPACITOR C6005 NCS21HJ-331X C CAPACITOR C6007 NCB21HK-222X C CAPACITORC6008 QEKC1HM-105Z E.CAPACITOR 1.0MF 20% 50V C6009 NCS21HJ-101X C CAPACITOR C6010 NCB21HK-273X C CAPACITOR C6011 NCB21HK-222X C CAPACITOR C6012 NCB21HK-103X C CAPACITOR C6014 NCB21EK-104X C CAPACITOR C6015 NCB21HK-223X C CAPACITOR C6016 NCB21HK-223X C CAPACITOR C6017 NCB21HK-223X C CAPACITOR C6018 NCB21HK-222X C CAPACITOR C6019 NCS21HJ-271X C CAPACITOR C6020 NCS21HJ-181X C CAPACITOR C6021 NCS21HJ-821X C CAPACITOR C6022 QEKC0JM-476Z E.CAPACITOR 47MF 20% 6.3V C6023 NCB21EK-104X C CAPACITORC6028 NCB21EK-473X C CAPACITOR C6029 QEKC0JM-107Z E CAPACITOR 100MF 20% 6.3V C6031 EEKC1AM-227ZJC E CAPACITOR 220MF 20% 10V C6032 QEKC0JM-107Z E CAPACITOR 100MF 20% 6.3V C6051 NDC21HJ-120X C CAPACITOR C6052 NDC21HJ-150X C CAPACITORC6053 NCB21HK-223X C CAPACITOR C6055 NCB21EK-473X C CAPACITOR C6058 NCS21HJ-6R0X C CAPACITORC6061 NCS21HJ-471X C CAPACITOR C6062 NCB21HK-223X C CAPACITOR C6063 NCB21HK-223X C CAPACITOR C6064 NCB21HK-223X C CAPACITOR C6065 NCB21CK-334X C CAPACITOR C6071 NCB21HK-222X C CAPACITOR C6072 NCB21HK-222X C CAPACITOR C6073 EEKC1AM-227ZJC E CAPACITOR 220MF 20% 10V C6074 EEKC1AM-227ZJC E CAPACITOR C6075 NCB21HK-102X C CAPACITOR C6076 NCB21HK-102X C CAPACITOR C6077 NCB21HK-223X C CAPACITOR C6080 EEKC1AM-227ZJC E CAPACITOR 220MF 20% 10V C6081 EEKC1AM-227ZJC E CAPACITOR C6083 NCB21HK-223X C CAPACITORC6089 NCB21HK-472X C CAPACITOR C6090 NCB21HK-153X C CAPACITOR C6091QEQF1HM-105Z NP E CAPACITOR 1.0MF 20% 50V C6092QEQF1HM-225Z E CAPACITOR 2.2MF 20% 50V C6094 NCB21HK-104X C CAPACITOR C6096 NCS21HJ-391X C CAPACITORC6097 NCS21HJ-391X C CAPACITOR C6098 NCS21HJ-391X C CAPACITOR C6099 NCS21HJ-391X C CAPACITOR C6154 NCS21HJ-151X C CAPACITOR C6156 NCS21HJ-151X C CAPACITOR C6157 NCS21HJ-151X C CAPACITOR C6158 NCS21HJ-151X C CAPACITOR D6061 1SS355-XDIODE D6062 1SS355-XDIODE D6063 1SS355-XDIODE IC601 AN8806SB-W IC IC602 LA6541-X ICIC603 MN35510AL IC K6051QQR0621-001ZFERRITE BEADS Q60012SA1037AK/R/-XTRANSISTORQ6031 2SA952/LK/-TTRANSISTOR R6001 NRSA02J-123X MG RESISTOR R6002 NRSA02J-225X MG RESISTORR6003 NRSA02J-102X MG RESISTOR R6005 NRSA02J-274X MG RESISTOR R6006 NRSA02J-473X MG RESISTOR R6007 NRSA02J-273X MG RESISTOR R6008 NRSA02J-564X MG RESISTOR R6009 NRSA02J-563X MG RESISTOR R6010 NRSA02J-104X MG RESISTOR R6012 NRSA02J-103X MG RESISTOR R6013 NRSA02J-121X MG RESISTOR R6014 NRSA02J-100X MG RESISTOR R6015 NRSA02J-120X MG RESISTOR R6016 NRSA02J-910X MG RESISTOR R6021 NRSA02J-101X MG RESISTOR R6022 NRSA02J-101X MG RESISTOR R6023 NRSA02J-101X MG RESISTORR6024 NRSA02J-154X MG RESISTOR R6025 NRSA02J-154X MG RESISTOR R6026 NRSA02J-393X MG RESISTORR6027 NRSA02J-393X MG RESISTOR R6028 NRSA02J-393X MG RESISTOR R6029 NRSA02J-393X MG RESISTORR6031 NRSA02J-0R0X MG RESISTOR R6032 NRSA02J-0R0X MG RESISTOR R6041 NRSA02J-333X MG RESISTORR6042 NRSA02J-472X MG RESISTOR R6043 NRSA02J-392X MG RESISTOR R6044 NRSA02J-683X MG RESISTOR R6045 NRSA02J-433X MG RESISTOR R6046 NRSA02J-0R0X MG RESISTOR R6047 NRSA02J-332X MG RESISTOR R6048 NRSA02J-222X MG RESISTOR R6049 NRSA02J-152X MG RESISTOR R6050 NRSA02J-332X MG RESISTOR R6051 NRSA02J-102X MG RESISTOR R6052 NRSA02J-102X MG RESISTOR R6053 NRSA02J-102X MG RESISTOR R6054 NRSA02J-102X MG RESISTOR R6055 NRSA02J-102X MG RESISTOR R6056 NRSA02J-0R0X MG RESISTORR6057 NRSA02J-0R0X MG RESISTOR R6058 NRSA02J-0R0X MG RESISTOR R6059 NRSA02J-471X MG RESISTORR6060 NRSA02J-471X MG RESISTOR R6061 NRSA02J-104X MG RESISTOR R6063 NRSA02J-124X MG RESISTORR6064 NRSA02J-681X MG RESISTOR R6066 NRSA02J-220X MG RESISTOR R6067 NRSA02J-220X MG RESISTOR R6068 NRSA02J-220X MG RESISTOR R6069 NRSA02J-155X MG RESISTOR R6071 NRSA02J-102X MG RESISTOR R6072 NRSA02J-102X MG RESISTOR R6076 NRSA02J-0R0X MG RESISTOR R6080 NRSA02J-0R0X MG RESISTOR (CD board) Item Parts number Parts nameArea Remarks A
