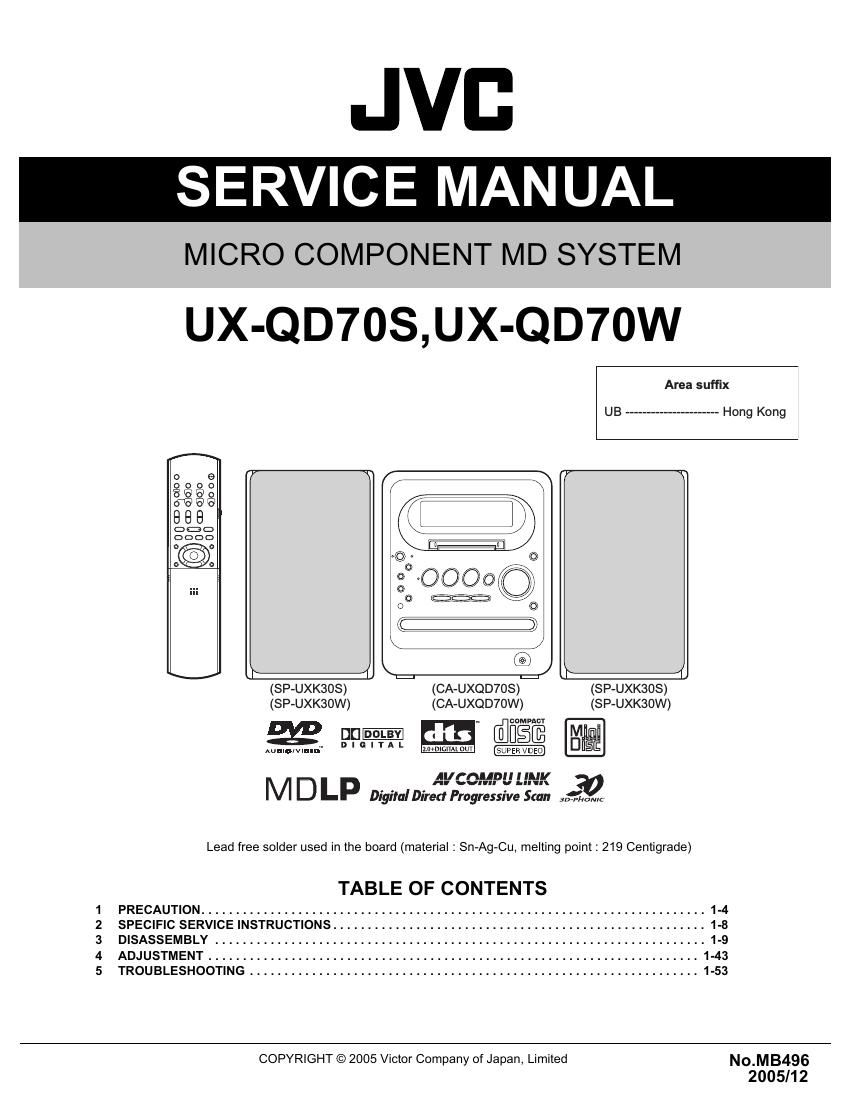

Page 1
JVC
SERVICE MANUAL
MICRO COMPONENT MD SYSTEM
UX-QD7OS,UX-QD7OW
Area suffix
UB ---------------------- Hong Kong
F
(SP-UXK3OS) (CAUXQD7OS) (SP-UXKSOS)
(SP~UXK30W) (CA-UXQD7OW) (SP-UXK3OW)
« COMPACT
y un- [flflgfi MIIruu
wmomnso D ' G ' 1 A '- [WPEWDEU DESI:
AVCOMPU LINK v
M D L P Digital Direct Progressive Scan 3.5mm
Lead free solder used in the board (material : Sn-Ag-Cu, melting point: 219 Centigrade)
TABLE OF CONTENTS
1 PRECAUTION ......................................................................... 1-4
2 SPECIFIC SERVICE INSTRUCTIONS ...................................................... 1-8
3 DISASSEMBLY ....................................................................... 1-9
4 ADJUSTMENT .................................................................... 1-43
5 TROUBLESHOOTING ................................................................. 1-53
COPYRIGHT © 2005 Victor Company of Japan, Limited No_MB496
2005/12
