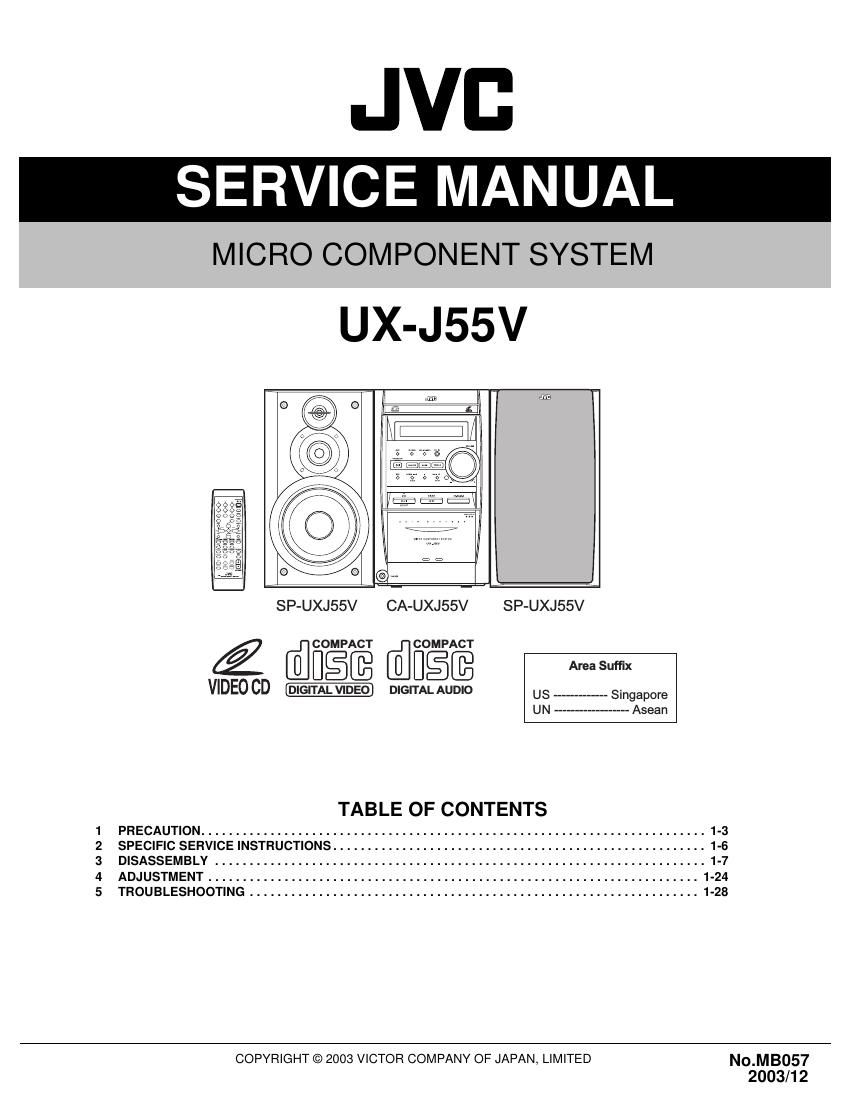

Page 1

JVC
SERVICE MANUAL

MICRO COMPONENT SYSTEM
UX-J55V

SP-UXJ55V CA-UXJ55V SP-UXJ55V

COMPACT COMPACT
éflfl§@ [filU§@
VIDEO CD- _IGITAL VIDEO DIGITAL AUDIO US Singapore
UN «-----------<-~- Asean

TABLE OF CONTENTS

1 PRECAUTION ......................................................................... 1-3
2 SPECIFIC SERVICE INSTRUCTIONS ...................................................... 1-5
3 DISASSEMBLY ....................................................................... 1-7
4 ADJUSTMENT ....................................................................... 1-24
5 TROUBLESHOOTING ................................................................. 1-28
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LIMITED No.MBO57

2003/12

Page 2

SPECIFICATION

Amplifier Output Power 120 W (60 W + 60 W) at 6 £2 (10% THD)
Audio input sensitivity AUX 400 mV/48 k9
/|mpedance (at1 kHz)
Speakers/Impedance 6 £2 - 16 9
Tuner FM tuning range 87.50 MHz - 108.00 MHz
AM tuning range AM 10 kHz intervals 530 kHz - 1 710 kHz
AM 9 kHz intervals 531 kHz - 1 710 kHz
CD player Dynamic range 85 dB
Signal-to-noise ratio 90 dB
Wow and flutter Immeasurable
Cassette deck Frequency response Normal (type I) 60 Hz - 14 000 Hz
Wow and flutter 0.15% (WRMS)
Speaker Speaker units Woofer 12.0 cm cone X 1
SP'UXJSSV Midrange 4.0 cm cone ><1
Tweeter 2.0 cm dome X 1
Impedance 6 51
Dimensions (approx.) 160 mm X 285 mm X 181.5 mm (W/H/D)
Mass (approx.) 2.4 kg each
General Power requirement AC 110 V/ 127 V/ 220 V/ 230 V - 240 V , adjustable with the voltage selector, 50 Hz/60 Hz

Power consumption

130 W (at operation)

3.4 W (on standby)

Dimensions (approx.)

490 mm X 286 mm X 323.3 mm (W/H/D)

Mass (approx.)

10.3 kg

Design and specifications are subject to change without notice.

1-2 (N0.MB057)
