Page 1

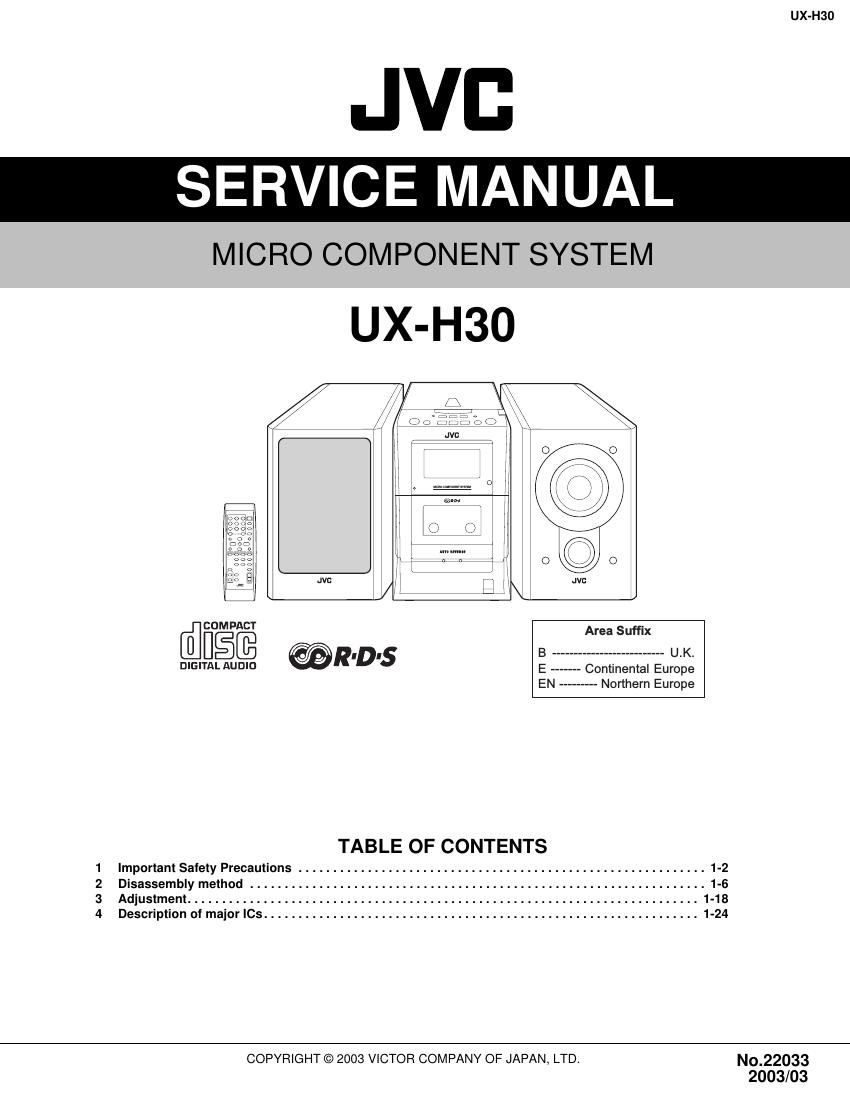

UX-H30

JVC

SERVICE MANUAL

MICRO COMPONENT SYSTEM

UX-H30

COMPACT Area Suffix
USE B ..........................
DIGITAL AUDIO E -- Continental Europe
EN ~-~---- Northern Europe

TABLE OF CONTENTS
1 Important Safety Precautions ........................................................... 1-2
2 Disassembly method .................................................................. 1-6
3 Adjustment .......................................................................... 1-18
4 Description of major le ............................................................... 1-24
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LTD. No_22033

2003/03

Page 2

UX-H3O

SECTION 1
Important Safety Precautions

1.1 Safety Precautions

(1) This design of this product contains special hardware and
many circuits and components specially for safety purposes.
For continued protection, no changes should be made to the
original design unless authorized in writing by the man-
ufacturer. Replacement parts must be identical to those
used in the original circuits. Services should be per-
formed by qualified personnel only.

(2) Alterations of the design or circuitry of the product should
not be made. Any design alterations of the product should
not be made. Any design alterations or additions will void
the manufacturers warranty and will further relieve the
manufacture of responsibility for personal injury or property
damage resulting therefrom.

(3) Many electrical and mechanical parts in the products have
special safety-related characteristics. These characteris-
tics are often not evident from visual inspection nor can the
protection afforded by them necessarily be obtained by us-
ing replacement components rated for higher voltage, watt-
age, etc. Replacement parts which have these special safety
characteristics are identified in the Parts List of Service Manu-
al. Electrical components having such features are iden-
tified by shading on the schematics and by (A) on the
Parts List in the Service Manual. The use of a substitute re-
placement which does not have the same safety character-
istics as the recommended replacement parts shown in the
Parts List of Service Manual may create shock, fire, or oth-
er hazards.

(4) The leads in the products are routed and dressed with ties,
clamps, tubings, barriers and the like to be separated from
live parts, high temperature parts, moving parts and/or
sharp edges for the prevention of electric shock and fire
hazard. When service is required, the original lead routing
and dress should be observed, and it should be confirmed
that they have been returned to normal, after reassembling.

(5) Leakage shock hazard testing)
After reassembling the product, always perform an isolation
check on the exposed metal parts of the product (antenna
terminals, knobs, metal cabinet, screw heads, headphone
jack, control shafts, etc.) to be sure the product is safe to
operate without danger of electrical shock.
Do not use a line isolation transformer during this check.

- Plug the AC line cord directly into the AC outlet. Using a
Leakage Current Tester", measure the leakage current
from each exposed metal parts of the cabinet, particular-
ly any exposed metal part having a return path to the
chassis, to a known good earth ground. Any leakage cur-
rent must not exceed 0.5mA AC (r.m.s.).

- Alternate check method
Plug the AC line cord directly into the AC outlet. Use an AC
voltmeter having, 1,000 ohms per volt or more sensitivity in
the following manner. Connect a 1,500 ohm 10W resistor
paralleled by a 0.15 uF AC-type capacitor between an

1-2 (No.22033)

exposed metal part and a known good earth ground.
Measure the AC voltage across the resistor with the AC
voltmeter.

Move the resistor connection to each exposed metal part,
particularly any exposed metal part having a return path to
the chassis, and measure the AC voltage across the resistor.
Now, reverse the plug in the AC outlet and repeat each
measurement. Voltage measured any must not exceed 0.75
V AC (r.m.s.). This corresponds to 0.5 mA AC (r.m.s.).

a AC VOLTM ETER

(Having 1000
c

ohms/volts,
0.1 51.1 F AC TYPE

or more sensitivity)

-| l-l Place this
_ probe on
W ' V ' each exposed
1500 Q 10W metal part.

Good earth ground
1.2 Warning

(1) This equipment has been designed and manufactured to
meet international safety standards.

(2) It is the legal responsibility of the repairer to ensure that
these safety standards are maintained.

(3) Repairs must be made in accordance with the relevant
safety standards.

(4) It is essential that safety critical components are replaced
by approved parts.

(5) if mains voltage selector is provided, check setting for local
voltage.

1.3 Caution
Burrs formed during molding may be left over on some parts
of the chassis.
Therefore, pay attention to such burrs in the case of pre-
forming repair of this system.
1.4 Critical parts for safety

In regard with component parts appearing on the silk-screen
printed side (parts side) of the PWB diagrams, the parts that are
printed over with black such as the resistor ( - ), diode ( h)
and ICP ( Q ) or identified by the " A " mark nearby are critical
for safety.

When replacing them, be sure to use the parts of the same type
and rating as specified by the manufacturer. (Except the JC version)

Page 32

UX-H3O

4.9 LA6541-X (IC801) : Servo driver
- Pin layout & Block diagram

Vcc Vref Vin4 Vg4 V08 V07 Gnd V06 V05 V93 Vin3 Cd R-es
Wt lfil El WI W Wt l-l lfil W lfil lfil Wt lfil
21:1 W 11
m
l7 _ + fl ° -l
:31? 311; it; :1? RESET
ls-fiittel 3;; 3;; :9? Regulator
11k P 4 11k 4
ohm ohm
l1_l lgl lit |i| lit lit l-l ill til til Ml lul lEl
Vcc Mute Vin1 Vg1 V01 V02 and V03 V04 V92 Vin2 Reg Reg
out In
- Pin function
Pin No. Symbol Description
1 Vcc Power supply (Shorted to pin 24)
2 Mute All BTL amplifier outputs ON/OFF
3 Wm BTL AMP 1 input pin
4 Vg1 BTL AMP 1 input pin (For gain adjustment)
5 V01 BTL AMP 1 input pin (Non inverting side)
6 V02 BTL AMP 1 input pin (Inverting side)
7 V03 BTL AMP 2 input pin (Inverting side)
8 V04 BTL AMP 2 input pin (Non inverting side)
9 Vg2 BTL AMP 2 input pin (For gain adjustment)
10 Vin2 BTL AMP 2 input pin
11 Reg Out External transistor collector (PNP) connection. 5V power supply output
12 Reg In External transistor (PNP) base connection
13 R-es Reset output
14 Cd Reset output delay time setting (Capacitor connected externally)
15 Vin3 BTL AMP 3 input pin
16 Vg3 BTL AMP 3 input pin (For gain adjustment)
17 V05 BTL AMP 3 output pin (Non inverting side)
18 V06 BTL AMP 3 output pin (Inverting side)
19 V07 BTL AMP 4 output pin (Inverting side)
20 V08 BTL AMP 4 output pin (Non inverting side)
21 Vg4 BTL AMP 4 output pin (For gain adjustment)
22 Vin4 BTL AMP 4 output pin
23 Vret Level shift circuit's reference voltage application
24 Vcc Power supply (Shorted to pin 1)

1»32 (No.22033)
