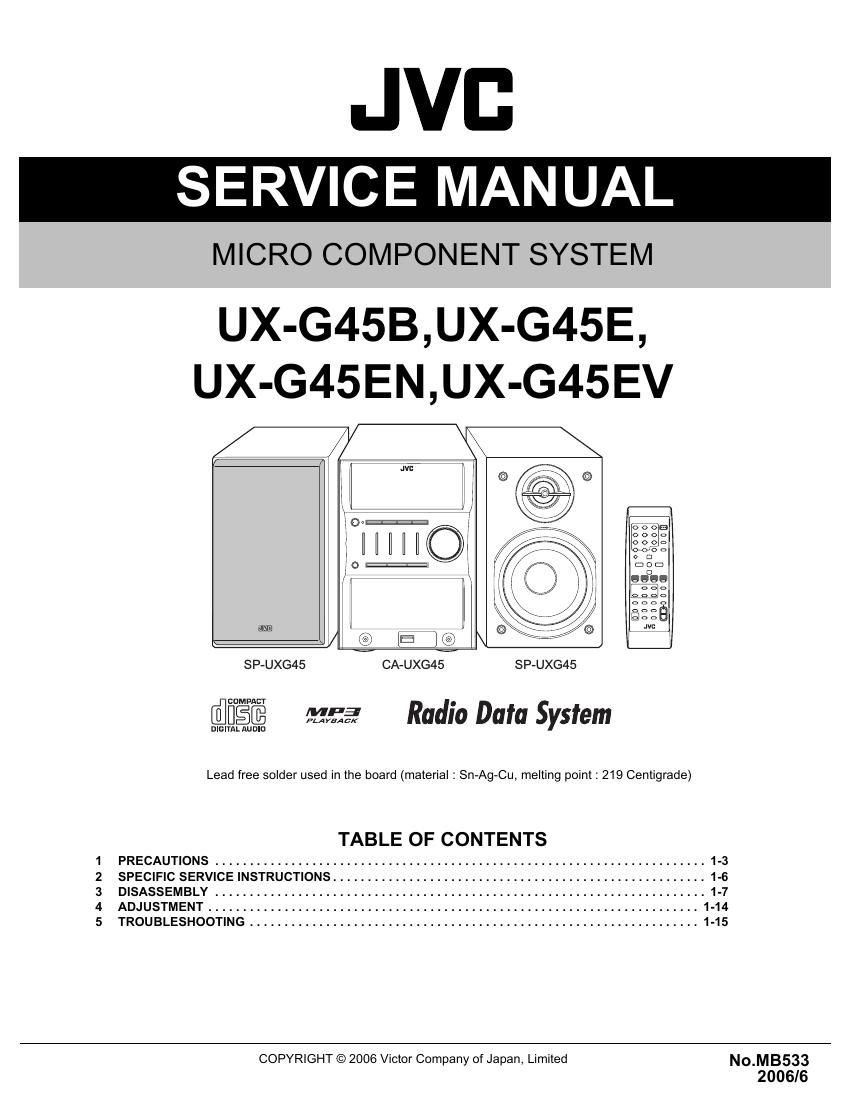

Page 1
JVC
SERVICE MANUAL
MICRO COMPONENT SYSTEM
UX-G45B,UX-G45E,
UX-G45EN,UX-G45EV
JV: I
l l
\ I
mo
l W
IE I
SP-UXG45 CAUXG45 SP-UXG45
COMPACT
mp3 Radio Data System
DIGITAL AuDIu
Lead free solder used in the board (material : Sn-Ag-Cu, melting point: 219 Centigrade)
TABLE OF CONTENTS
1 PRECAUTIONS ....................................................................... 1-3
2 SPECIFIC SERVICE INSTRUCTIONS ...................................................... 1-6
3 DISASSEMBLY ....................................................................... 1-7
4 ADJUSTMENT ....................................................................... 1-14
5 TROUBLESHOOTING ................................................................. 1-15
COPYRIGHT © 2006 Victor Company of Japan, Limited No_MB§33
2006/6
Page 2
SPECIFICATION
Amplifier section
Output Power
80 W per channel, mint RMS, driven into 6 Q at 1 kHz with no more
than 10% total harmonic distortion (lEC268-3)
Speakers/Impedance
652-169
Audio Input AUX LEVEL1 : 150 mV/47 k0
(Input sensitivity/Impedance) LEVEL2 : 500 mV/47 k9
USB Vert1.1
Tuner section
FM tuning range
8750 MHZ - 108.00 MHZ
AM (MW) tuning range
522 kHz - 1 629 kHZ
CD player section
Dynamic range
85 dB
Signal-to-noise ratio
85 dB
Wow and flutter
Immeasurable
General Power requirement AC 230 V, 50 Hz
Power consumption 145 W (at operation)
20 W (on standby)
0.9 W (standby and on Display off)
Dimensions (approx.) 175 mm X 246 mm X 415 mm (W/H/D)
Mass (approx.) 6.2 kg
Speakers Type 2-way Bass reflex
Speaker units Woofer
12 cm cone><1
Tweeter 4 cm cone X 1
Impedance 6 52
Dimensions (approx.) 145 mm X 246 mm X 212 mm (W/H/D)
Mass (approx) 2.2 kg each
Design and specifications are subject to change without notice.
1-2 (NDIMBSSS)
