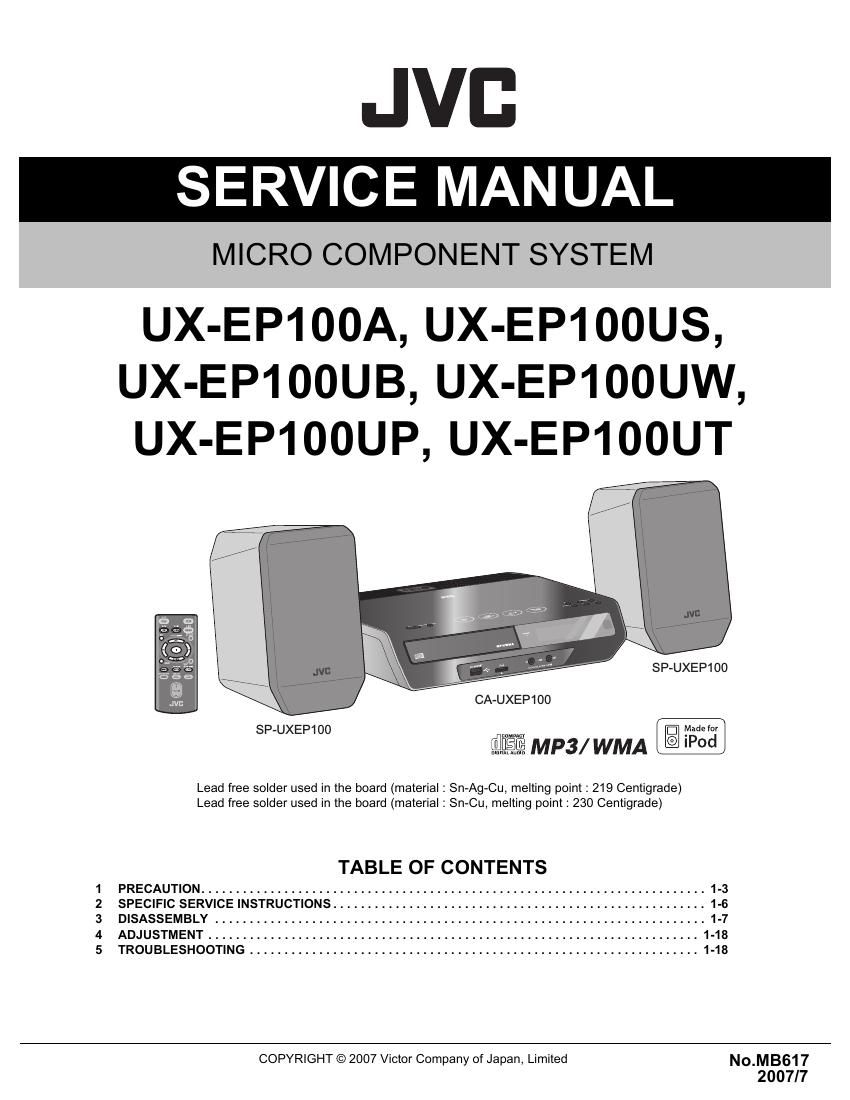

Page 1
JVB
SERVICE MANUAL
MICRO COMPONENT SYSTEM
UX-EP1OOA, UX-EP1OOUS,
UX-EP1OOUB, UX-EP1OOUW,
UX-EP1OOUP, UX-EP1OOUT
SP-UXEP100
CA-UXEP100
[Em MP3/ WMA $33
a eria : n-Ag-Cu, melting point : 219 Centigrade)
Cu, melting point : 230 Centigrade)
TABLE OF CONTENTS
1 PRECAUTION ......................................................................... 1-3
2 SPECIFIC SERVICE INSTRUCTIONS ...................................................... 1-6
3 DISASSEMBLY ....................................................................... 1-7
4 ADJUSTMENT ....................................................................... 1-18
5 TROUBLESHOOTING ................................................................. 1-18
COPYRIGHT © 2007 Victor Company of Japan, Limited No_MBG17
2007/7
Page 2
SPECIFICATION
Amplifier section
OUTPUT POWER
20W(10W+ 10W) at60(10% THD)
Speakers/Impedance
69-169
Audio input LINE IN
500 mV/47 k!) (at LINE IN LVL1")
250 mV/47 k!) (at LINE IN LVLZ")
125 mV/47 k!) (at "LINE IN LVL3")
Audio output LINE OUT
1.0 Vrms (47 km) (at LINE OUT LVL1")
2.0 Vrms (47 k0) (at LINE OUT LVL2")
Digital input
USB MEMORY
Tuner section
FM tuning range
87.50 MHZ - 108.00 MHZ
AM tuning range
530 kHz -1 710 kHz (in 10 kHz spacing)
531 kHz -1 710 kHz (in 9 kHz spacing)
CD player section
Dynamic range
90 dB
Signal-to-noise ratio
85 dB
Wow and flutter
Immeasurable
USB storage
USB specification
Compatible with USB 2.0 Full Speed
Compatible device
Mass storage class
Compatible file system
FAT16, FAT32
Bus power supply Max 500 mA
Speakers Speaker units 8 cm cone x 1
Impedance 6 9
Dimensions (approx) 100 mm X 184 mm x 151 mm (W/H/D)
Mass (approx) 07 kg each
General Power requirements AC 110 V - 240 V , 50/60 Hz
AC 220 V, 50 Hz (only Hong Kong)
Power supply to USB mass storage class device
5 V/500 mA
Power consumption
20 W (power on)
25 W (standby mode)
15 W or less (Save Mode)
Dimensions (W x H x D)
287 mm x 70 mm x 220 mm
Mass
1.7 kg
Specifications and appearance are subject to change without prior notice
1-2 (NotMB617)
