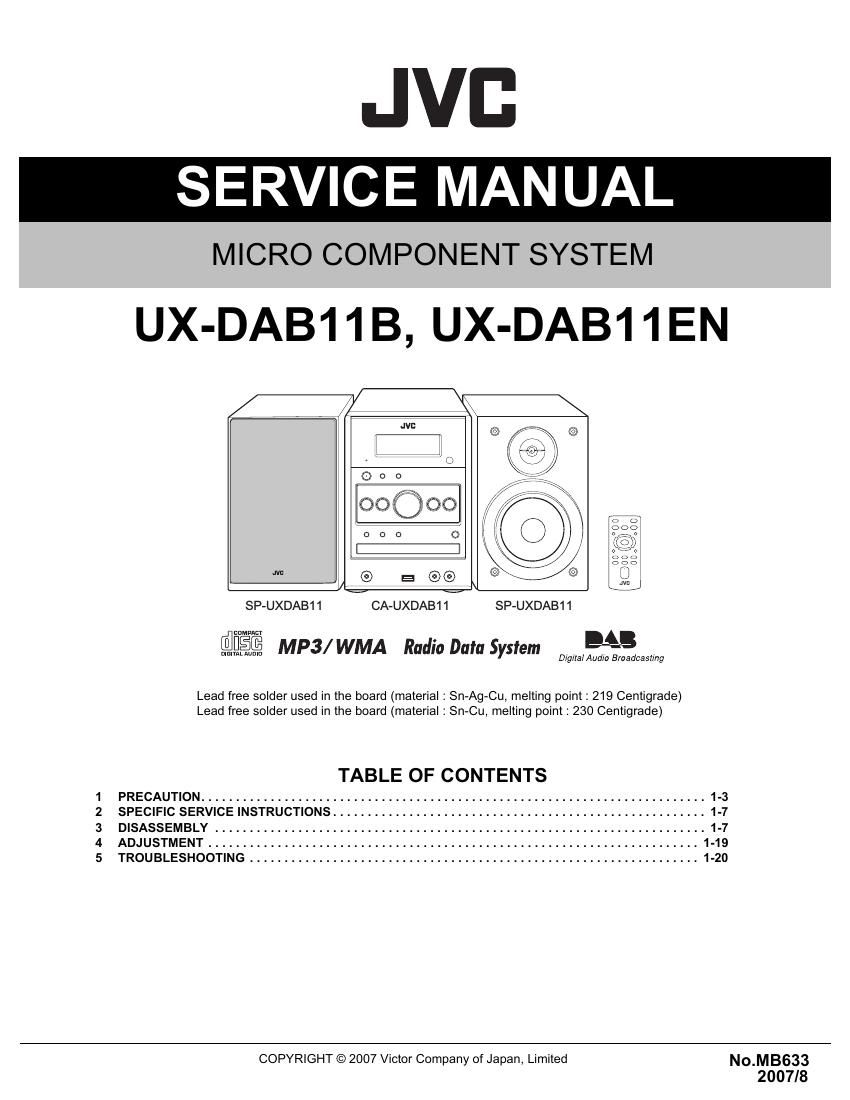

Page 1
JVB
SERVICE MANUAL
MICRO COMPONENT SYSTEM
UX-DAB1 1 B, UX-DAB1 1 EN
Q o o
QQQOO
m
@ El®©
SP~UXDAB11 CA-UXDAB11 SP-UXDAB11
[WEE MP3/WMA Radio Data System 34-!
Digital Audio Broadcasting
Lead free solder used in the board (material : Sn-Ag-Cu, melting point: 219 Centigrade)
Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade)
TABLE OF CONTENTS
PRECAUTION ......................................................................... 1-3
SPECIFIC SERVICE INSTRUCTIONS . . ..
DISASSEMBLY .....................
ADJUSTMENT ......................
TROUBLESHOOTING ................................................................. 1
unbound
COPYRIGHT © 2007 Victor Company of Japan, Limited No.MB633
2007/8
Page 2
SPECIFICATION
Amplifier section
OUTPUT POWER
40W(20W+20 W) at6Q(10% THD)
Speakers/Impedance
69-169
Audio input LINE IN 500 mV/47 k!) (at |N_LVL1")
250 mV/47 k!) (at IN_LVL2")
125 mV/47 k!) (at IN_LVL3")
Audio output LINE OUT 1.0 Vrms (47 kg) (at OUT_LVL1")
2.0 Vrms (47 k0) (at OUT_LVL2)
Digital input USB MEMORY
Tuner section FM Tuning range 8750 MHZ - 108.00 MHZ
AM (MW) Tuning range 522 kHz -1 629 kHZ
DAB tuning range BAND III 174.928 MHZ - 239.200 MHZ
L-BAND 1 452.960 MHZ - 1 490.624 MHZ
CD player section Dynamic range 88 dB
Signal-to-noise ratio 85 dB
Wow and flutter lmmeasurable
USB storage USB specification Compatible with USB 2.0 Full Speed
Compatible device Mass storage class
Compatible file system FAT16, FAT32
Bus power supply Max. 500 mA
Speakers Speaker units Tweeter 1.5 cm dome x 1
Woofer 10 cm cone x 1
Impedance 6 9
Dimensions (approx.) 145 mm x 251 mm x 175 mm (W x H x D)
Mass (approx.) 1.7 kg each
General Power requirements AC 230 V , 50 HZ
Power supply to USB mass storage class device 5 V/500 mA
Power consumption
22 W (Power on)
2.3 W (On standby)
1.0 W or less (Save Mode)
Dimensions (approx.)
175mmx251mmx247mm(WxHxD)
Mass
2.6 kg
Specifications and appearance are subject to change without prior notice.
1-2 (No.MB633)
