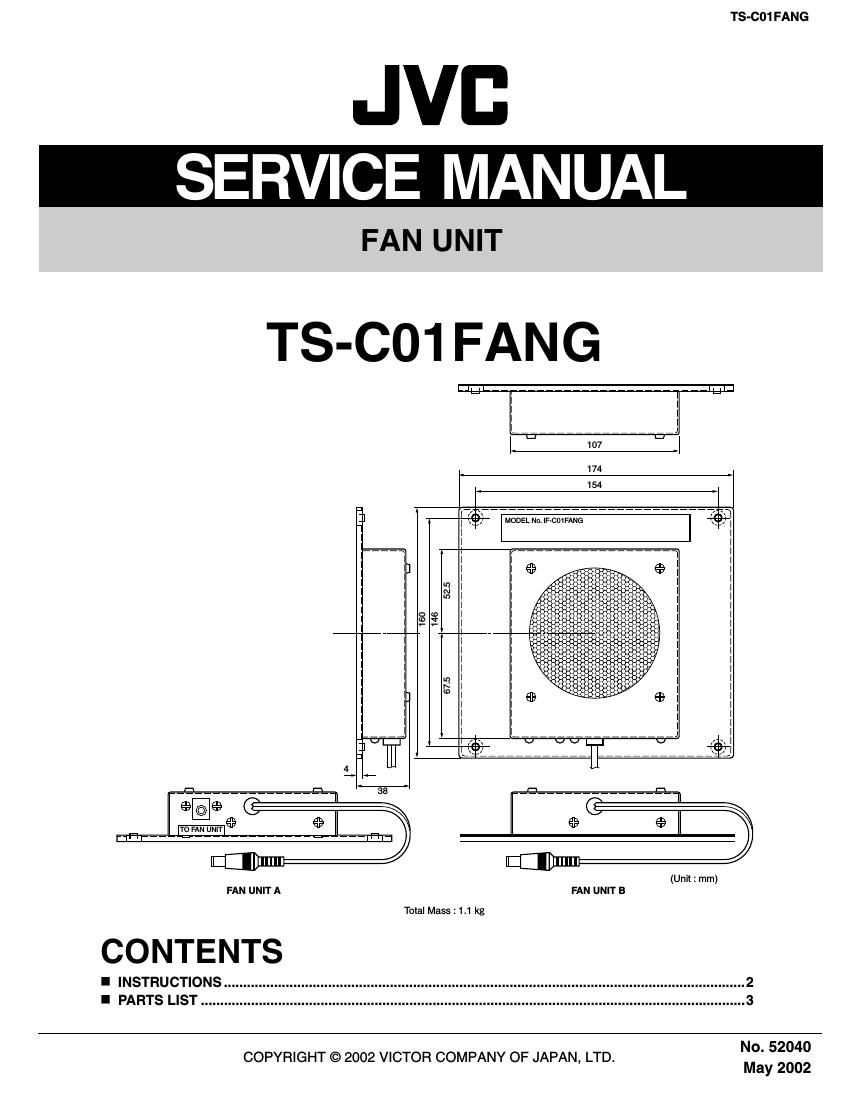

Jvc TSC 01 FANG Service Manual
This is the 4 pages manual for Jvc TSC 01 FANG Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc TSC 01 FANG Service Manual (Ocr-read)
Page 1
2 No. 52040 TS-C01FANG INSTRUCTIONS TS-C01 FANG Instructions for Assembly WARNING -Only attach to the JVC specified PDP Monitor. Attachment to other objects could result in fire or damage. -Only use the screws provided for assembly of this unit. Failure to do so could cause the Monitor to collapse or fall, resulting in injury or damage. -Only use the screws provided. Failure to do so could cause the screws to interfere with the circuits, resulting in electric shock or damage to the monitor. -Only use the wire clamp provided to keep the electric wires in place. Failure to do so could result in fire or damage when attaching to a wall unit. -Plug in the DC plug provided into its corresponding DC jack. Failure to do so could result in fire or damage due to inappropriate operation. -Do not cover the ventilation areas of the Fan Unit and PDP Monitor. Failure to do so could result in fire and damage due to insufficient ventilation. -Clean the ventilation areas of both the Fan Unit and PDP Monitor. Operation when the unit is covered in dust could result in fire or damage. Fan Unit Parts List ATTENTION During assembly, be careful not to touch metal edges. q Fan Unit A x 1w Fan Unit B x 1 DC plug e Screw x 8r Wire Clamp X 10 Non output terminal DC plug (Black) Length: 12mm Output terminal DC jack S tight screw Assembly, Set Up Precautions © 2002 VICTOR COMPANY OF JAPAN, LIMITED VICTOR COMPANY OF JAPAN, LIMITED -For more details, consult your local dealer. Printed in Japan LC21141-001A How to assemble (Install the Fan Units before attaching in the wall or ceiling units.) 1. Using four black screws provided e, affix Fan Unit A q to the rear right side of the PDP Monitor, as illustrated below. 2. Using four black screws provided e, affix Fan Unit B w to the rear left side of the PDP Monitor, as illustrated below. 3. Plug the DC plug for Fan Unit A q into the OPTION terminal for the PDP Monitor. 4. Plug the DC plug for Fan Unit B w into the DC jack for Fan Unit A, labeled TO FAN UNIT. 5. Peel off the sticker attached to the wire clamp r, and attach to the PDP Monitor to fix the wires in place, attach to the spots illustrated below. 6. Turn the PDP Monitor on and confirm that the fans are operating. PDP Monitor OPTION terminalPDP Monitor Fan Unit A q Fan Unit B w ATTENTION When using in the upright position (illustrated above), ensure Fan Unit A, located on the rear right of the PDP Monitor, is facing upward. Attach using the black screws provided e Upright position. ATTENTION When attaching on to a wall or ceiling unit, be careful that the wires do not get tangled and that the DC plug does not come loose. Attach using the black screws provided e
Page 2
TS-C01FANG No. 52040 3 PARTS LIST ! Ref.No. Part No. Part Name Description Local PARTS LIST FAN UNIT A FAN UNIT B DC PLUG 1. OUTER– 2. CENTER + FAN –FAN + DC OUT –DC OUT +DC IN –DC IN + DC JACK ( PIN) REDBLACK DC JACK ( OUTER) FAN –FAN + DC IN – DC PLUG 1. OUTER– 2. CENTER +DC IN + REDBLACK 8 1 ( 7 TO FAN UNIT 9 2 MODEL No. IF-C01FANG 3 ^ ) % 4 * 5 @ & 6 $ ! 0 1 YAC3608-001 FAN CASE For FAN UNIT A 2 YAC3608-002 FAN CASE For FAN UNIT B 3 YAC3616-001 FAN BASE (X 2) 4 YAC4570-001 FAN COVER (X 2) 5 YAC4574-001 DC JACK BKT 6 YDD4974-002 FAN PWB ASSY (X 2) 7 YWA1221-00A DC JACK 8 YAB4571-001 DC PLUG CORD For FAN UNIT A 9 YAB4571-002 DC PLUG CORD For FAN UNIT B 10 YAM4572-001 STUD (X 8) 11 ASB-320 STUD (X 4) 12 KF-21 CORD BUSH (X 2) 14 QYSDST3005M SCREW (X 8) 15 QYSPSPD3030Z SCREW (X 8) 16 QYSBSB4012M SCREW (X 8) 17 QRG039J-560 OM R (X 2) 56Ø 3W J 18 QAR0238-002 FAN (X 2) 19 YAA4537-001 LABEL 20 LC41402-002A CAUTION LABEL (X 2) LC21141-001 INST BOOK KAJ3613-001 PACKING CASE LC32507-002A CARTON LABEL
