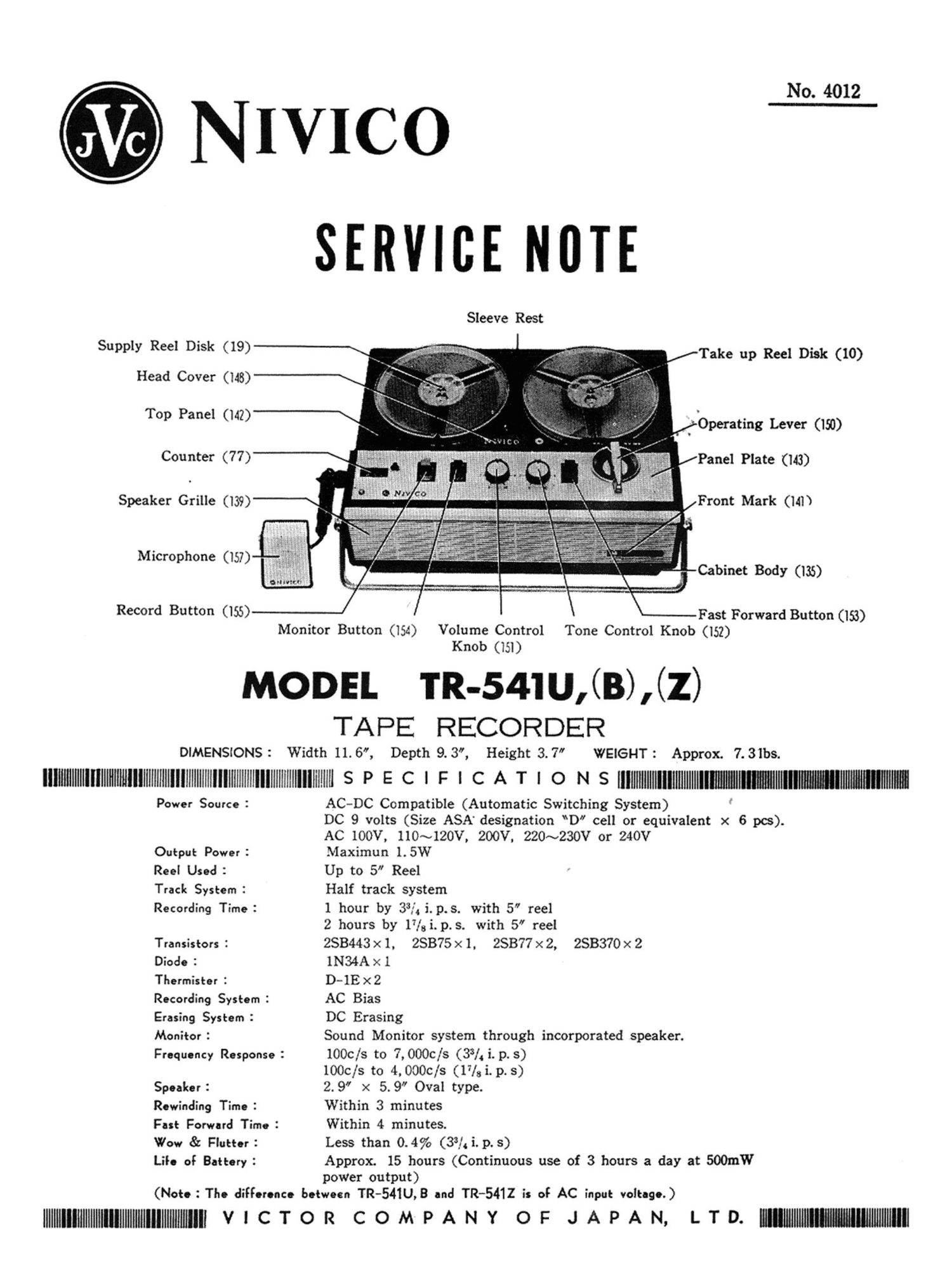

Jvc TR 541 U Service Manual

Page 2

Accessories

Dynamic microphone with remote control switch. 1pc.

Magnetic earphone 1pc.

Extension cord for recording radio program 1pc.

5" reel (tape loaded) 1pc.

5 reel (empty) 1pc.

Head cleaning ribbon 1pc.
Features

* AC & DC operated tape recorder self-containing an AC adaptor. Switching from battery to AC home
power can be done instantly by plugging the power cord.

* Equipped with an automatic volume control, this recorder can perform distortionless clear recording for
full range.

* A combination of large-sized oval speaker and OTL circuit reproduces excellent Hi-Fi tone. This set is
provided with a tone control which will be very convenient to select your favorite tone.

* A sound monitor is equipped to let you know the recording level when recording from radio or phono-

graph. And a convenient counter of three digit is also provided, which returns to 000 when pushed.

Removal oi Main Parts

r I

Volume Control Knob (15)) Tone Control Operating Lever (150)
Knob (152)

Fig. l

1. Removal Procedure of Top Panel (Fig. 1)
(1) Pull off Operating Lever (150), Volume Control Knob (15)), Tone Control Knob (l5?) and Head
Cover (148).
(2) Remove five screws (A) to detach Top Panel (140).
2. Removal Procedure of Cabinet Body (Fig. 2)
(1) Remove Top Panel according to the above procedure.
(2) Detach Jack Board (122) from the left side of the body. When to detach the Jack Board, push the
center part of it inward and the pull out the board upward paying attention so as the side of the

board not to touch the fitting screws for the board.

TR-541U (B, 2) - 2 -
