Jvc THS 3 Service Manual
This is the 65 pages manual for Jvc THS 3 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc THS 3 Service Manual (Ocr-read)

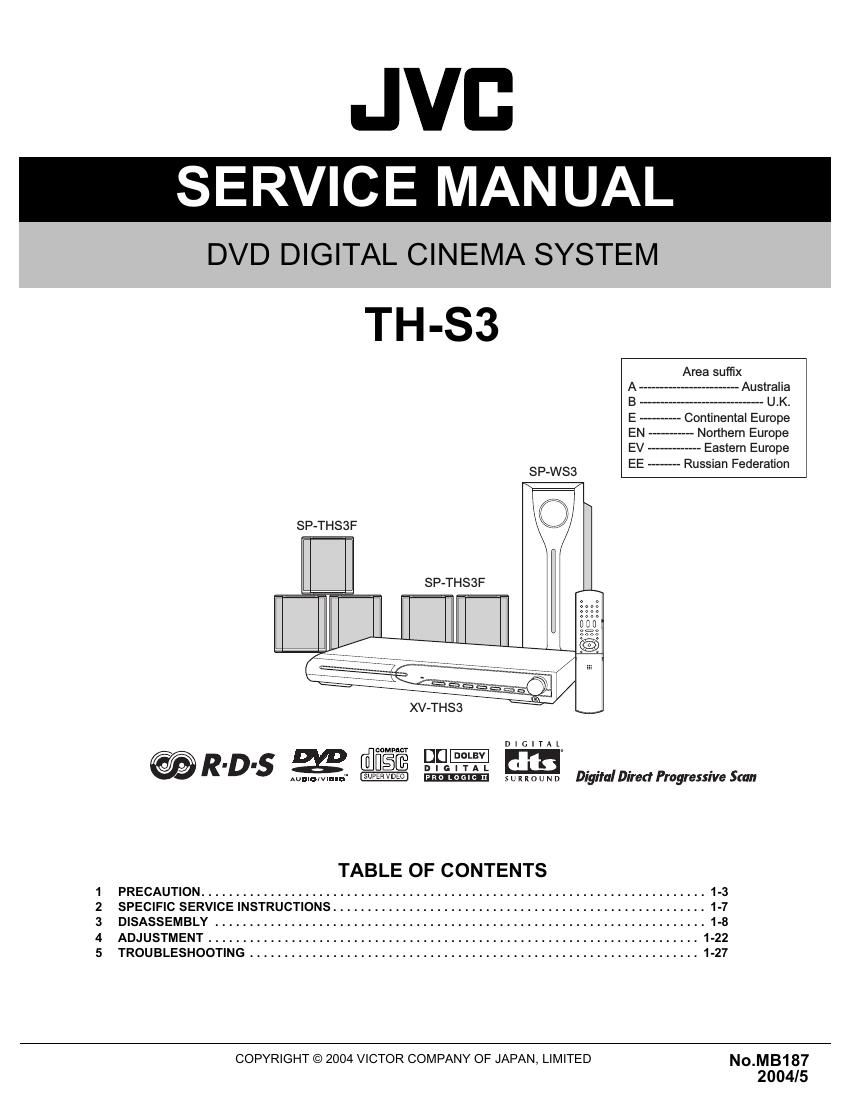

Page 1
JVC
SERVICE MANUAL
DVD DIGITAL CINEMA SYSTEM
TH-S3
Area suffix
~ Australia
------- U.K.
« Continental Europe
a Northern Europe
--- Eastern Europe
Russian Federation
SP«WS3
SP-THSSF
SP-THSSF
XV-THSS
DIGITAL
_ [flfigé DEI-
@R D .5 y % Digital Direrf Progressive Scan
Aumolvmso'
TABLE OF CONTENTS
1 PRECAUTION ......................................................................... 1-3
2 SPECIFIC SERVICE INSTRUCTIONS. . ........................ 1-7
3 DISASSEMBLY ....................................................................... 1-3
4 ADJUSTMENT ....................................................................... 1-22
5 TROUBLESHOOTING ................................................................. 1-27
COPYRIGHT © 2004 VICTOR COMPANY OF JAPAN, LIMITED No.MB187
2004/5
Page 2
SPECIFICATION
Center unit (XV-THS3)
Audio section Total Harmonic Distortion 0.02%
Digital input1 OPTICAL DIGITAL IN: -21 dBm to -15 dBm (660 nm E30 nm)
Video section Video System PAL
Horizontal Resolution 500 lines
Signal-to-Noise Ratio 64 dB (Composite signal when R63 is selected)
Video output level Composite: 1.0 V(p-p)/75 W
S-video-Y: 1.0 V(p-p)/75 Q
S-video-C: 0.3 V(p-p)/75 £2
Component-Y: 1.0 V(p-p)/75 £2
Component-PB/PR: 0.7 V(p-p)/75 £2
Tuner section Tuning Range FM: 87.50 MHZ to 108.00 MHz
AM: 522 kHZ to 1 629 kHZ
General Power Requirements AC 230 V , 50 Hz
Power Consumption 75 W (at operation), 10 W (in standby mode)
Dimensions (W X H X D) 360 mm X 65 mm X 370 mm
Mass 5.3 kg
*1 : Corresponding to Linear PCM, Dolby Digital, and DTS Digital Surround (with sampling frequency - 32 kHz, 44.1 kHz, 48kHZ)
Front speakers (SP-THS3F) Surround speakers (SP-THS3F)
Type 1-Way Bass-Reflex Type Type 1-Way Bass-Reflex Type
(Magnetically-shielded Type) (Magnetically-shielded Type)
Speaker 80 cm cone M 1 Speaker 80 cm cone M 1
Power Handling Capacity 52 W Power Handling Capacity 52 W
Impedance 6 Q Impedance 6 9
Frequency Range 85 Hz to 20 000 Hz Frequency Range 85 Hz to 20 000 Hz
Sound Pressure Level 82 dBlW-m Sound Pressure Level 80 dBlW-m
Dimensions (W X H X D)
105mm><118 mm><98 mm
Dimensions (W X H X D)
105mm><118 mm><98 mm
Mass
060 kg each
Mass
055 kg each
Center speaker (SP-THS3F)
Subwoofer (SP-W83)
Type 1-Way Bass-Reflex Type Type 1-Way Bass-Reflex Type
(Magnetically-shielded Type) (Magnetically-shielded Type)
Speaker 80 cm cone M 1 Speaker 16.0 cm cone M 1
Power Handling Capacity 52 W Power Handling Capacity 52 W
Impedance 6 Q Impedance 6 9
Frequency Range 85 Hz to 20 000 Hz Frequency Range 40 Hz to 1 800 Hz
Sound Pressure Level 82 dBlW-m Sound Pressure Level 85 dBlW-m
Dimensions (W x H X D)
105mm><118mm><98 mm
Dimensions (W x H X D)
139 mm X 350 mm X 408 mm
Mass
0.65 kg
Mass
4.0 kg
Designs & specifications are subject to change without notice.
1-2 (No.MB187)
