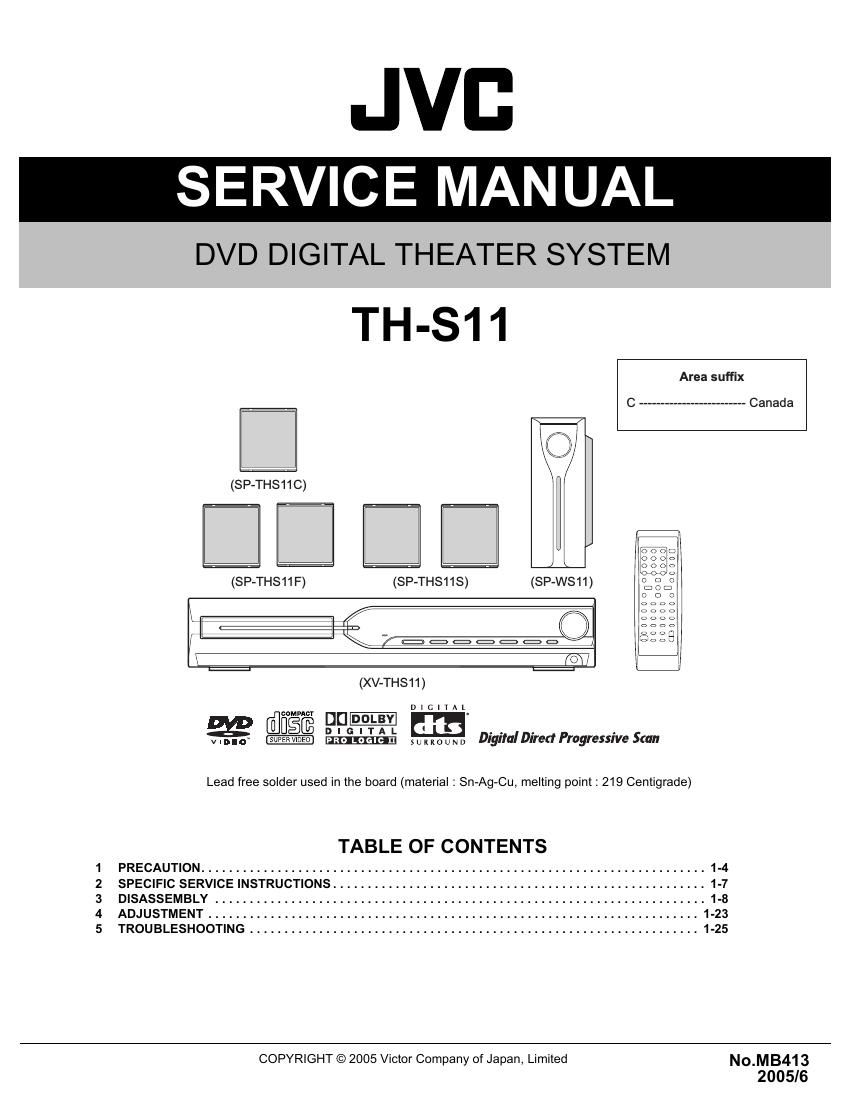

Jvc THS 11 Service Manual
This is the 114 pages manual for Jvc THS 11 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc THS 11 Service Manual (Ocr-read)
Page 1
1-2 (No.MB413) SPECIFICATION Center unit (XV-THS11) Front speakers (SP-THS11F) Center speaker (SP-THS11C)Audio section Front/Center/Surround 33 W per channel, RMS at 6 Ω at 1 kHz,with 10% total harmonic dis- tortion. Subwoofer 40 W, RMS at 4 Ω at 100 Hz, with 10% total harmonic distortion. Video section Video System NTSC Horizontal Resolution 500 lines Signal-to-Noise Ratio 64 dB Video output level Composite 1.0 V(p-p)/75 Ω S-video-Y 1.0 V(p-p)/75 Ω S-video-C 0.286 V(p-p)/75 Ω Component (Interlace/Progressive)Y: 1.0 V(p-p)/75 Ω PB/PR: 0.7 V(p-p)/75 C Tuner section Tuning Range FM 87.5 MHz to 108.0 MHz AM 530 kHz to 1 710 kHz Speaker impedance Front/Center/Surround 6 Ω to 16 Ω Subwoofer 4 Ω to 16 Ω General Power Requirements AC 120 V , 60 Hz Power Consumption 135 W (at operation) 1.3 W (in standby mode) Dimensions (W × H × D) 360 mm × 65 mm × 370 mm Mass 5.3 kg Type 1-Way Bass-Reflex Type(Magnetically-shielded Type) Speaker 8.0 cm cone × 1 Power Handling Capacity 33 W Impedance 6 Ω Frequency Range 90 Hz to 20 000 Hz Sound Pressure Level 84 dB/W·m Dimensions (W × H × D) 92 mm × 101 mm × 95 mm Mass 0.58 kg each Type 1-Way Bass-Reflex Type(Magnetically-shielded Type) Speaker 8.0 cm cone × 1 Power Handling Capacity 33 W Impedance 6 Ω Frequency Range 90 Hz to 20 000 Hz Sound Pressure Level 85 dB/W·m Dimensions (W × H × D) 92 mm × 101 mm × 95 mm Mass 0.65 kg
Page 2
(No.MB413)1-3 Surround speakers (SP-THS11S) Subwoofer (SP-WS11) Designs & specifications are subject to change without notice. Type 1-Way Bass-Reflex Type Speaker 8.0 cm cone × 1 Power Handling Capacity 33 W Impedance 6 Ω Frequency Range 90 Hz to 20 000 Hz Sound Pressure Level 82 dB/W·m Dimensions (W × H × D) 92 mm × 101 mm × 95 mm Mass 0.56 kg each Type 1-Way Bass-Reflex Type Speaker 15.0 cm cone × 1 Power Handling Capacity 40 W Impedance 4 Ω Frequency Range 40 Hz to 1 800 Hz Sound Pressure Level 84 dB/W·m Dimensions (W × H × D) 129 mm × 284 mm × 337 mm Mass 3.0 kg
