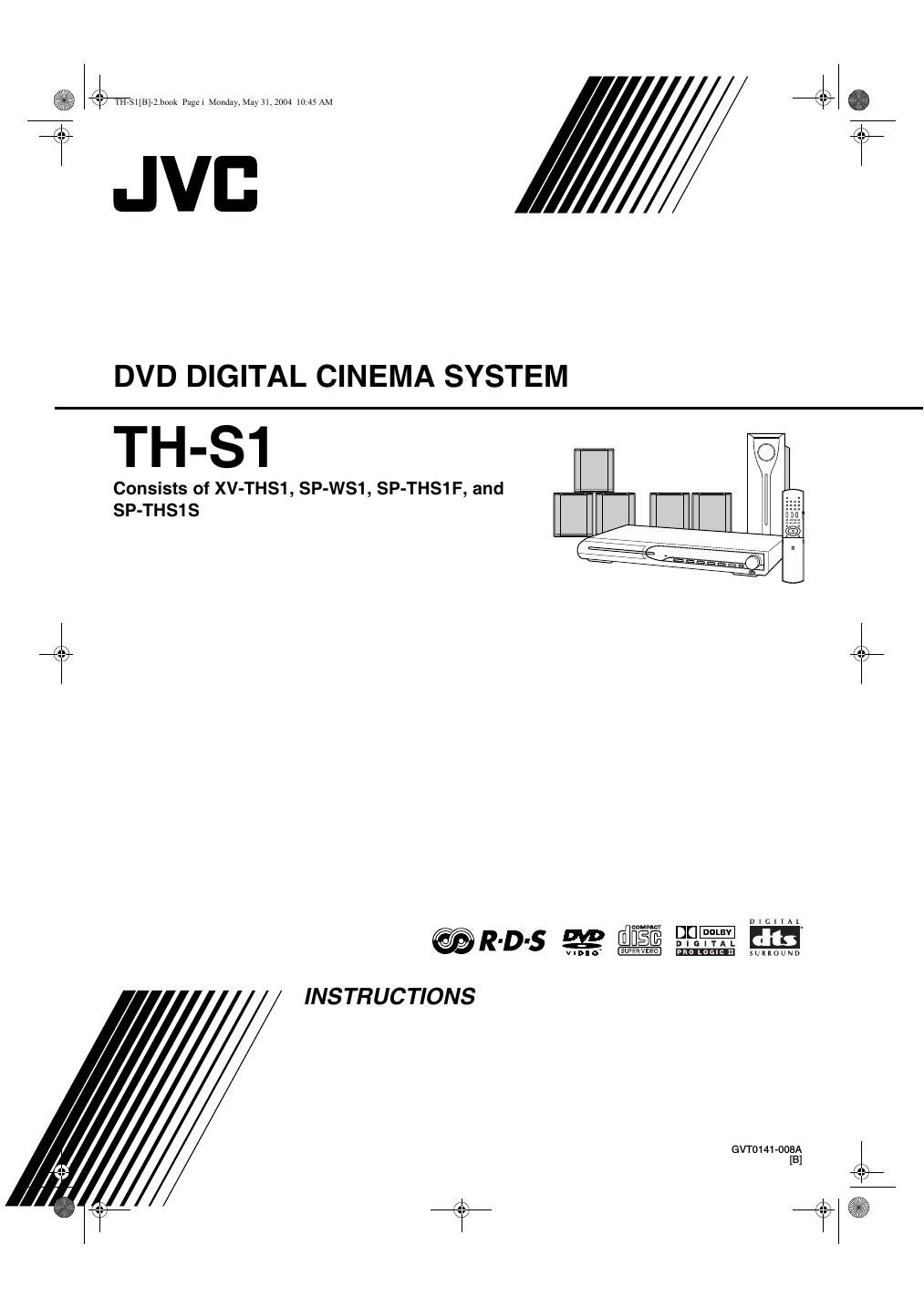

Jvc THS 1 Owners Manual
This is the 44 pages manual for Jvc THS 1 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc THS 1 Owners Manual (Ocr-read)
Page 1
G-1 Warnings, Cautions and Others IMPORTANT for the U.K. DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer. BE SURE to replace the fuse only with an identical approved type, as originally fitted. If nonetheless the mains plug is cut off ensure to remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply. If this product is not supplied fitted with a mains plug then follow the instructions given below: IMPORTANT. DO NOT make any connection to the terminal which is marked with the letter E or by the safety earth symbol or coloured green or green-and-yellow. The wires in the mains lead on this product are coloured in accordance with the following code: Blue: Neutral Brown: Live As these colours may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. IF IN DOUBT - CONSULT A COMPETENT ELECTRICIAN. CAUTION To reduce the risk of electrical shocks, fire, etc.: 1. Do not remove screws, covers or cabinet. 2. Do not expose this appliance to rain or moisture. CAUTION- button! (XV-THS1) Disconnect the mains plug to shut the power off completely (the STANDBY lamp goes off). The button in any position does not disconnect the mains line. - When the system is on standby, the STANDBY lamp lights red. When the system is turned on, the STANDBY lamp goes off. The power can be remote controlled. CAUTION Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.) Do not place any naked flame sources, such as lighted candles, on the apparatus. When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly. Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. IMPORTANT FOR LASER PRODUCTS 1. CLASS 1 LASER PRODUCT 2. CAUTION : Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel. 3. CAUTION : Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam. 4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE THE UNIT. TH-S1[B]-2.book Page 1 Monday, May 31, 2004 10:45 AM
Page 2
G-2 Caution: Proper Ventilation To avoid risk of electric shock and fire and to protect from damage, place the apparatus on a level surface. The minimal clearances are shown below: SAFETY INSTRUCTIONS SOME DOS AND DONTS ON THE SAFE USE OF EQUIPMENT This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. Do read the operating instructions before you attempt to use the equipment. Do ensure that all electrical connections (including the mains plug, extension leads and interconnections between pieces of equipment) are properly made and in accordance with the manufacturers instructions. Switch off and withdraw the mains plug when making or changing connections. Do consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment. Do be careful with glass panels or doors on equipment. DONT continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains plug and consult your dealer. DONT remove any fixed cover as this may expose dangerous voltages. DONT leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended operation or has a standby mode. Switch off using the switch on the equipment and make sure that your family know how to do this. Special arrangements may need to be made for infirm or handicapped people. DONT use equipment such as personal stereos or radios so that you are distracted from the requirements of traffic safety. It is illegal to watch television whilst driving. DONT listen to headphones at high volume as such use can permanently damage your hearing. DONT obstruct the ventilation of the equipment, for example with curtains or soft furnishings. Overheating will cause damage and shorten the life of the equipment. DONT use makeshift stands and NEVER fix legs with wood screws - to ensure complete safety always fit the manufacturers approved stand or legs with the fixings provided according to the instructions. DONT allow electrical equipment to be exposed to rain or moisture. ABOVE ALL -NEVER let anyone, especially children, push anything into holes, slots or any other opening in the case - this could result in a fatal electrical shock.; -NEVER guess or take chances with electrical equipment of any kind - it is better to be safe than sorry! E43486-340B 8 cm Wall or obstructions XV-THS1 3 cm 3 cm 15 cm XV-THS1 10 cm Front No obstructionsWall or obstructions Front viewSide view TH-S1[B]-2.book Page 2 Monday, May 31, 2004 10:45 AM
Page 9
7 Connections 7AM (MW) loop antenna Setting up supplied AM (MW) loop antenna Connecting AM (MW) loop antenna Turn the loop antenna until you have the best reception during AM (MW) broadcast program reception. NOTE Make sure the antenna conductors do not touch any other terminals, connecting cords and power cords. This could cause poor reception. If reception is poor 7FM antenna If reception is poor NOTE We recommend that you use coaxial cable for the FM antenna as it is well-shielded against interference. Connecting the FM and AM (MW) antennas If the antenna cord is covered with the insulation coat, twist and pull the insulation coat off and remove. 1 2 3 Antenna cord Outdoor single vinyl-covered wire antenna (not supplied)AM (MW) loop antennaCenter unit Extend the supplied FM antenna horizontally. Center unitFM antenna (supplied) Outdoor FM antenna (not supplied) Outdoor FM antenna cord (not supplied) Center unit Standard type (75 C coaxial) connector Do not connect the power cord until all other connections have been made. TH-S1[B]-2.book Page 7 Monday, May 31, 2004 10:45 AM
Page 30
Advanced operations 28 4 Press ENTER. Example: 5 Press Cursor Y/5 to change the setting. 6 Press ENTER. The current VFP settings appear again. 7 Repeat steps 3 to 6 to adjust other parameters. 8 Press VFP. NOTE Although the setting display disappears in the middle of the procedure, the setting at that time will be stored. 7While stopped 1 Press PLAY MODE repeatedly until program window appears on the TV screen. 2 Follow the instructions that appears on the TV screen to program the desired chapters/ tracks. For details on using the number buttons, see How to use the number buttons. (See page 18.) The contents numbers that you have to specify for programming varies depending on the disc type: DVD VIDEO: Titles and chapters VCD, SVCD, CD: TracksMP3: Groups and tracks You can specify the chapters/tracks whose number is up to 99. (For CD, SVCD or VCD) When the total playback time exceeds 99 minutes 59 seconds, –:– will appear on the display window. But, it is possible to continue programming.To clear the programs one by one from the last entered number Press CANCEL repeatedly. To clear all programs Press 7. You can also clear the program by turning off the system. 3 Press 3 (play button) to start Program Playback. If all of the programmed tracks/files have been played back, playback stops and the program window appears again. Note that program setting remains. To check the program contents During playback, press 7. Playback stops and the program window appears. To quit the Program mode While stopped, press PLAY MODE repeatedly until both program window and RANDOM disappears from the TV screen. NOTE The Resume function cannot be used with Program Playback. Program Playback may not work for some discs. You can play titles or tracks on a disc in random order. 7While stopped 1 Press PLAY MODE repeatedly until RANDOM appears on the TV screen. 2 Press 3 (play button). After playing all titles/tracks on the disc, the system stops playback and quits the Random mode. To quit the Random mode While stopped, press PLAY MODE repeatedly until both program window and RANDOM disappear from the TV screen. You can also clear the Random mode by turning off the system. NOTE The same title/track will not be played back more than once during Random Playback. Program Playback USE NUMERIC KEYS TO PROGRAM TRACKS. USE CANCEL TO DELETE THE PROGRAM. Random Playback See page 20 for button locations. TH-S1[B]-2.book Page 28 Monday, May 31, 2004 10:45 AM
