Page 88

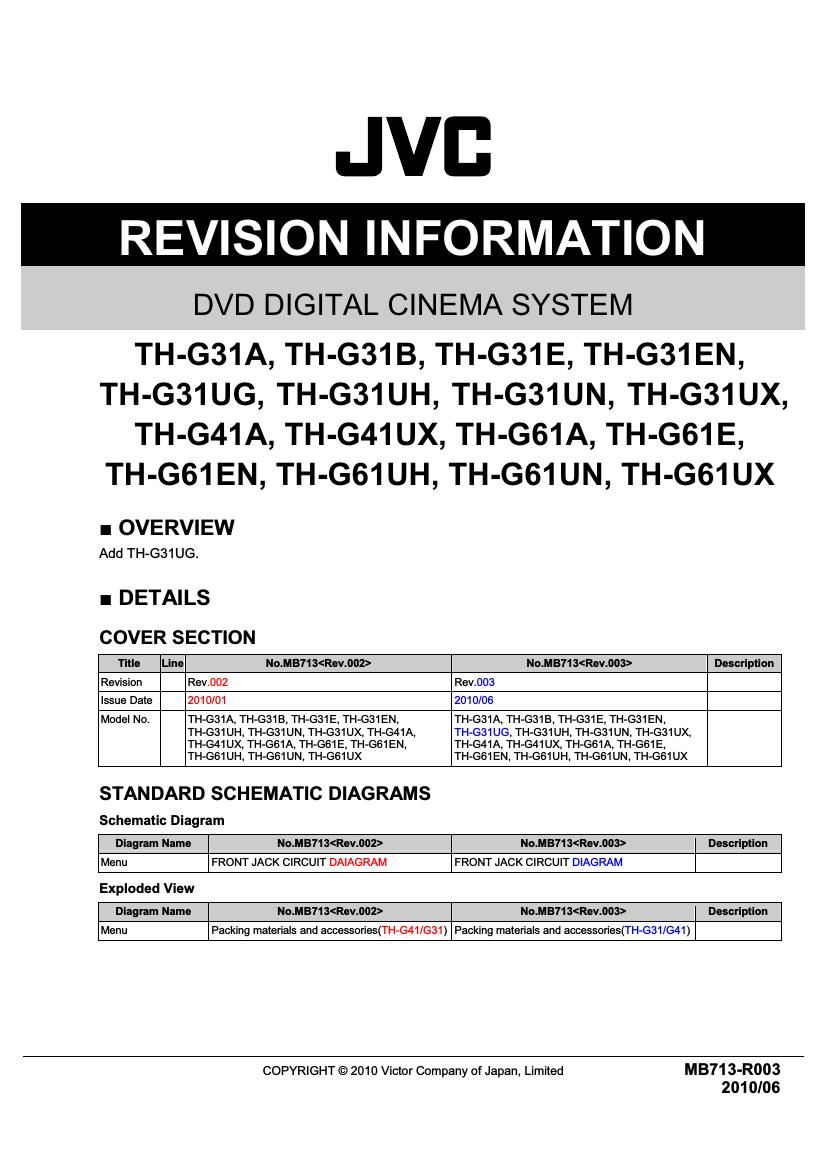

Title Line No.MB713
139 - Sound Pressure Level
82 dBNV (1m)
140 - Rated Input Power
255 W
141 - Max. Input Power
450 W
142 - Net Dimensions (W X H X D)
236 X 435 X 391 mm
143 - Net Weight
5.7 kg
144 - USB
145 - Output power
DC 5V 500mA
147 - Items with * are measured at Front Speaker Terminals in
STEREO mode
148 - Designs and specifications are subject to change without
notice.
150 - TH-G41 Oceania
151-
152 - Power supply
220 - 240 V ~ 50/60 HZ
153 - Power consumption
130 W
154 - Net Weight
3.6 kg
155 - External dimensions (W X H X D)
430 X 76 X 317mm
156 - Operating conditions
Temperature: 5°C to 35°C, Operation status: Horizontal
157 - Operating humidity
5% to 85%
158 - Laser
Semiconductor laser, wavelength 650 nm
159 - CD/DVD
160 - Video system
PAL/NTSC
161 - Frequency response (audio)
140 Hz to 20 kHz
162 - Signal-to-noise ratio (audio)
More than 75 dB (1 kHz, 20 kHz LPF/A-Filter)
163 - Dynamic range (audio)
More than 75 dB*
164 - Harmonic distortion (audio)
0.5 % (1 kHZ, at 1W position) (20 kHz LPF)
165 -
166 - Video output
1.0 V (p-p), 75 (1, negative sync., RCAjack X 1
167 - COMPONENT VIDEO OUT
(Y) 1.0 V (p-p), 75 ohms, negative sync, RCAjack X 1
168 - (Pm/(PR) 0.7 v (p-p), 75 ohms, RCA jack x 1
169 - HDMI OUT
480i (or 576i)/480p (or 576p)/720p/1080l/1080p
(MB713-R002) 7
