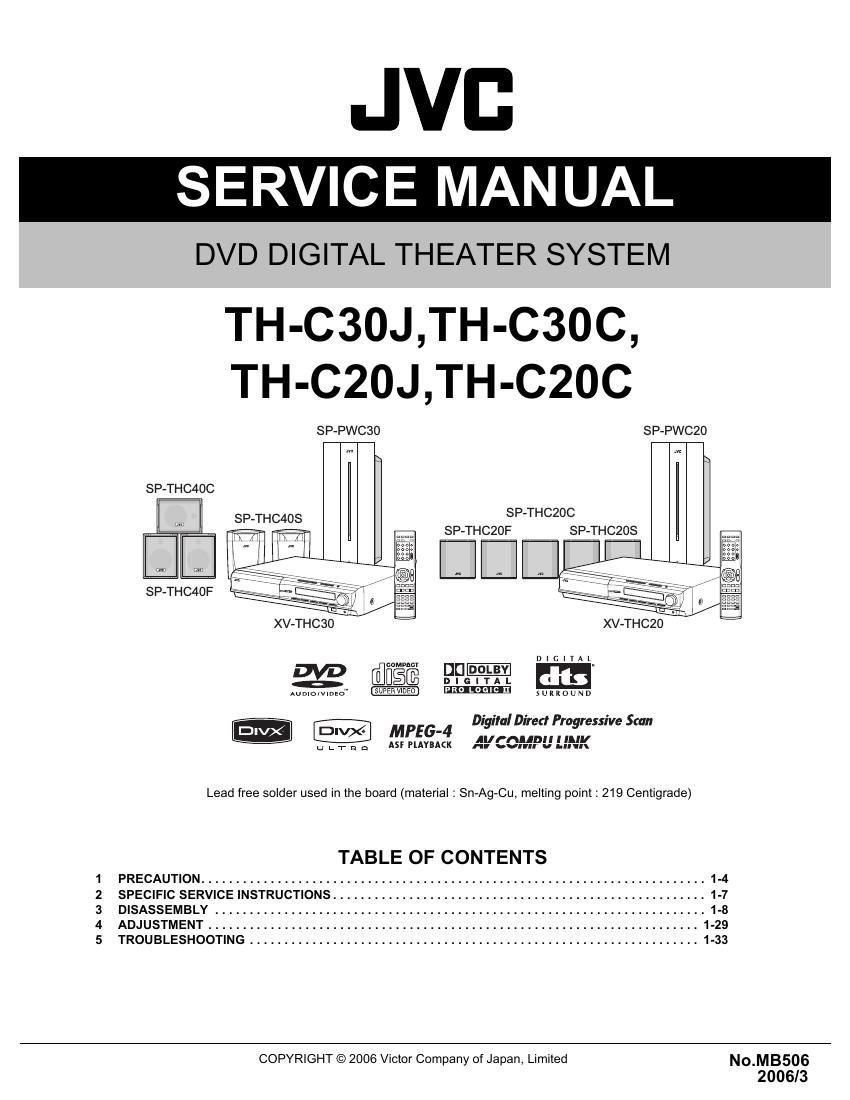

Jvc THC 30 J Service Manual
This is the 91 pages manual for Jvc THC 30 J Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc THC 30 J Service Manual (Ocr-read)
Page 2
Center unit (XV-THCSOIXV-THCZO)
SPECIFICATION
Audio section Total Harmonic Distortion 1 0.02%
Digital input 2 DIGITAL IN (DBS) (OPTICAL) : -21 dBm to -15 dBm (660 nm i 30 nm)
Video section Video System NTSC
Horizontal Resolution 500 lines
Signal-to-Noise Ratio 64 dB
Video output level
Composite : 1.0 V(p-p)/75 Q
S-video-Y : 1.0 V(p-p)/75 Q
S-video-C : 0.286 V(p-p)/75 Q
Component-Y : 1.0 V(p-p)/75 Q
Component-PB/PR : 0.7 V(p-p)/75 Q
Video input sensitivity/Impedance (VCR lN)
Composite : 1.0 V(p-p)/75 Q
S-video-Y : 1.0 V(p-p)/75 £2
S-video-C : 0.286 V(p-p)/75 Q
USB storage USB specification
Compatible with the USB 2.0 Full»Speed
Compatible device
Mass Storage Class
Compatible file system
FAT1 6, FAT32
Bus power supply
Max. 500 mA
Tuner section Tuning Range
FM : 87.5 MHZ to 108.0 MHZ
AM : 530 kHz to 1 710 kHz
General Power Requirements
AC 120V, 60 HZ
Power Consumption
25 W (at operation)
0.6 W (in standby mode)
Dimensions (W X H X D)
400 mm X 85 mm X 316 mm (15»3/4 inches X 3»3/8 inches X 12-1/2 inches)
Mass
3.8 kg (8.4 lbs)
Subwoofer (SP-PWC30)
1: This value is measured at System cord CONNECTOR for reference.
2: Corresponding to Linear PCM, Dolby Digital, and DTS Digital Surround (with sampling frequency -32 kHz, 44.1 kHz, 48 kHz)
Amplifier section Front/Center/Surround
167 W per channel, RMS at 3 S2 at 1 kHz, with 10 % total harmonic distortion.
S u bwoofe r
167 W, RMS at 3 £2 at 100 Hz, with 10 % total harmonic distortion.
Speaker section Speaker unit
16 cm (6-5116 inches) Bass-reflex
Power Handling Capacity 170 W
Impedance 3 (2
Frequency Range 30 Hz to 200 Hz
Sound Pressure Level 73 dB/Wm
General Power Requirements
AC 120V,60 HZ
Power Consumption
160 W (at operation)
0 W (in standby mode)
Dimensions (W X H X D)
170 mm X 411 mm X 458 mm (6-3/4 inches x 163/16 inches >< 18-1/16 inches)
Mass
11.5 kg (25.4155)
Subwoofer (SP-PWCZO)
Amplifier section Front/Center/Surround
135 W per channel, RMS at 4 S2 at 1 kHz, with 10 % total harmonic distortion.
S u bwoofe r
135 W, RMS at 4 £2 at 100 Hz, with 10 % total harmonic distortion.
Speaker section Speaker unit
16 cm (6-5116 inches) Bass-reflex
Power Handling Capacity 140 W
Impedance 4 (2
Frequency Range 30 Hz to 200 Hz
Sound Pressure Level 74 dB/W-m
General Power Requirements
AC 120V,60 HZ
Power Consumption
135 W (at operation)
0 W (in standby mode)
Dimensions (W X H X D)
170 mm X 411 mm X 458 mm (6-3/4 inches >< 163/16 inches >< 18-1/16 inches)
Mass
11.5 kg (25.4155)
1-2 (NoMBsos)
