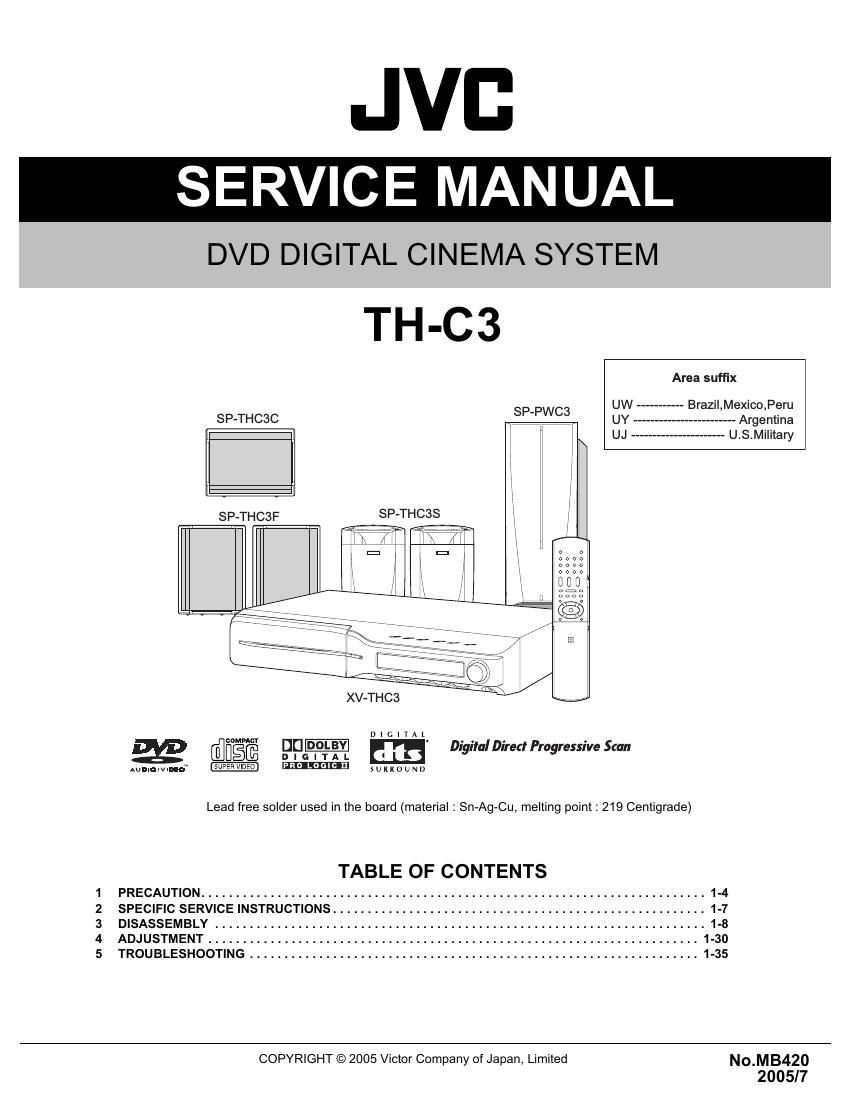

Jvc THC 3 Service Manual
This is the 36 pages manual for Jvc THC 3 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc THC 3 Service Manual (Ocr-read)
Page 1
1-2 (No.MB420) SPECIFICATION Center unit (XV-THC3) *1: This value is measured at System cord CONNECTOR for reference. *2: Corresponding to Linear PCM, Dolby Digital, and DTS Digital Surround (with sampling frequency -32 kHz, 44.1 kHz, 48 kHz) Subwoofer (SP-PWC3)Audio section Total Harmonic Distortion*1 0.02% Digital input*2 DIGITAL IN (DBS): -21 dBm to -15 dBm (OPTICAL: 660 nm ± 30 nm) Video section Video System PAL/NTSC Horizontal Resolution 500 lines Signal-to-Noise Ratio 64 dB Video output level Composite: 1.0 V(p-p)/75 Ω S-video-Y: 1.0 V(p-p)/75 Ω S-video-C: For PAL: 0.3 V(p-p)/75 Ω S-video-C: For NTSC: 0.286 V(p-p)/75 Ω Component-Y: 1.0 V(p-p)/75 Ω Component-PB/PR: 0.7 V(p-p)/75 Ω Video input sensitivity/Impedance (VCR IN) Composite: 1.0 V(p-p)/75 Ω S-video-Y: 1.0 V(p-p)/75 Ω S-video-C: For PAL: 0.3 V(p-p)/75 Ω S-video-C: For NTSC: 0.286 V(p-p)/75 Ω Tuner section Tuning Range FM 87.5 MHz to 108.0 MHz AM 531 kHz to 1 710 kHz (at 9 kHz channel spacing) 530 kHz to 1 710 kHz (at 10 kHz channel spacing) For Middle East 531 kHz to 1 602 kHz (at 9 kHz channel spacing) 530 kHz to 1 600 kHz (at 10 kHz channel spacing) General Power Requirements AC 110-240 V , 50/60 Hz Power Consumption 19 W (at operation) 1.9 W (in standby mode) Dimensions (W × H × D) 400 mm × 85 mm × 399 mm Mass 4.2 kg (9.3 lbs) Amplifier section Front 140W per channel, RMS at 4 Ω at 1 kHz, with 10 % total harmonic distortion. Center/Surround 130W per channel, RMS at 4 Ω at 1 kHz, with 10 % total harmonic distortion. Subwoofer 140 W, RMS at 4 Ω at 100 Hz, with 10 % total harmonic distortion. Speaker section Speaker unit 16 cm Bass-reflex Power Handling Capacity 140 W Impedance 4 Ω Frequency Range 30 Hz to 200 Hz General Power Requirements AC 110 V/ AC 127 V/AC 220-240 V , 50/60 Hz Power Consumption 135 W (at operation) 0 W (in standby mode) Dimensions (W × H × D) 169 mm × 411 mm × 451 mm Mass 11.3 kg
Page 2
(No.MB420)1-3 Satellite Speakers (SP-XTHC3) Designs & specifications are subject to change without notice. Front speakers (SP-THC3F) Speaker unit 8.0 cm 1.5 cm Bass-reflex, Magnetically Shielded Power Handling Capacity 140 W Impedance 4 Ω Frequency Range 80 Hz to 20 kHz Dimensions (W × H × D) 104.5 mm × 139 mm ×101 mm Mass 0.56 kg each Center speaker (SP-THC3C) Speaker unit 8.0 cm 1.5 cm Bass-reflex, Magnetically Shielded Power Handling Capacity 140 W Impedance 4 Ω Frequency Range 80 Hz to 20 kHz Dimensions (W × H × D) 137 mm × 105 mm × 104.5 mm Mass 0.57 kg (1.3 lbs) Surround speakers (SP-THC3S) Speaker unit 8.0 cm Bass-reflex Power Handling Capacity 140 W Impedance 4 Ω Frequency Range 80 Hz to 20 kHz Dimensions (W × H × D) 111.5 mm × 148 mm × 106.5 mm Mass 0.56 kg each
