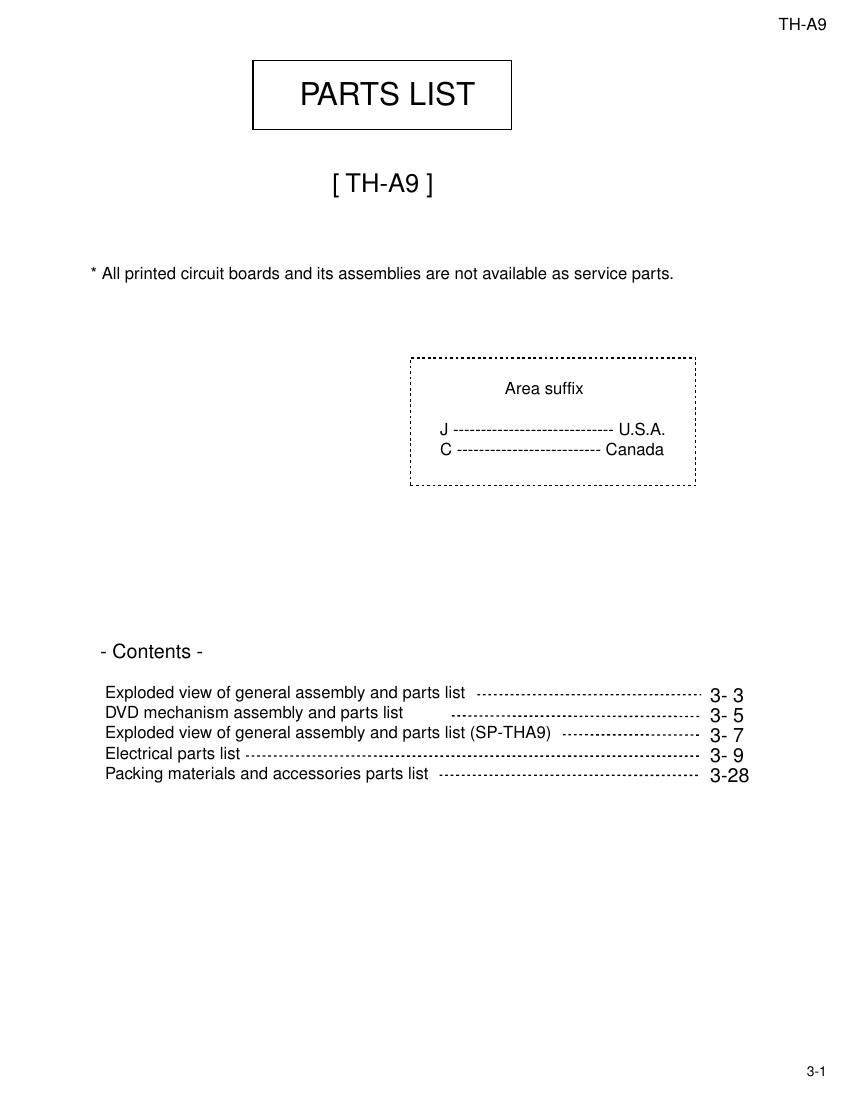

TH-A9
PARTS LIST
[TH-A9]
* All printed circuit boards and its assemblies are not available as service parts.
Area suffix
J - USA.
C - Canada
- Contents -
Exploded view of general assembly and parts list ----------------------------------------- 3- 3
DVD mechanism assembly and parts list ............................................. 3- 5
EXploded view of general assembly and parts list (SP-THA9) .................... 3_ 7
Electrical parts list .......................................................................... 3- 9
Packing materials and accessories parts list ----------------------------------------------- 3-28
