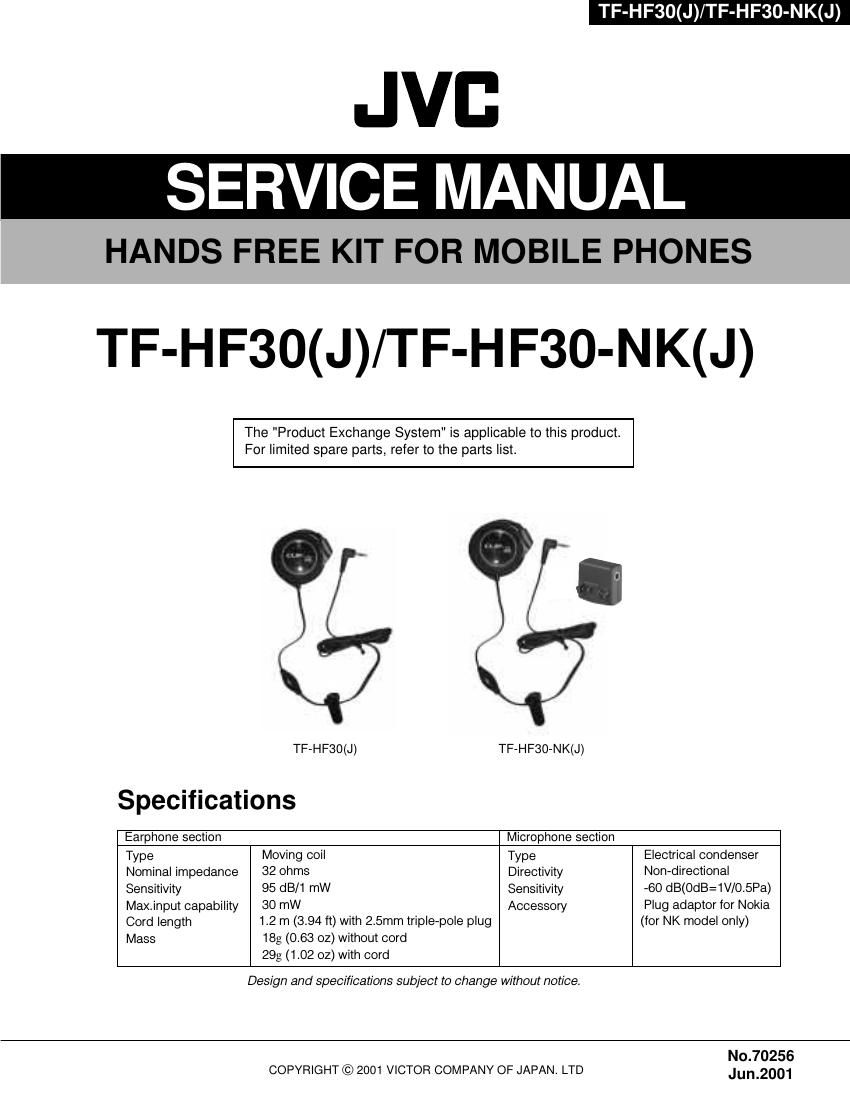

Jvc TFHF 30 Service Manual
This is the 4 pages manual for Jvc TFHF 30 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc TFHF 30 Service Manual (Ocr-read)
Page 1
2 (No.70256) J46773-001 J46772-001 J46987-001Pad Urethan Ear Pad Clip1 1 1 1 2 3 Item No. Parts No. Parts Name Description *Parts marked ( ) are safety parts. When replacing, be sure to use the specified one. Q'ty Disassembly Using the earphone TF-HF30(J)/TF-HF30-NK(J) Parts List Note : These parts which was marked (*) will not be able to supply as our service parts. 2 3 1 *Driver Unit Ass'y *Housing Ass'y *Cord For Mobile Phone / Cellular Phone with a f2.5mm triple-pole plug. Hands Free Kits for Mobile Phones Using the earphone To the f2.5mm earphone jack or including Adapter. including NOKIA 71xx/61xx/51xx Adapter MICROPHONE Mobile phone/Cellular phone Ear Hook Ear Hook Push the Ear Hook slightly. Ear PadRight Ear Place the Ear Hook over your ear and adjust the Ear Hook position to fit your ear. TF-HF30-NK(J) TF-HF30(J) For Mobile Phone / Cellular Phone with a f2.5mm triple-pole plug. Hands Free Kits for Mobile Phones Using the earphone To the f2.5mm earphone jack. MICROPHONE Mobile phone/Cellular phone Ear Hook Ear Hook Push the Ear Hook slightly. Ear PadRight Ear Place the Ear Hook over your ear and adjust the Ear Hook position to fit your ear.
Page 2
J46980-002 BT-51007-5Adaptor Warranty infomation card for NK model only 1 1 1 2 Item No. Parts No. Parts Name Description *Parts marked ( ) are safety parts. When replacing, be sure to use the specified one. Q'ty (No.70256) 3 *Sheet *Blister cover Packing Method TF-HF30(J)/TF-HF30-NK(J) *Tray 1 2 Parts List Note : These parts which was marked (*) will not be able to supply as our service parts.
