Jvc TDW 709 Owners Manual

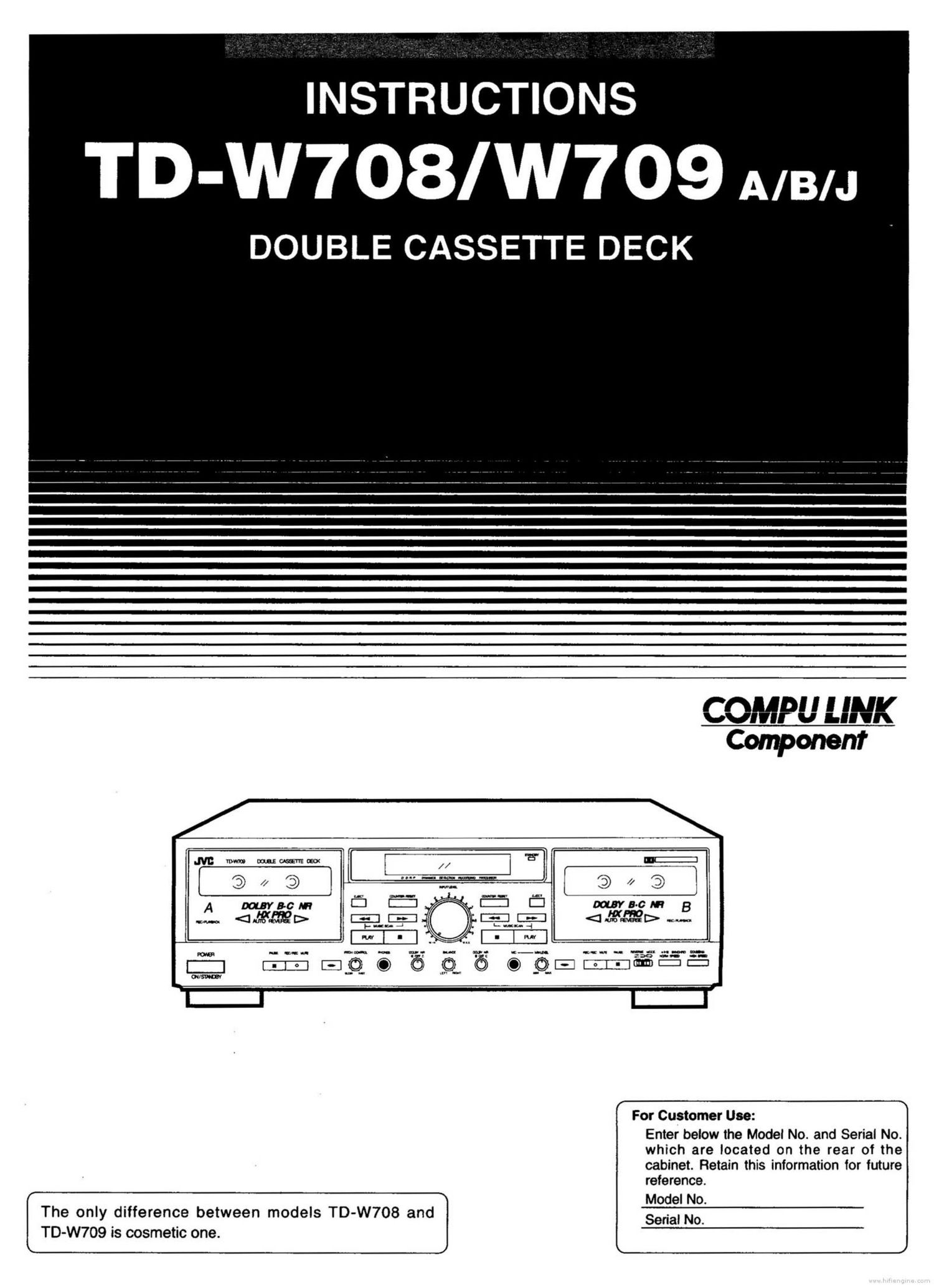

Page 1

INSTRUCTIONS

TD-W7 08/ W709 A/B/J

DOUBLE CASSETTE DECK

COMPU LINK
Component

l

The only difference between models TD-W708 and
TD-W709 is cosmetic one.

l

For Customer Use:

Enter below the Model No. and Serial No.
which are located on the rear of the
cabinet. Retain this information for future

reference.
Model No.

Serial No.

\

Page 2

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION 'TO REDUOETHE RISK OF ELECTRIC
SHOCK. DO NOT REMOVE COVER (OR BACK)
NO USER OENICEAILE PART. INSIDE
REFER SERVICING TO QUALIFIED OEMOE PERSONNR'

The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
dangerous voltage within the products
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important'operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.

j *- I -

WARNING: .

TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR
MOISTURE.

THIS UNIT IS PRODUCED TO COMPLY WITH
DIRECTIVE 76/889/EEC.

IMPORTANT (In the United Kingdom)
Mains Supply (AC 240 V~, 50 Hz only)

DO NOT cut off the mains plug from this equipment. If the plug
fitted is not suitable for the power points in your home or the cable
is too short to reach a power point, then obtain an appropriate
safety approved extension lead or consult your dealer.

BE SURE to replace the fuse only with an identical approved type,
as originally fitted and to replace the fuse cover.

lf nonetheless the mains plug is cutoff ensure to remove the fuse
and dispose of the plug immediately, to avoid a possible shock
hazard by inadvertent connection to the mains supply.

DO NOT make any connection to the terminal which is marked
with the letter E or by the safety earth symbol or coloured green or
green-and-yellow.

The wires in the mains lead on this product are coloured in
accordance with the following code:

Blue to N (Neutral) or Black
-'-
Brown to L (Live) or Red

As these colours may not correspond with the coloured markings
identifying the terminals in your plug proceed as follows:

The wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red.

IF IN DOUBT-CONSULT A COMPETENT ELECTRICIAN.

Please study this instruction manual carefully before
starting to operate the unit, in order to use the unit
correctly. We take no responsibility for any problems
resulting from misuse of this unit by operating this
equipment other than instructed in this manual.

WARNING (In the United Kingdom)

Pre-recorded tapes, records or discs should be re-
recorded without the consent of the owners of copyright in
the sound recording and in any copyright musical or
literary work embodied in that recording as this constitutes
an infringement of copyright.

INFORMATION (FOR U.S.A.)

This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment

off and on, the user is encouraged to try to correct
the interfence by one or more of the following
measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment
and receiver.

- Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.

- Consult the dealer or an experienced radio / TV
technician for help.
