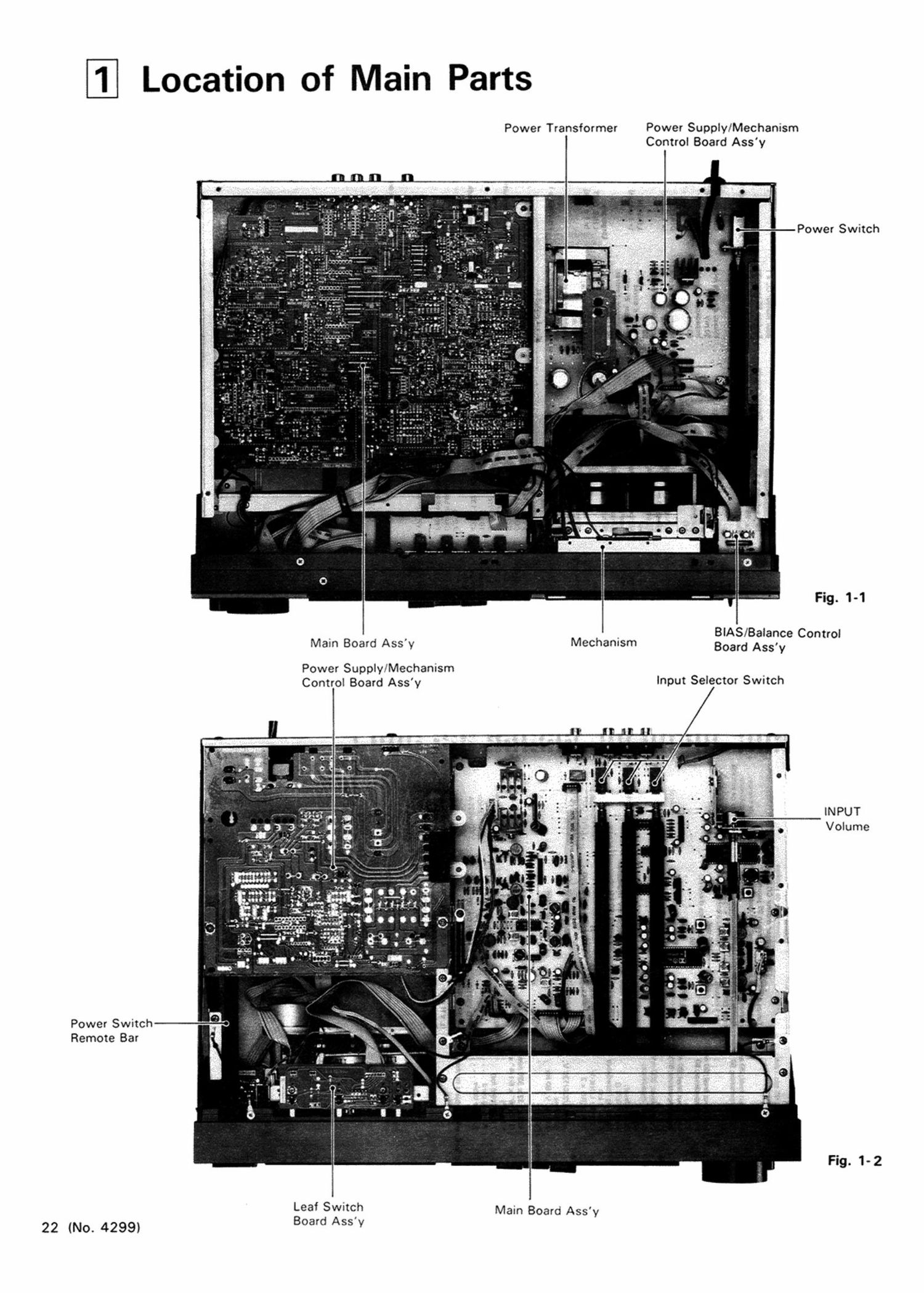

1 Location of Main Parts
Power Transformer Power Supply/Mechanism
Control Board Ass'y
Power Switch
Fig. 1-1
. BIAS/Balance Control
Mam Board Assy Mechamsm Board Ass'y
Power Supply/Mechanism
Control Board Assy Input Selector Switch
INPUT
Volume
Power Switch
Remote Bar
Fig. 1- 2
Leaf Switch Main Board Assy
22 (No. 4299) Board ASS v
Page 2
I Mechanism
I Front Side
Capstan Motor
Pinch Roller
I Rear Side
Reel Motor Cam Motor
Supply Reel
Takeup Reel
Idler
Erase Head Pinch Roller
Recording head Playback Head
Cam Motor Reel Motor Cam Switch Board
Belt
Flywheel Capstan MotOr
Motor Bracket
(No. 4299) 23
