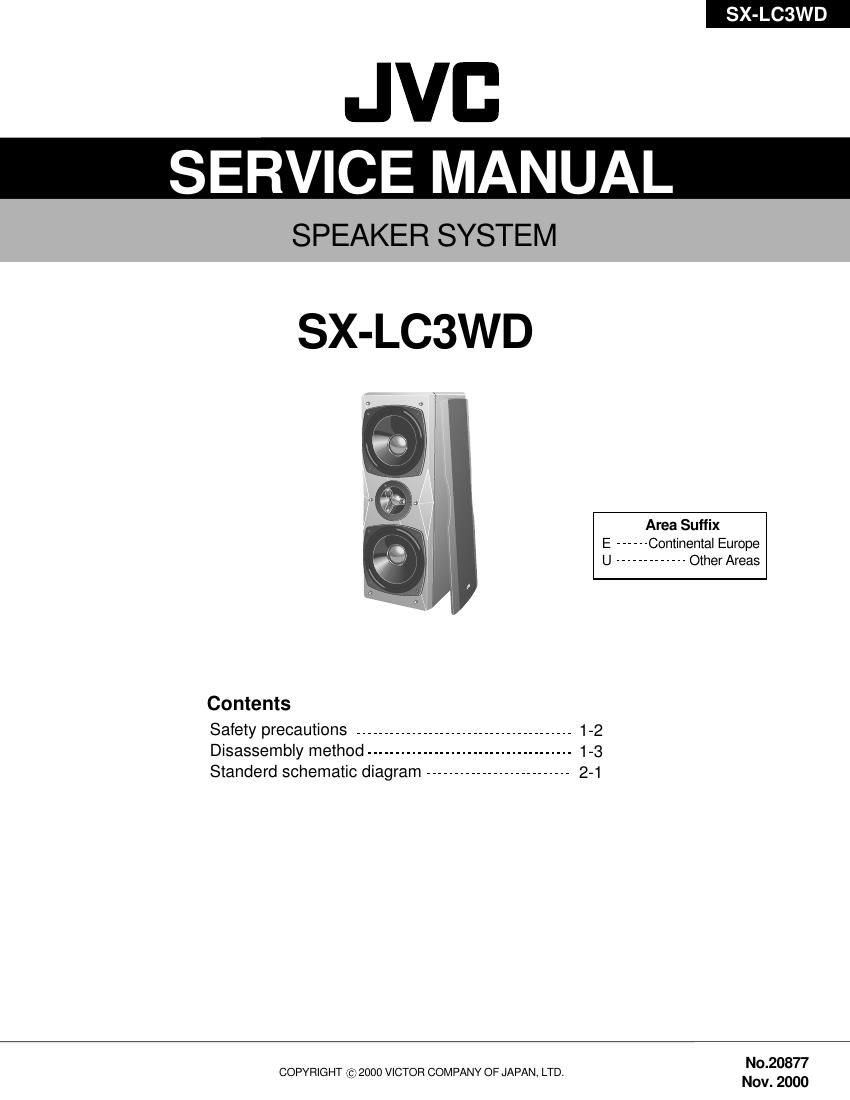

Jvc SXLC 3 WD Service Manual

Page 1

Page 2

SX-LC3WD 1-3 1. Remove the front net from the six holders that are fixing the front net. Removing the front net. Remove the three screws A attaching the tweeter using a hexagon wrench. Remove the speaker cord (Yellow, Black). Removing the front net. Remove the eight screws B on both sides of the woofer using a hexagon wrench. Remove the speaker cord (Red, Black) on both sides of the woofer. Removing the front net. Removing the tweeter. Removing the woofer of right side. Remove the sound absorbent material inside of the speaker box. Remove the four screws C attaching the net walk assembly. Lift the net walk assembly. Disassembly method Removing the front net (See Fig.1) Removing the tweeter (See Fig.2&3) 1. 2. Removing the woofer (See Fig.2&4) 1. 2. Removing the net walk assembly (See Fig.5) 1. 2. 3. A B B C C Holder Front net Tweeter Woofer (L)Holder Woofer (R) Woofer (L) Woofer (R) TweeterSpeaker cord (Yellow/Black) Speaker cord (Red/Black) Speaker cord (Red/Black) Woofer (R) Woofer (L) Caution Care should be taken not to turn the speaker face down. Turning the speaker face down may damage the edges of the speaker. Net walk assembly Fig.1 Fig.2 Fig.3 Fig.4 Fig.5
