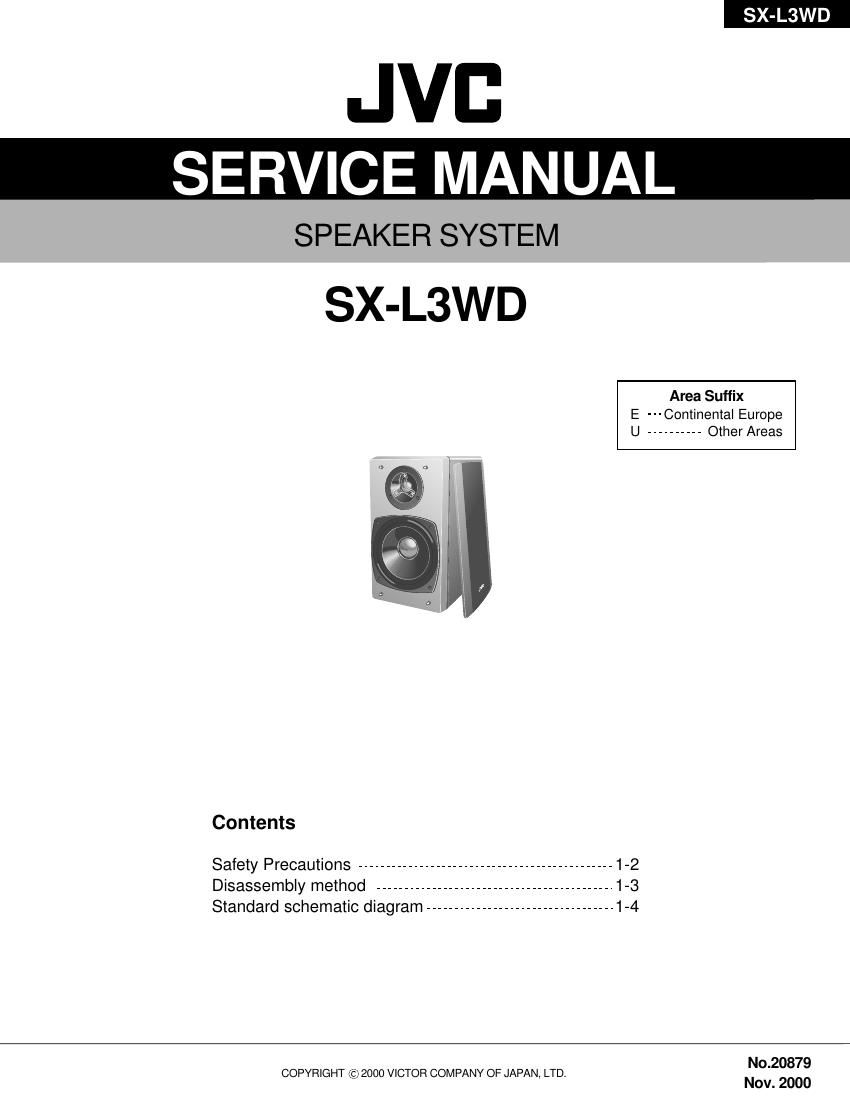

Jvc SXL 3 WD Service Manual
This is the 4 pages manual for Jvc SXL 3 WD Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc SXL 3 WD Service Manual (Ocr-read)
Page 1
SX-L3WD 1-2! Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of preforming repair of this system. Safety precaution
Page 2
SX-L3WD 1-3 C C Holder Holder B BA Front net Tweeter Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5Woofer WooferTweeter Net walk assemblySpeaker cord (Yellow, Black) Speaker cord (Red, Black) Caution Care should be taken not to turn the speaker face down. Turning the speaker face down may damage the edges of the speaker. Disassembly method Removing the front net (See Fig. 1) Remove the front net from the four holders that are fixing the front net. 1. Removing the tweeter (See Fig. 2&3) Removing the front net. Remove the three screws A attaching the tweeter using a hexagon wrench. Remove the speaker cord (Yellow, Black). 1. 2. Removing the woofer (See Fig. 2&4) Removing the front net. Remove the four screws B attaching the woofer using a hexagon wrench. Remove the speaker cord (Red, Black). 1. 2. Removing the net walk assembly (See Fig. 5) Removing the front net. Removing the tweeter. Removing the woofer. Remove the sound absorbent material inside of the speaker box. Remove the four screws C attaching the net walk assembly. Lift the net walk assembly. 1. 2. 3.
