Jvc SUDH 1 JE Service Manual
This is the 18 pages manual for Jvc SUDH 1 JE Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc SUDH 1 JE Service Manual (Ocr-read)

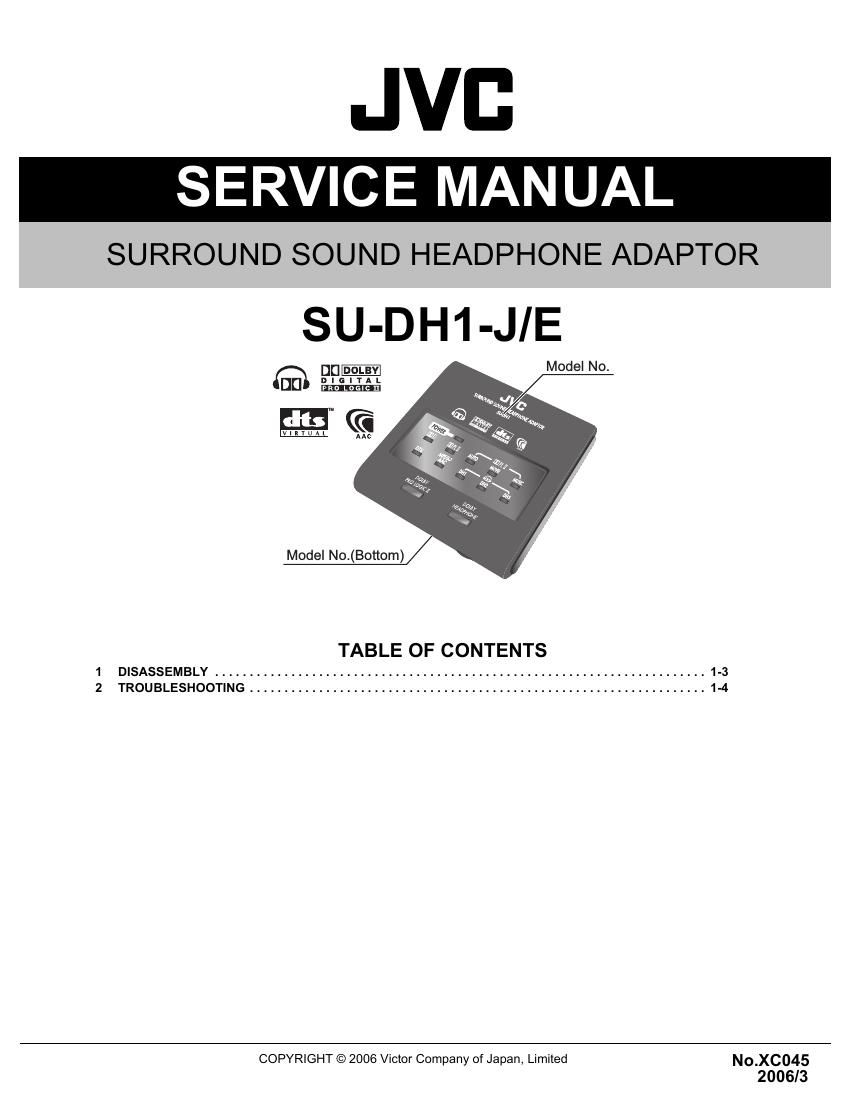

Page 1
JVB
SERVICE MANUAL
SURROUND SOUND HEADPHONE ADAPTOR
SU-DH1-JIE
DU_ Model No.
DU
c
Model No.(Bottom)
TABLE OF CONTENTS
1 DISASSEMBLY ....................................................................... 1-3
2 TROUBLESHOOTING .................................................................. 1-4
COPYRIGHT © 2006 Victor Company of Japan, Limited N0.XC045
2006/3
Page 2
SPECIFICATION
SU-DH1-J/E
Playable format Dolby Digital (Dolby Surround EX), Dolby Pro Logic II, DTS (DTS-ES 61oh),MPEG-2 AAC, PCM
(Fs=44.1kHz, 48kHz)
Surround function Dolby Headphone (DH1/DH2/DH3), Dolby Pro Logic II (AUTO/MOVIE/MUSIC)
Input terminals Optical digital signal mini jack x 1, LINE IN signal cord with Gold plated stereo mini plug (3.5mm) x1
Headphone output Stereo mini jack x 1
Power requirements Alkaline AA battery (DC 1.5V) x 2
Battery life approx. 10hours (using Alkaline AA battery), approxt 25hours (using Manganese AA battew)
Dimensions 82mm X 20mm X 86mm (W/H/D)
Mass approx. 999 (include Manganese AA battery)
Accessories Manganese AA battery (RGP) X 2 (for initial use), Carrying pouch x 1, Dual plug adaptor x 1
1-2 (Notxco45)
