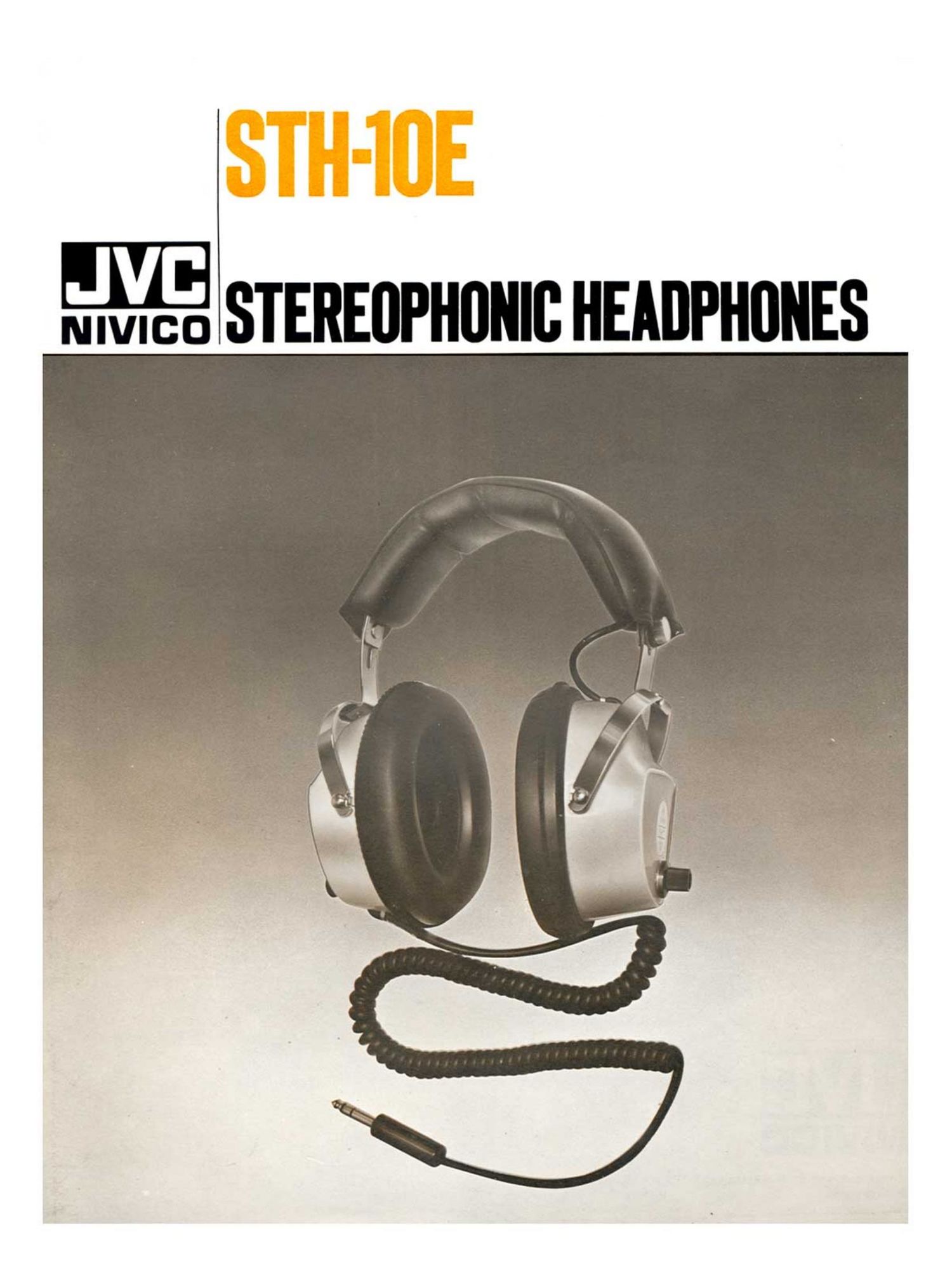

Jvc STH 10 E Brochure

Page 2

designed with the modified escapist in mind-the person who likes
to get away from it all while staying in the midst of it all.
Put on some favorite records or tapes. slip the headphones on

reat Esca 8
and you're transported from the raucous, irksome everyday noises p

to the blissful calm of fine stereo music. Y0u escape. but the

scunds don't. They never have the chance to diffuse and war with

each other or with other noises before y0u get to hear them.

The STH-lOE operates over a wide 20 to 20,000Hz frequency
range and has a distortion factor of less than 170 at rated Output
1mW . Featuring a moving coil design. each headphone has f0ur
holes in the back of the speaker. three of them blocked to better
achieve a flat frequency characteristic. Each is also equipped
with a large 70mm diaphragm to obtain better radiation effects
even at the lowest frequencies. The STHJOE also features an
adjustable headband and ultra-soft ear pads. for increased com-
fort and enjoyment.

JVC 's STH-lOE. The finest stereo headphones y0u can buy.
No getting away from that.
Dynamic Ton. Quality
The STH-lOE, a moving coil type set, features 70mm dia-
phragms which allow excellent radiation at l0w frequency levels.
Their parabolic-Curve shape permits a wide 20 to 20.000Hz in
frequency response. and the special acoustic design helps render
a flatter frequency characteristic.
Doublmcushion Ear Pads
The STHAIOE's ear pads c0ver both the inside and outside of the
ears, fitting the ear holes perfectly, thus preventing heavy bass
50und below SOHz from escaping. The inner cushions effectively
damp the resonance occming in the front cavity and prevent
p055ible peak and dip in the important midranges.
Moving Coil Typo Speakers
Each moving coil type speaker in the STH-IOE has four 12mm
diameter rOund holes, three of them plugged with felt to damp
the resonance in the rear caVity and further insure a flat frequency
characteristic without a peak or dip.
Parabolic~curvod Diaphragms
These are one of the secrets to the STHJOE's wide frequency
response. which reaches as high as 20.000Hz. They enable the
set to offer an impedance characteristic that remains flat almost
over its entire frequency response range. with only a slight rise
at the high end. As a result provided a good protection resistOr
is also used the tone quality is not affected in the least. Highly
efficient, the STH-IOE produces inescapably finer stereo scund at
an input of only 1 or 2 millivwatts.

A Design to Do Hoard From

As the illustration indicates, the headband is completely adjust-
able f0r individual head and ear positioning. and can be tilted
right or left as desired. JVC has used soft artificial leather and
double cushion design on the ear pads for maximum comfort.

These superior quality stereo headphones from JVC were '6

SPECIFICATIONS

Type: Moving coil

Frequency response: 20~20,000Hz

Impedance: 8.)

Nominal input: 1mW

Max. rated input: SOOmW per channel
Distortion: Less than lfi'b at input of 1mW
Cord: 3 meters long curled cord with 3-pin plug
Weight w o cord 3603

Diameter of cone: 70mm

Weight of cone paper: 678mg

Diameter of coil: 13.2mm

Total flux: 9.000 maxwells

Flux density. 6.800 gausses

* Design and speoficofions SUbleCI Io change wiihow noIlCe

DISTRIBUTED BY

NIVICD

VICTOR COMPANY OF JAPAN, LIMITED
TOKYO JAPAN

Printed in Japan
F YO7512022NN
