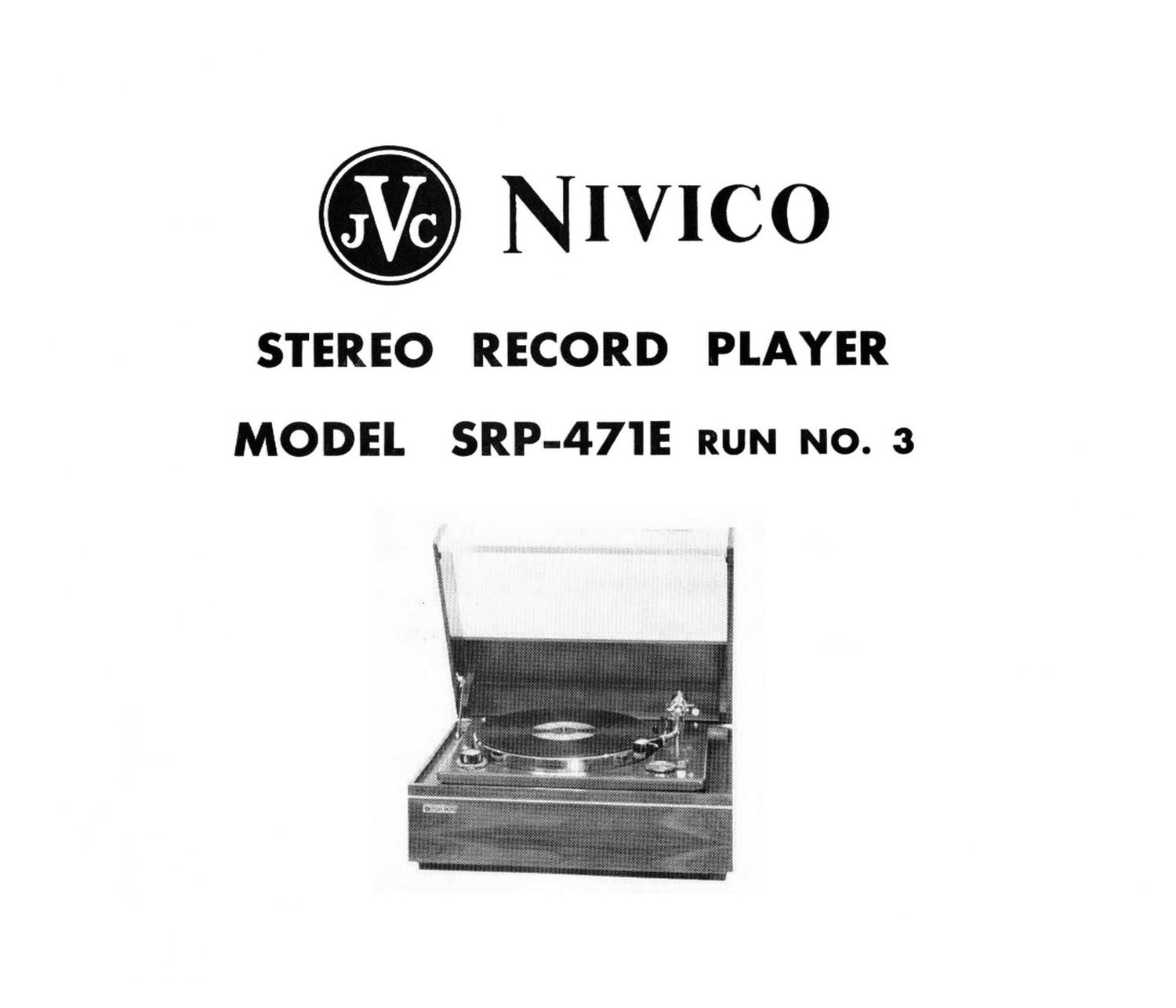

STEREO RECORD PLAYER
MODEL SRP-47'IE RUN No. 3

Page 2

l FEATURES I

FEATHER TOUCH SYSTEM
Landing of the tone arm on and off the record is

made automatically by the FEATHER-TOUCH SYS

TEM for record protection.

PERFECT TONE ARM
Perfectly balanced on all directions for ideal perfor-

mance and protection of the record.

MAGNETIC CARTRIDGE WITH DIAMOND NEEDLE

A moving magnet type cartridge is employed.

SlX~ POLE OUTER-ROTOR CONDENSER MOTOR
Professional combination of six pole and outer rotor
system for the best lIi-Fi phonomotor. Outerrrotor

features the utmost stability and compactness develop-

ped by the NIVICO engineering.

DRIVING WHEEL SYSTEM (PAT. PEND.)
Driving wheel inserted additionally between turntable
and conventional idler wheel absorbs any of vibrations.
increasing signal to noise ratio of the record per-

Iormance.

[\D

TURNTABLE

ll inch turntable for wow flutter free record per

Iormance.
UNIVERSAL SUPPLY TRANSFORMER
'lhis player can be adjusted for use on IOO~240 volts

supply.

I INSTALLATION PRECAUTION |

This player is designed for use on l00~240 volt, 50/60
Hz power supply. Before connecting power cord plug
to your house current outlet. please make sure that
the set is properly adjusted for your supply voltage.

To adjust. connect a voltage selecting plug at the rear
of player making sure that the arrow marking on that

plug matches the voltage of your AC power source as

shown Fig. I.
