Jvc SRMV 50 US Service Manual

Page 1

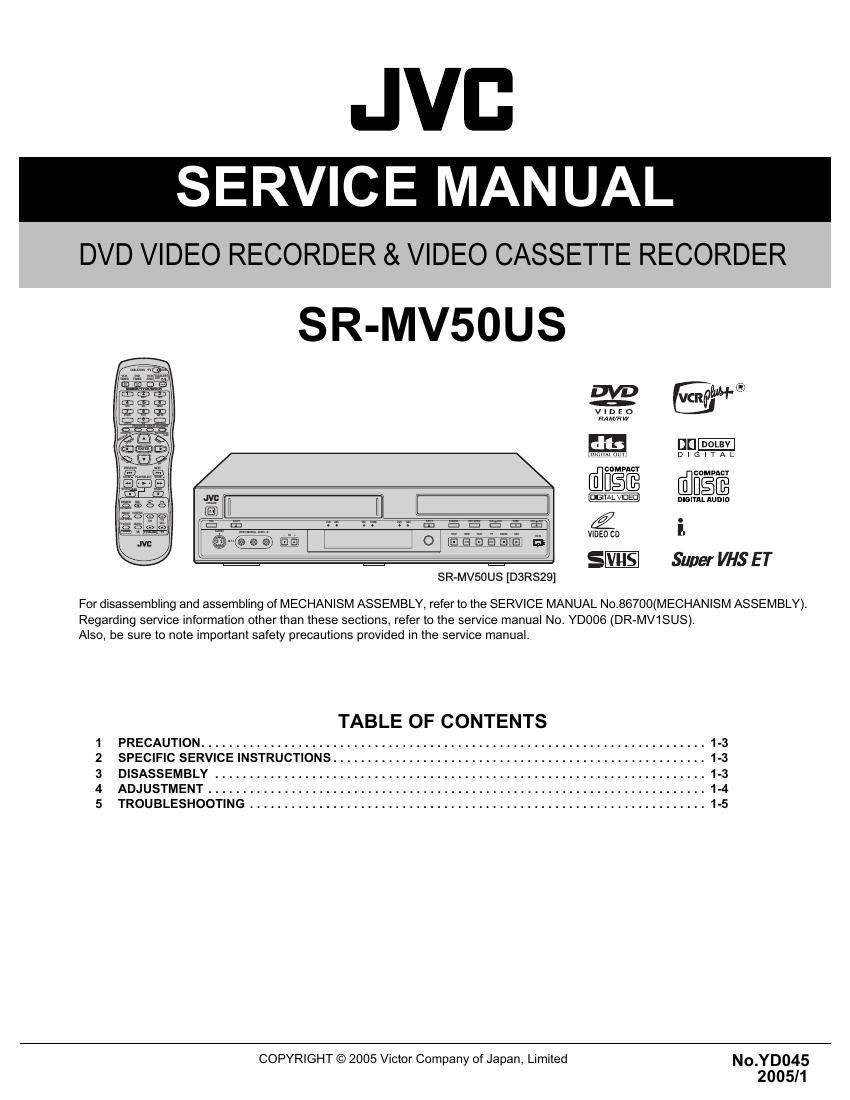

JVC

SERVICE MANUAL

DVD VIDEO RECORDER & VIDEO CASSETTE RECORDER

SR-MV5OUS

®
fl mlw
was:
pm Du-
mmwnm D | G I T A L

chFACY

USIB [flfigé

E

[I J DIGITALAUDID
2: z:- -:= E E. E E E. El Z i
vmaocn

5- Super VHS ET

SR-MVSOUS [D3R829]

For disassembling and assembling of MECHANISM ASSEMBLY, refer to the SERVICE MANUAL Not86700(MECHANISM ASSEMBLY)
Regarding service information other than these sections, refer to the service manual Not YD006 (DR-MVI SUS)I
Also, be sure to note important safety precautions provided in the service manual.

TABLE OF CONTENTS

1 PRECAUTION ......................................................................... 1-3
2 SPECIFIC SERVICE INSTRUCTIONS. . ........................ 1-3
3 DISASSEMBLY ....................................................................... 1-3
4 ADJUSTMENT ........................................................................ 1-4
5 TROUBLESHOOTING .................................................................. 1-5
COPYRIGHT © 2005 Victor Company of Japan, Limited No_YD045

2005/1

Page 2

SPECIFICATION

GENERAL

Power requirement

AC 120 V, 60 Hz

Power consumption

Power on 55 W
Power off 13.7 W
Temperature
Operating 5°C to 35°C (41°F to 95°F)
Storage -20°C to 60°C (-4°F to140°F)
Operating position Horizontal only
Dimensions (W X H X D) 435 mm X 96 mm X 343 mm (17-3/16" x 3-13/16"><13-1/2")
Weight 6.2 kg (13.7 lbs)
Input/Output
S-video input Y: 0.8 - 1.2 Vp-p, 75 Q, C: 0.2 - 0.4 Vp-p, 75 S2
S-video output Y: 1.0 Vp-p, 75 Q, C: 0.3 Vp-p, 75 Q
Video input 0.5 - 2.0 Vp-p, 75 (2 (pin jack)
Video output 1.0 Vp-p, 75 :2 (pin jack x1, BNC x 1)
Audio input -8 dB, 50 k9 (pin jack), Corresponding to mono (left)
Audio output -8 dB, 1 k9 (pin jack)
i.Link 4-pin for DV input

Component video output

Y: 1.0 Vp-p, 75 o, CB/CR, PB/PR: 0.7 Vp-p, 75 9
Corresponding to copy protection

Remote Input

23.5 mm

Serial Command

D-SUB 9-PIN

Digital audio output

Optical: -18 dBm, 660 nm, Coaxial: 0.7 Vp-p, 75 52,
Corresponding to Dolby Digital and DTS Digital Surround
Bit stream Selectable in digital audio output setting menu

VIDEO/AUDIO (DVD deck)

Recording format

DVD-RAM: DVD Video Recording format
DVD-R: DVD-Video format
DVD-RW: DVD-Video format, DVD Video Recording format

Recording time

Maximum 8 hours (with 4.7 GB disc)
(XP): Approx. 1 hour, (SP): Approx. 2 hours, (LP): Approx. 4 hours
(EP): Approx. 8 hours, (FR): Approx. 1 hour - 8 hours

Audio recording system

Dolby Digital (2 ch), Linear PCM (XP mode only)

Video recording compression system

MPEG2 (CBR/VBR)

VIDEO/AUDIO (VCR Deck)

Signal system

NTSC color signal and EIA monochrome signal, 525 lines/60 fields

Recording system

DA4 (Double AZimuth) head helical scan system

Format S-VHS/VHS NTSC standard
Maximum recording time
(SP) 210 min. with ST-210 video cassette
(EP) 630 min. with ST-210 video cassette

Signal-to-noise ratio

45 dB

Horizontal resolution

230 Iines(VHS) / 400 Iines(S-VHS)

Frequency range

70 Hz to 10,000 Hz (Normal audio) 20 Hz to 20,000 Hz (Hi-Fi audio)

TUNERITIMER
Tuning system Frequency synthesized tuner
Channel coverage VHF: Channels 2 - 13, UHF: Channels 14 - 69,CATV: 113 Channels
RF output Channel 3 or4 (switchable: preset to Channel 3 when shipped) 75 Q, unbalanced
Memory backup time Approx. 5 seconds
ACCESSORIES

Provided accessories

RF cable, Audio cable, S-video cable, Infrared remote control unit, "AA battery x 2

- Specifications shown are for SP mode unless othen/vise specified.

- E.& O.E. Design and specifications subject to change without notice.

- VCR Plus+ arid PIusCode are registered trademarks of Gemstar Development Corporation.

- The VCR Plus+ system is manufactured under license from Gemstar Development Corporation.

' DSSTM is an official trademark of DIRECTV, Inc., a unit of GM Hughes Electronics. DISH NetworkTM is a trademark of Echostar Communications

Corporation.

' Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
- "DTS" and "DTS Digital Out" are trademarks of Digital Theater Systems, Inc.

- i(i.Link) refers to the lEEE1394-1995 industry specification and extensions thereof. Thei logo is used for products compliant with the i.Link stan-

dard.

1-2 (N0.YD045)
