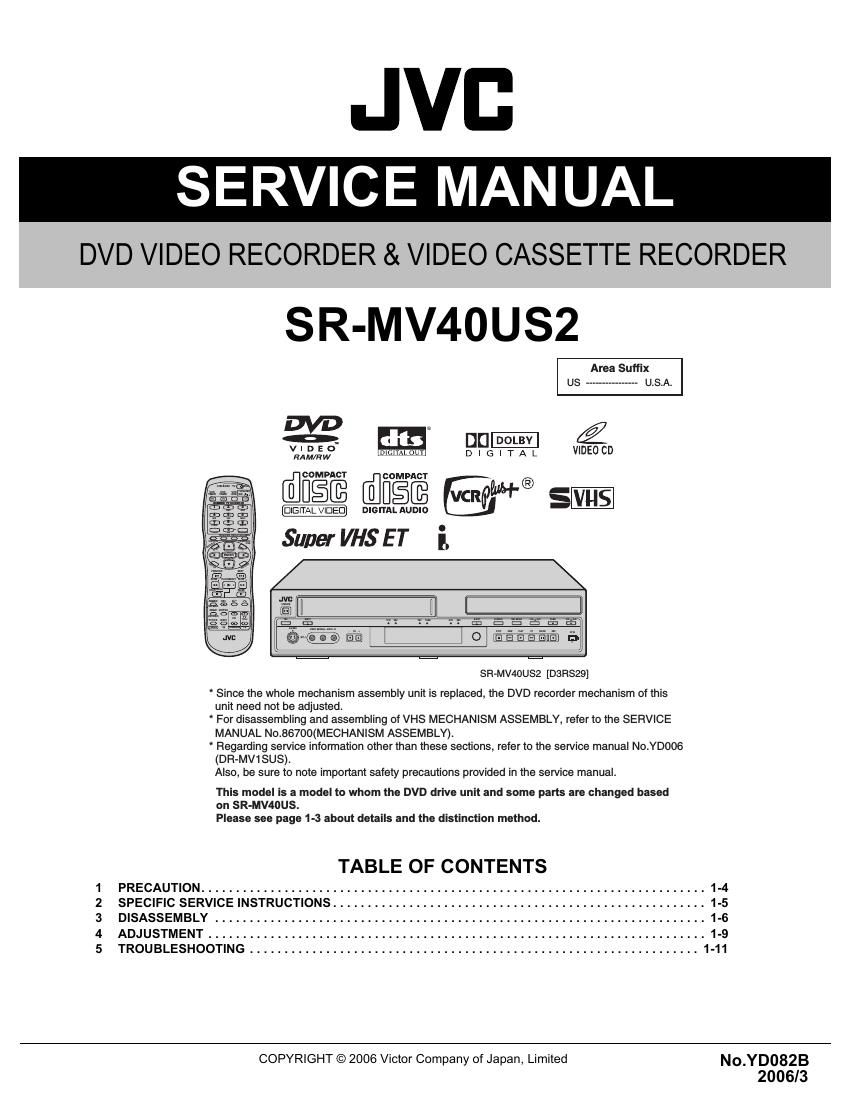

JVC

SERVICE MANUAL

DVD VIDEO RECORDER & VIDEO CASSETTE RECORDER

SR-MV4OUSZ

Area Suffix
US rrrrrrrrrrrrrrrr U.S.A.
o oo-
éllmfv? D | G I T A L VIDEO co

@m @U§@ MW 5-

S-uner VHS ET I.

-EEJEIEIEIDEI g.

SFIVMV4OUSZ [DBRSZQ]

" Since the whole mechanism assembly unit is replaced, the DVD recorder mechanism of this
unit need not be adjusted.

For disassembling and assembling of VHS MECHANISM ASSEMBLY, refer to the SERVICE
MANUAL No.86700(MECHANISM ASSEMBLY).

" Regarding service information other than these sections, refer to the service manual No.YD006
(DR-MVISUS).
Also, be sure to note important safety precautions provided in the service manual.

This model is a model to whom the DVD drive unit and some parts are changed based
on SR-MV40US.
Please see page 1-3 about details and the distinction method.

TABLE OF CONTENTS

1 PRECAUTION ...................... . . 1-4
2 SPECIFIC SERVICE INSTRUCTIONS. . . . .. 1-5
3 DISASSEMBLY ....................................................................... 1-6
4 ADJUSTMENT ........................................................................ 1-9
5 TROUBLESHOOTING ................................................................. 1-11
COPYRIGHT © 2006 Victor Company of Japan, Limited No_YD0823

2006/3

Page 2

SPECIFICATION

GENERAL

Power requirement

AC 120 V, 60 Hz

Power consumption

Power on 55 W
Power off 13.7 W
Temperature
Operating 5°C to 35°C (41°F to 95°F)
Storage -20°C to 60°C (-4°F to140°F)
Operating position Horizontal only
Dimensions (W x H x D) 435 mm x 96 mm x 343 mm (17-3/16" x 3-13/18" x 13-1/2")
Weight 6.2 kg (13.7 lbs)
Input/Output
S-video input Y: 0.8 - 1.2 Vp-p, 75 Q, C: 0.2 - 0.4 Vp-p, 75 S2
S-video output Y: 1.0 Vp-p, 75 Q, C: 0.3 Vp-p, 75 Q
Video input 0.5 - 2.0 Vp-p, 75 (2 (pin jack)
Video output 1.0 Vp-p, 75 :2 (pin jack x1, BNC x 1)
Audio input -8 dB, 50 k9 (pin jack), Corresponding to mono (left)
Audio output -8 dB, 1 k9 (pin Jack)
i.Link 4-pin for DV input

Component video output

Y: 1.0 Vp-p, 75 o, CB/CR, PB/PR: 0.7 Vp-p, 75 9
Corresponding to copy protection

Remote Input

23.5 mm

Digital audio output

Optical, Coaxial
Corresponding to Dolby Digital and DTS Digital Surround
Bit stream Selectable in digital audio output setting menu

VIDEO/AUDIO (DVD Deck)

Recording format

DVD-RAM: DVD Video Recording format
DVD-R: DVD-Video format
DVD-RW: DVD-Video format, DVD Video Recording format

Recording time

Maximum 8 hours (with 4.7 GB disc)
(XP): Approx. 1 hour, (SP): Approx. 2 hours, (LP): Approx. 4 hours
(EP): Approx. 8 hours, (FR): Approx. 1 hour - 8 hours

Audio recording system

Dolby Digital (2 ch), Linear PCM (XP mode only)

Video recording compression system

MPEGZ (CBR/VBR)

VIDEO/AUDIO (VCR Deck)

Signal system

NTSC color signal and EIA monochrome signal, 525 lines/60 fields

Recording system

DA4 (Double Azimuth) head helical scan system

Format S-VHS/VHS NTSC standard
Maximum recording time
(SP) 210 min. with ST-210 video cassette
(EP) 630 min. with ST-210 video cassette

Signal-to-noise ratio

45 dB

Horizontal resolution

230 Iines(VHS) / 400 Iines(S-VHS)

Frequency range

70 Hz to 10,000 Hz (Normal audio) 20 Hz to 20,000 Hz (Hi-Fi audio)

TUNERITIMER
Tuning system Frequency synthesized tuner
Channel coverage VHF: Channels 2 - 13, UHF: Channels 14 - 69,CATV: 113 Channels
RF output Channel 3 or 4 (switchable; preset to Channel 3 when shipped) 75 Q, unbalanced
Memory backup time Approx. 5 seconds
ACCESSORIES

Provided accessories

RF cable, Audio cable, S-video cable, Infrared remote control unit, "AA battery x 2

- Specifications shown are for SP mode unless othen/vise specified.

- E.& O.E. Design and specifications subject to change without notice.

- VCR Plus+ arid PIusCode are registered trademarks of Gemstar Development Corporation.

- The VCR Plus+ system is manufactured under license from Gemstar Development Corporation.

' DSSTM is an official trademark of DIRECTV, Inc., a unit of GM Hughes Electronics. DISH NetworkTM is a trademark of Echostar Communications

Corporation.

' Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
- "DTS" and "DTS Digital Out" are trademarks of Digital Theater Systems, Inc.

- i(i.Link) refers to the lEEE1394-1995 industry specification and extensions thereof. The 3. logo is used for products compliant with the i.Link stan-

dard.

1-2 (No.YD0828)
