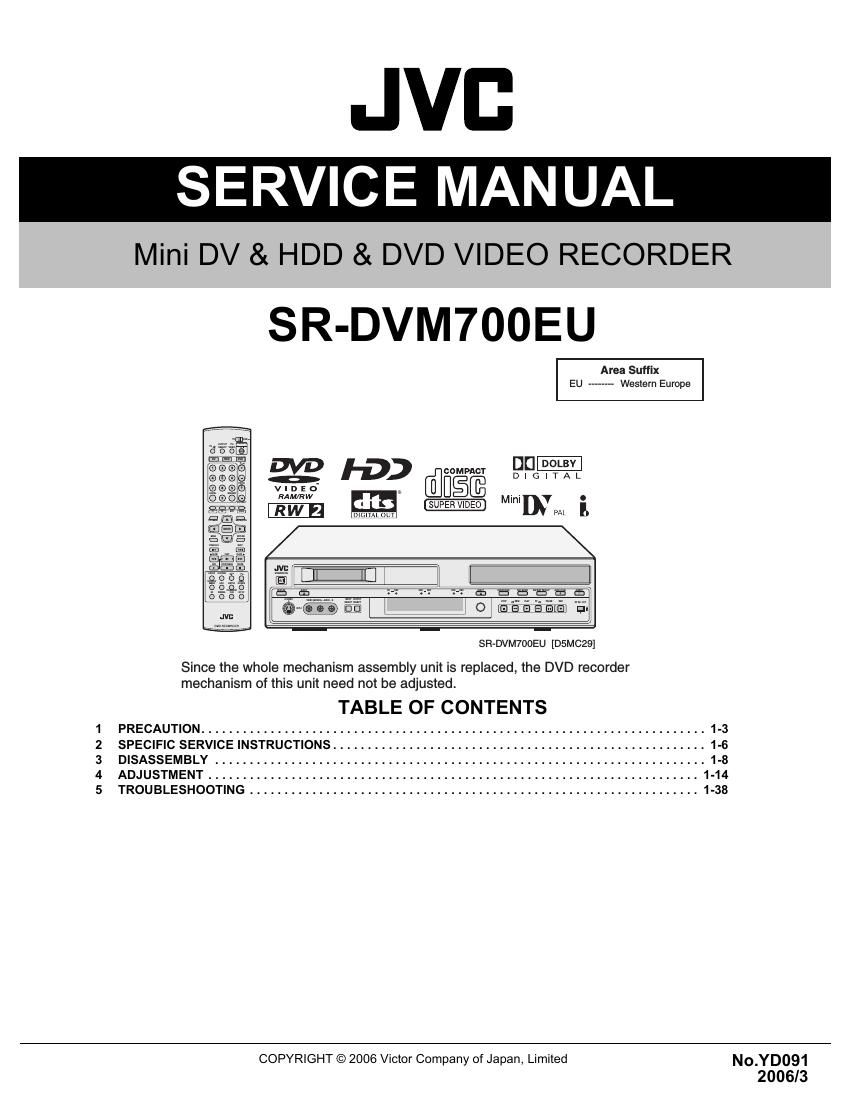

Jvc SRDVM 700 EU Service Manual

Page 2

SPECIFICATION

GENERAL

Power requirement

AC 220 V - 240 V~,50 Hz/60 HZ

Power consumption

Power on 42 W
Power off 5 W
Laser specification
For CD Wavelength: 770 to 810 nm
Output: 0.4 mW
For DVD Wavelength: 653 to 663 nm
Output: 1.0 mW
Temperature
Operating 5°C to 35°C
Storage -20°C to 60C
Operating position Horizontal only
Dimensions (WxHxD) 435 mm x 96 mm x 372 mm
Weight 5.8 kg
Input/Output
Video input 0.5 - 2.0 Vp-p, 75 :2 (pin jack)
Video output 1 Vp-p, 75 £2 (BNC)
Audio input -8 dB, 50 k9 (pin jack), Corresponding to mono (left)

Audio output

-8 dB, 1 k!) (pin Jack)

S-video input

Y: 0.8 - 1.2 Vp-p, 75 Q, C: 0.2 - 0.4 Vp-p, 75 £2

S-video output

Y: 1.0 Vp-p, 75 Q, C: 0.3 Vp-p, 75 Q

DV

4-pin for DV IN/OUT

Remote Input

63.5 mm Jack

Serial Command

D-SUB 9-PIN

Component video output

Y: 1.0 Vp-p, 75 o, CB/CR, PB/PR: 0.7 Vp-p, 75 9
Corresponding to copy protection

Digital audio output

Optical, Coaxial
Corresponding to Dolby Digital and DTS Digital Surround
Bit stream Selectable in digital audio output setting menu

VIDEO/AUDIO (DVD deck)

Recording time

Maximum 8 hours (with 4.7 GB disc)
(XP): Approx. 1 hour, (SP): Approx. 2 hours, (LP): Approx. 4 hours
(EP): Approx. 6 hours, (FR): Approx. 1 hour - 8 hours

Audio recording system

Dolby Digital (2 ch), Linear PCM (XP mode only)

Video recording compression system

MPEG2 (CBR/VBR)

VIDEO/AUDIO (HDD Deck)

Video recording compression system

MPEG2 (VBR)

Audio recording system

Dolby Digital (2 ch), Linear PCM (XP mode only)

Recording time

Maximum 473 hours (with 250 GB HDD)
(DV): Approx. 18 hours,(XP): Approx. 53 hours,(SP): Approx. 109 hours,(LP): Approx. 218 hours,
(EP): Approx. 328 hours,(FR): Approx. 473 hours

VIDEO/AUDIO (DV Deck)

Signal system

PAL colour signal, 625 lines/50 fields

Recording system

Digital Component Recording

Format DV format (SD mode)
Cassette Mini DV Cassette
Maximum recording time
(SP) (SP): 80 min. with M-DV80ME cassette
(LP) (LP): 120 min. with M-DV80ME cassette

Audio recording system

PCM 48 kHz, 16 bit (2 ch)/32 kHz, 12 bit (4 ch)

ACCESSORIES

AudioNideo cable,3-pin conversion plug (for UK use only),|nfrared remote control unit,"R6" battery x 2

Provided accessories |

' Specifications shown are for SP mode unless otherwise specified.

- E.& O.E. Design and specifications subject to change without notice.

- Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

- "DTS" and "DTS Digital Out" are trademarks of Digital Theater Systems, Inc.

- This unit plays back and records PAL and SECAM signals in PAL format. NTSC signals can also be played back on the DVD deck.

- This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copy-
right protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless othenNise
authorized by Macrovision. Reverse engineering or disassembly is prohibited.

1-2 (No.YD091)
