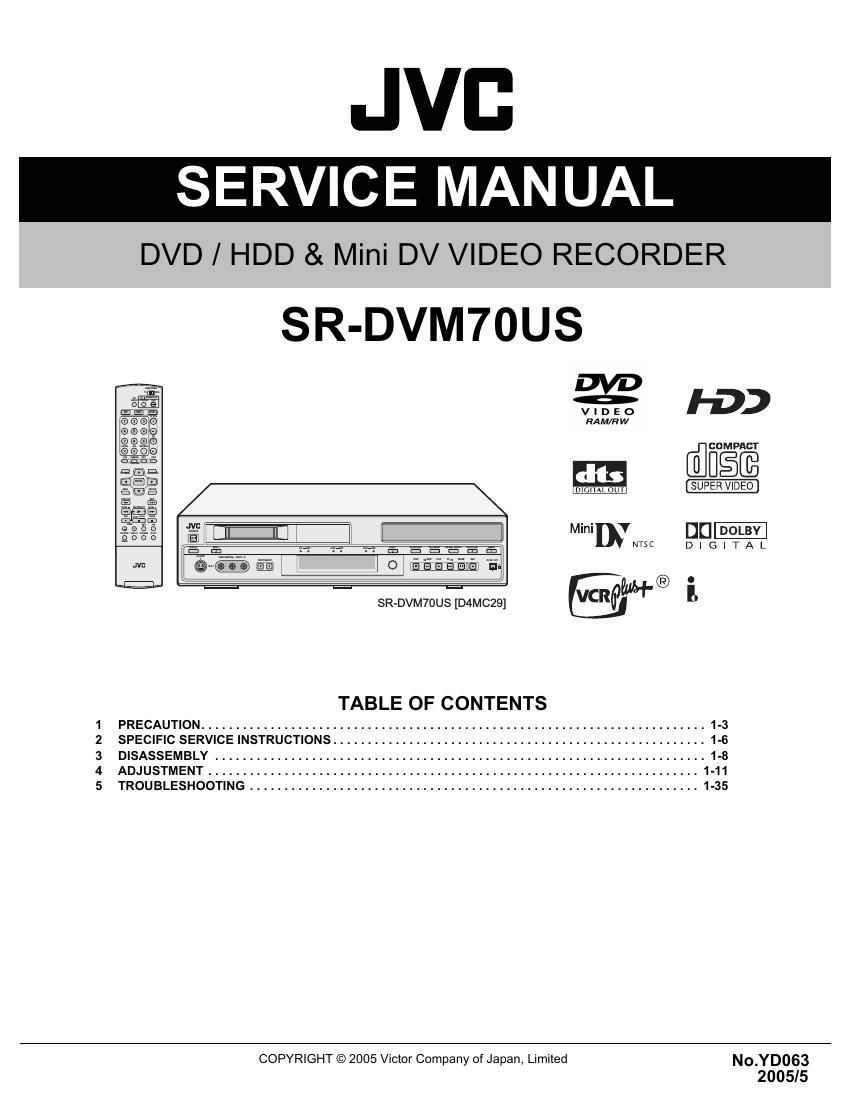

Jvc SRDVM 70 US Service Manual

Page 2

SPECIFICATION

GENERAL

Power requirement

AC 120 V, 60 HZ

Power consumption

Power on 49 W
Power off 15 W
Temperature
Operating 5"C to 35°C (41°F to 95°F)
Storage -20°C to 60°C (-4°F to 140°F)
Operating position Horizontal only
Dimensions (WxHxD) 435 mm x 96 mm x 372 mm (17-1/10" x 34/5" x 14-3/5")
Weight 6.2 kg (13.7 lbs)
Input/Output
Video input 0.5 - 2.0 Vp-p, 75 :2 (pin jack)
Video output 1 Vp-p, 75 52 (ENG)
Audio input -8 dB, 50 k9 (pin jack), Corresponding to mono (left)
Audio output -8 dB, 1 k!) (pin Jack)
S-video input Y: 0.8 - 1.2 Vp-p, 75 Q, C: 0.2 - 0.4 Vp-p, 75 £2
S-video output Y: 1.0 Vp-p, 75 Q, C: 0.3 Vp-p, 75 9
DV 4-pin for DV IN/OUT

Component video output

v: 1.0 Vp-p, 75 o, CB/CR, PB/PR: 0.7 Vp-p, 75 9
Corresponding to copy protection

Remote Input

03.5 mm Jack

Serial Command

D-SUB 9-PIN

Digital audio output

Optical, Coaxial
Corresponding to Dolby Digital and DTS Digital Surround
Bit stream Selectable in digital audio output setting menu

VIDEO/AUDIO (DVD deck)

Recording time

Maximum 8 hours (with 4.7 GB disc)
(XP): Approx. 1 hour, (SP): Approx. 2 hours, (LP): Approx. 4 hours
(EP): Approx. 6 hours, (FR): Approx. 1 hour - 8 hours

Audio recording system

Dolby Digital (2 ch), Linear PCM (XP mode only)

Video recording compression system

MPEG2 (CBR/VBR)

VIDEO/AUDIO (HDD Deck)

Video recording compression system

MPEG2 (VBR)

Audio recording system

Dolby Digital (2 ch), Linear PCM (XP mode only)

Recording time

Maximum 300 hours (with 160 GB HDD)
(XP): Approx. 34 hours, (SP): Approx. 69 hours, (LP): Approx. 138 hours
(EP): Approx. 209 hours, (FR): Approx. 300 hours

VIDEO/AUDIO (DV Deck)

Signal system

NTSC color signal and EIA monochrome signal, 525 lines/60 fields

Recording system

Digital Component Recording

Format DV format (SD mode)
Cassette Mini DV Cassette

Maximum recording time

(SP) (SP): 80 min. with M-DV80ME cassette

(LP) (LP): 120 min. with M-DV80ME cassette

Audio recording system PCM 48 kHz, 16 bit (2 ch)/32 kHz, 12 bit (4 ch)
TUNERITIMER
Tuning system Frequency synthesized tuner
Channel coverage VHF: Channels 2 - 13, UHF: Channels 14 - 69, CATV: 113 channels
Memory backup time Approx. 60 minutes

ACCESSORIES

Provided accessories |

RF cable, AudioNideo Cable, Infrared remote control unit, ""AA batten! x 2

- Specifications shown are for SP mode unless othenivise specified.

- E.& O.E. Design and specifications subject to change without notice.

- Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
- "DTS" and "DTS Digital Out" are trademarks of Digital Theater Systems, Inc.

' Cassettes marked Mini DV can be used with the DV deck of this unit. The DV deck can play back and record only PAL signals.
- VCR Plus+ and PlusCode are registered trademarks of Gemstar Development Corporation.

' The VCR Plus+ system is manufactured under license from Gemstar Development Corporation.

- DSS is an official trademark of DlRECTV, Inc., a unit of GM Hughes Electronics. DISH Network is a trademark of Echostar Communications Cor-

oration.

- I. (i.Link) refers to the |EEE1394-1995 industry specification and extensions thereof. Theilogo is used for products compliant with the i.Link stan-

dard.
