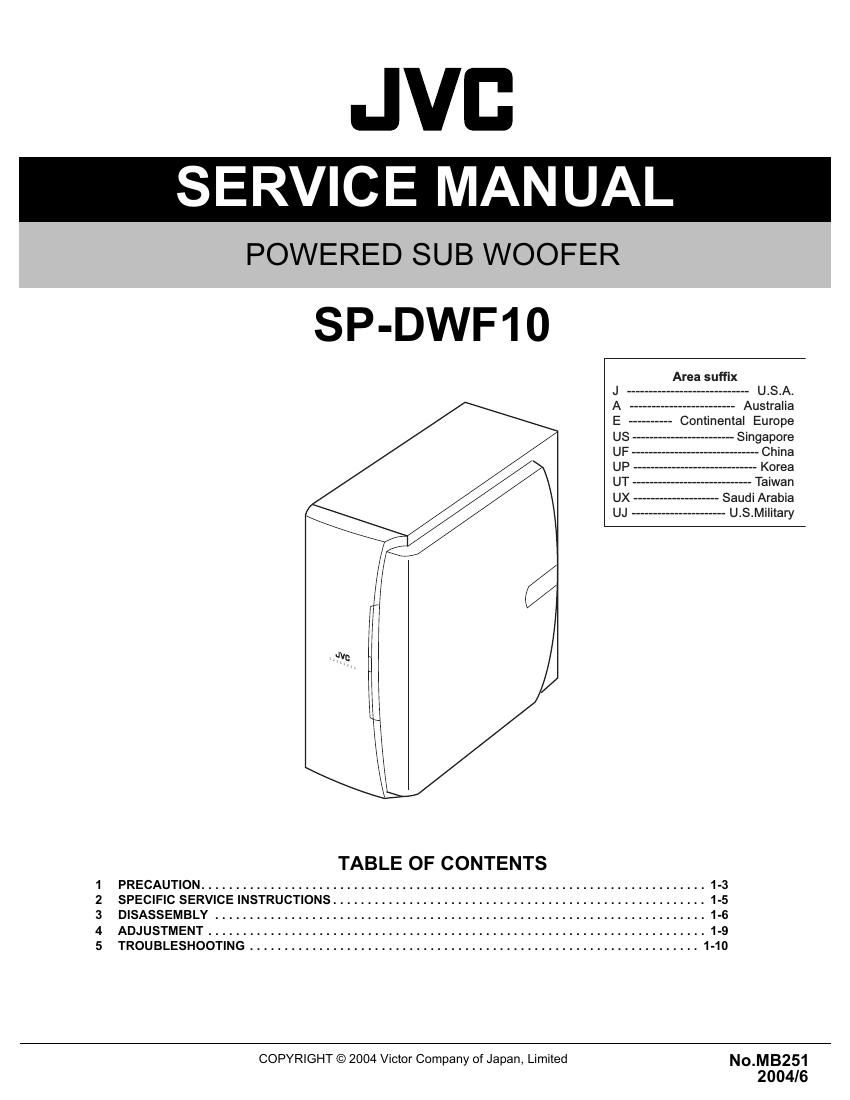

Page 1
Ulnth-L
JVC
SERVICE MANUAL
POWERED SUB WOOFER
SP-DWF1O
TABLE OF CONTENTS
PRECAUTION ......................................................................... 1-3
SPECIFIC SERVICE INSTRUCTIONS ...................................................... 1-5
DISASSEMBLY ....................................................................... 1-6
ADJUSTMENT ........................................................................ 1-9
TROUBLESHOOTING ................................................................. 1-10
Area suffix
J ---------------------------- U.S.A.
A ---- -------------- Australia
E ~-- Continental Europe
US -~ ---------- Singapore
UF --- ------ China
UP .. -- Korea
UT -- ---- Taiwan
UX -- Saudi Arabia
---< U.S.Military
COPYRIGHT © 2004 Victor Company of Japan, Limited
No.MB251
2004/6
Page 2
SPECIFICATION
Type Powered Subwoofer Bass-reflex type (magnetically shielded type)
Speaker 16.0 cm cone X 1 (6-5/16)
Frequency Range 32 HZ 200 Hz
Impedance 4 Q
Input terminals
INPUT (LOW-LEVEL)
Power requirements
AC 120V , 60 HZ
Output power of built-in amp
100 W (45 HZ, 4 £2, 10 % THD)
Power Handling Capacity
25W
Dimensions (W x H X D)
185 mm X 374 mm X 345 mm (7-5/16" X 14-3/ "X 13-5/8")
Mass
886 kg (19.6 lbs)
Design and specifications are subject to change without notice
1-2(NotM3251)
