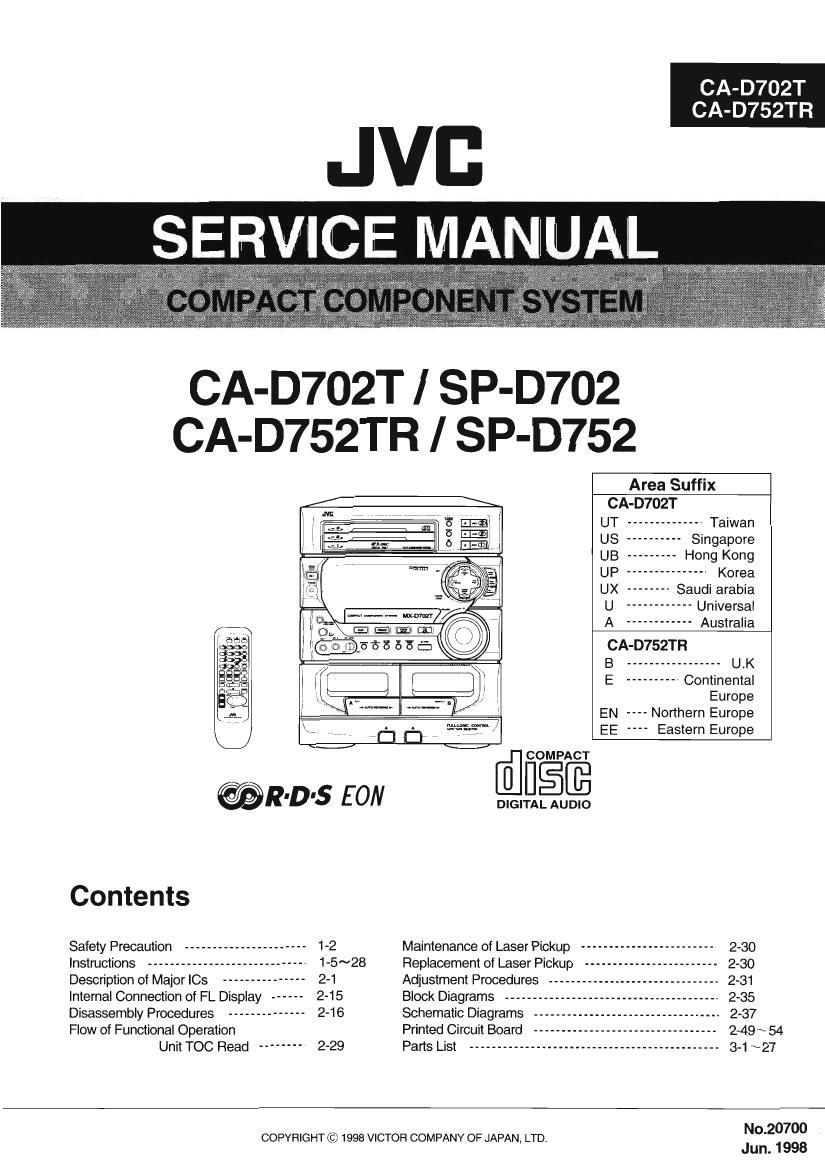

Jvc SPD 702 Service Manual

Page 1

CA-D702T
CA-D752TR

CA-D702T / SP-D702
CA-D752TR / SP-D752

Area Suffix
CA-D702T
UT -------------- Taiwan
US " - Sumapom
LIB -- Hong Kong
UP -- ------ Korea
UX -- Saudi arabia
U ------------ Universal
A ------------ Australia
CA-D752TR
B ----------------- U.K
E ---------- Continental
Europe
EN Northern Europe
EE Eastern Europe
flfigtfi
@R'D'S EON DIGITAL AUDIO
Contents
Safety Precaution ---------------------- 1-2 Maintenance of Laser Pickup ------------------------ 2-30
Instructions . 1-5~28 Replacement of Laser Pickup 2-30
Description of Major ICs --------------- 2-1 Adjustment Procedures 2-31
lntemal Connection of FL Display ------ 2-15 Block Diagrams -------- 2-35
Disassembly Procedures -------------- 2-16 Schematic Diagrams - 2-37
Flow of Functional Operation Printed Circuit Board - 2-49~54
Unit TOC Read -------- 229 Parts List --------------------------------------------- 3-1 N27
No.20700

COPYRIGHT (c) 1998 VICTOR COMPANY OF JAPAN, LTD.
Jun. 1998

Page 2

CA-D702T/D752TR

1-2

-Safety Precautions

1.This design of this product contains special hardware and many circuits and components specially
for safety purposes. For continued protection, no changes should be made to the original design
unless authorized in writing by the manufacturer Replacement parts must be identical to those
used in the original circuits. Services should be performed by qualified personnel only.

2. Alterations of the design or circuitry of the product should not be made. Any design alterations of
the product should not be made. Any design alterations or additions will void the manufacturers
warranty and will further relieve the manufacture of responsibility for personal injury or property
damage resulting therefrom.

3. Many electrical and mechanical parts in the products have special safety-related characteristics.
These characteristics are often not evident from visual inspection nor can the protection afforded
by them necessarily be obtained by using replacement components rated for higher voltage,
wattage, etc. Replacement parts which have these special safety characteristics are identified in
the Parts List of Service Manual. Electrical components having such features are identified by
shading on the schematics and by (A) on the Parts List in the Service Manual. The use of a
substitute replacement which does not have the same safety characteristics as the recommended
replacement parts shown in the Parts List of Service Manual may create shock, fire, or other
hazards

4. The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the
like to be separated from live parts, high temperature parts, moving parts and/or sharp edges
for the prevention of electric shock and fire hazard. When service is required, the original lead
routing and dress should be observed, and it should be confirmed that they have been returned
to normal, after re-assembling.

5. Leakage currnet check (Electrical shock hazard testing)
After re-assembling the product, always perform an isolation check on the exposed metal parts
of the product (antenna terminals, knobs, metal cabinet, screw heads, headphone jack, control
shafts, etc.) to be sure the product is safe to operate without danger of electrical shock.

Do not use a line isolation transformer during this check.

. Plug the AC line cord directly into the AC outlet. Using a "Leakage Current Tester", measure
the leakage current from each exposed metal parts of the cabinet,particularly any exposed
metal part having areturn path to the chassis, to a known good earth ground. Any leakage
current must not exceed 0.5mA AC (r.m.s.)

.Alternate check method
Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000 ohms
per volt or more sensitivity in the following manner. Connect a 1.5009 10W resistor paralleled by
a 0.1511l F AC-type capacitor between an exposed

- AC VOLTMETER
metal part and a known good earth ground. a (Having 1000
Measure the AC voltage across the resistor with the ohms/volts,
AC voltmeter. or more sensitivity)
Move the resistor connection to eachexposed metal %
part, particularly any exposed metal part having a 0.15/JF AC TYPE
return path to the chassis, and meausre the AC _||_ Placethis
voltage across the resistor. Now. reverse the plug in probe on
the AC outlet and repeat each measurement. voltage teach exposed
measured Any must not exceed 0.75 V AC (r.m.s.), 15009 10W melalpafl

This corresponds to 0.5 mA AC (r.m.s.). Good earth ground

i-Warmng
1.This equipment has been designed and manufactured to meet international safety standards.

2. It is the legal responsibility of the repairer to ensure that these safety standards are maintained.
3. Repairs must be made in accordance with the relevant safety standards.

4. It is essential that safety critical components are replaced by approved parts.

5.If mains voltage selector is provided, check setting for local voltage.

A CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.

Page 48

CA-D702T/D752TR

2-20

«CD Changer Mechanism Type:VCS Section»

lRemoving the CD Servo control board
(See Fig.1)

1.Remcve the metal cover. M

2.Flemove the CD changer mechanism assembly.

3.From bottom side the CD changer mechanism assembly,
remove the two screws 1 retaining the CD servo control
board.

4.Absorb the tour soldered positions "M" of the right and
left motors with a soldering absorber.

5.Puli out the earth wire on the CD changer mechanism
assembly. '

6.The two screws A is removed and C.B.holder is detached.

7.Disconnect the connector CN854 on the CD servo
control board.

8.Disconnect the card wire CN601 and the connector
CNBO1 on the CD servo control board.

" ' ",CNGO1

:L_'_J

IRemoving the CD tray assembly
(See Fig.2~4)

1. Remove the front panel assembly.

2. Remove the CD changer mechanism assembly.

3. Remove the CD Servo control board.

4. From the {bracket section "B" and clamper base
section "C , remove both of the edges fixing the
rod(See Fig.2 and 3).

5. Remove the screw 2 retaining the Disc stopper

jsee Fig.3).
6. Remove the three screws 3 retaining the Tbracket

(See Fig.3).
7. Remove the screws 4 retaining the clamper assembly

(See Fig.3).

8. From the left side face at the chassis assembly. remove
the one screw 5 retaining both of the return spring and
lock lever(See Fig. 4).

9. By removing the pawl at the section "D fixing the
return spring, dismount the return spring(See Fig.4).

10. Remove the three lock levers($ee Fig.4),

T.Braket

Disc stopper
T. Braket

/

IFS

3

Lod stopper
(C/J version only)

3

4

Lock lever

Clamper ass'y

Fig.3 Fig.4

Page 54

CA-D702T/D752TR

< Cassette Mechanism Section >

Cassette mechanism

I Removing the Playback,Recording and Eraser
Heads

1. While shifting the trigger arms seen on the right
side of the head mount in the arrow direction,turn
the flywheel Fl in counterclockwise direction until
the head mount has gone out with a click
(See Fig 1).

2. When the flywheel R is rotated in counterclockwise
direction, the playback head will be turned in
counterclockwise direction from the position in
Fig 2 to that in Fig 3.

3. At this position, disconnect the flexible P.C.board
(outgoing from the playback head) from the
connector CN301 on the head amp. and mechanism (Mechanism A side)
control P.C. board.

4. After dismounting the FPC holder,remove the
flexible P.vaoard.

5. Remove the flexible P.C.board from the chassis
base. . . Flexible

6. Remove the spring ® from behind the playback board
head.

7. Loosen the reversing azimuth screw retaining the
playback head.

8. Take out the playback head from the front of the
head mount.

9. The recording and eraser heads should also be
removed similarly according to Steps 1~8 above.

Flywheel R

Head mount Trigger arm

Playback/Recording 8.
eraser head Spring®

h Trigger arm

CN31
Head amplifier 8. mechanism Flywheel R
O Reassembling the Playback, Recording and com P'C' board

Eraser (Mechanism A side)
Heads

1. Reassemble the playback head from the front of
the head mount to the position as shown in Fig 3.
2. Fix the reversing azimuth screw. . .
3. Set the spring a from behind the playback head. Playback head Reversung azimuth
4. Attach the flexible P.C.board to the chassis base, screw
and fix it with the FPC holder as shown in Fig 3.
5. The recording and eraser heads should also be ,
reassembled similarly according to Steps 1~4 Spnng®
above.

c:
a
Head
mount

Flexible
board

CN301
Head amplifier &
mechanism control
RC. board

FPC holder

(Mechanism B side)

2-26
