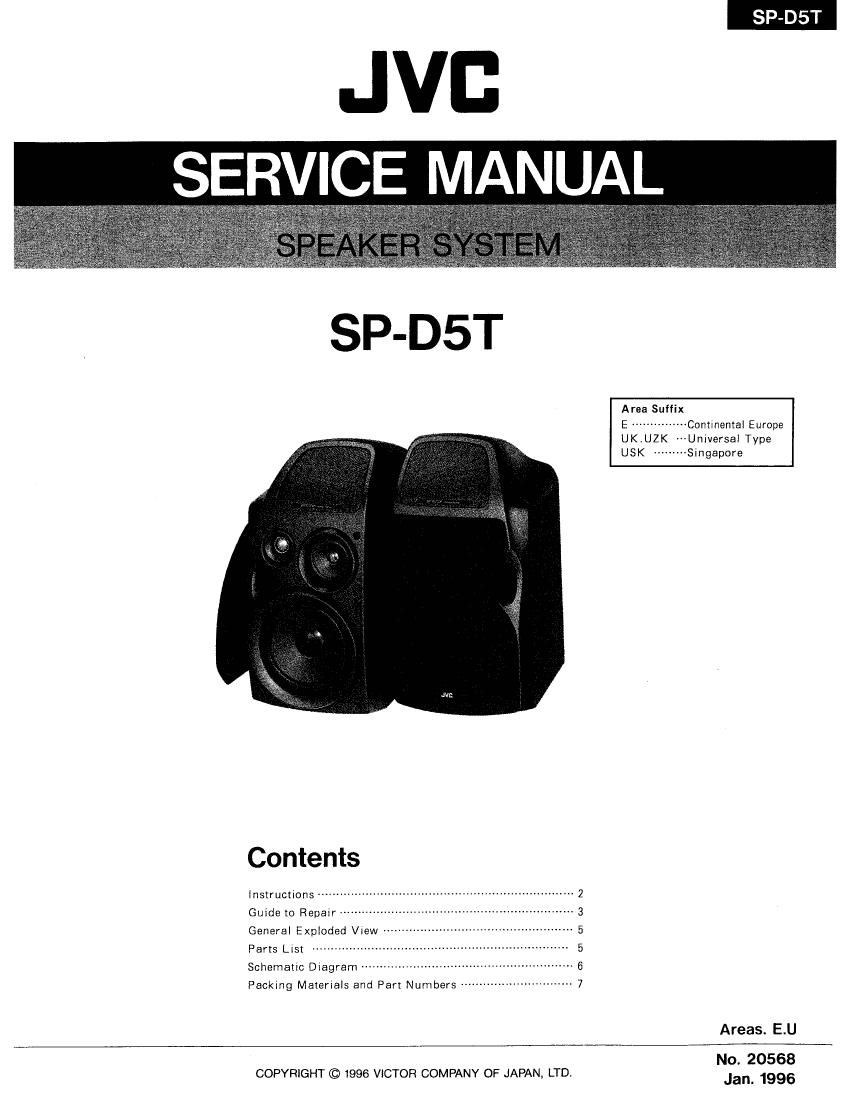

JVD

SP-D5T

SERVICE MANUAL

Area Suffix

E -------------- Continental Europe
UK.UZK Universal Type
USK --------- Singapore
instructions ------
Guide to Repair
General Exploded View ................................................. 5
Parts List
Schematic Diagram - -~ 6
Packing Materials and Part Numbers ---------------------------- 7
Areas. E.U
No. 20568

COPYRIGHT © 1996 VICTOR COMPANY OF JAPAN, LTD.

Jan. 1996

Page 2

SID-05L]

Instructions

Connection

Conexién

Ligacéo

fifi

w
31" Press
Negro Preslonar
Preto Pressione

+= M l"

1,3 law

. Remove the ending part 01 the vinyl covering from the cut.
2. Twist the wires. ,

. Remover la pane de extremidad de la cubierta de pla'stica
de la parte cortada.
. Torcer los alambres.

N

. Retire o extreme do isolamento pléstico desde o cone.
. Torca os fios.

Hxflififiifiékalimtflfifiylfiéo
2. fifiififia

ere-

.afllwlelJWQWIAIQL .t
.JLVIHPE .r

CONNECTION

- Connect the LEFT speaker terminals of the amplifier to
the LE terminals of the speaker and RIGHT to RIGHT
using th attached speaker cords as shown in the figure
makin'g sure polarity is correct; (4-) to (+) and (-) to (-).
Connect the black speaker wires to the (-) terminals.

- Turn off power to the whole system before connecting
the speakers to the amplifier.

- The nominal impedance of the SP-DST is 6 ohms.
Connect them to an amplifier with the load impedance of
6 ohms speaker.

. The maximum power handling capacity of the SP-DST
is 100 watts. Excessive input will result in abnormal noise
and possible damage.

In cases where the signals described below are applied

to the speakers, even it the signals are below the

maximum allowable input, they may cause an overload

and burn the wiring of the speakers. Be sure to lower

the amplifier volume beforehand.

1) Noise during FM tuning.

2)High level signals containing high frequency
components produced by a tape deck in the fast
forward mode.

Click noise produced when turning power of other

moor-rents on and off.

V. , lick noise produced when connecting or

disconnecting cords with the power on.

SKI-tick noiseproduced when the cartridge is replaced

with thepower on.

6) Click noise produced when operating amplifier
switches.

7)Continuous high frequency oscillation or high pitch
electronically produced musical instrument sound.

8) Howling when using a microphones.


SPECIFICATIONS

Type : 3-way 4-speaker bass-reflex type

Speakers:
Woofer : 15 cm (5-15/16) cone x 1
Midrange : 7 cm (2-3/4) cone x 1
Tweeter : 2 cm (is/16) dome x 1
EFFECTOP 2 8 cm (3-1/8) cone x 1

Power Handling Capacity : 100 watts

Impedance : 6 ohms

Frequency Flange : 42 Hz - 20,000 Hz
Sound Pressure Level : 87dB/w-m
Dimensions (W x H x D): 205 x 378 x 284 mm
(8-1/8 x 14-15/16 x11-3/16)
: 3.7 kg (8.2le) each
: Speaker Cord ................ 2

Mass
Accessories

Design and specifications subject to change without notice,
