Jvc SPD 4 Service Manual

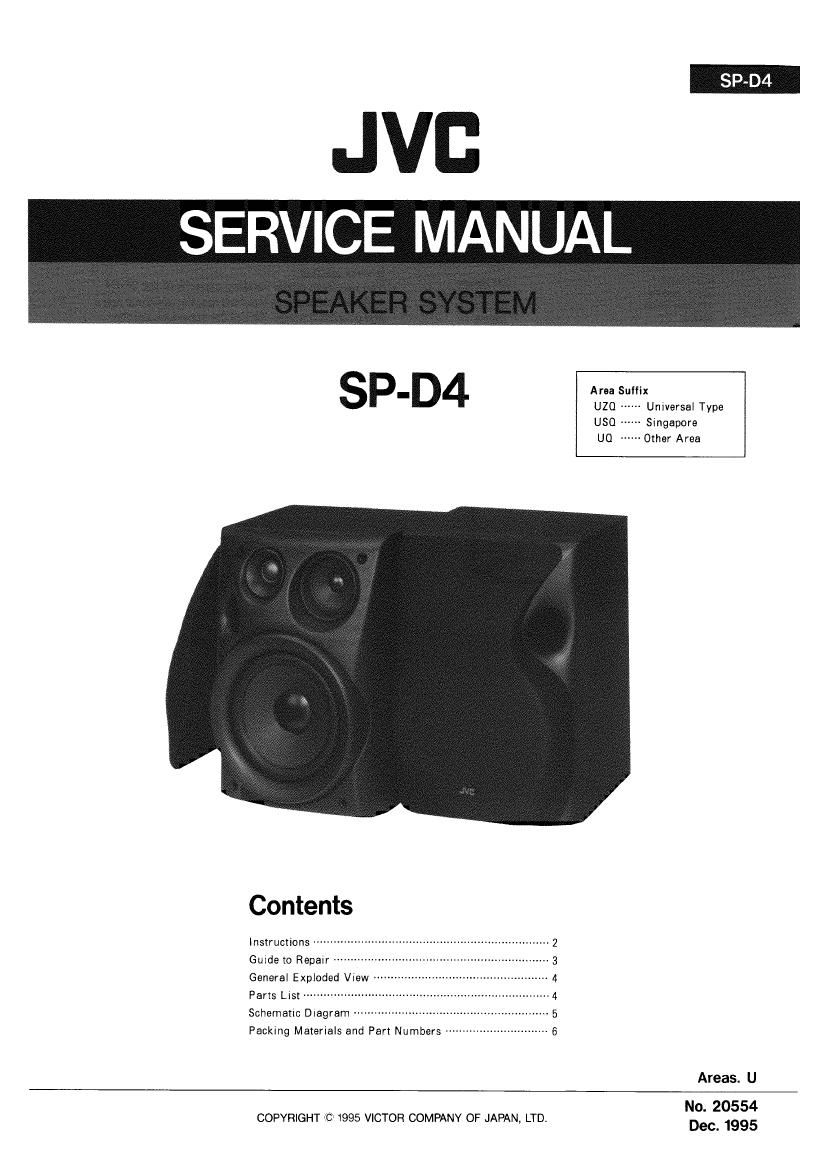

Page 1

.JVI.'..I
SERVICE MANUAL

SP-D4

UZO Universal Type
USO Singapore
U0 ------ Other Area

Contents

Instructions -----

Guide 0 Repair
General Exploded VIeW .........................................
pans st ..............

mbbwm

Schematlc Diagram
Packing Materials and Part Numbers ----------------------------- 6

Areas. U

No. 20554

COPYRIGHT ©1995 VICTOR COMPANY or JAPAN, LTD.
Dec. 1995

Page 2

SP-D4J

Instructions

Connection

Conexion

Ligacfio

£8

Mi
Right speaker Left speaker
Altawz derecho Altavoz izquierdo
Altitalantle direito Altifalante esquerdo
anus tfllfi
f; a;\...Ji 5hr szJl

Amplifier output terminals

Terminales de solids de airlplificador

Terminals de saida do ampliticadu

mtiflitfi fi'?

9 c? y; 9)"
SPEAKERS

eééfiée
-lm :c; )1:
GE

v

III
a)

Black
Negro
Preto

.,_

CONNECTION

- Turn off power to the whole system before connecting
the speakers to the amplifier.

- The nominal impedance of the SP-D4 is 6 ohms.
Connect them to an amplifier with the load impedance oi
6 ohms speaker.

- The maximum power handling capacity of the SP-D4
is 60watts. Excessive input will result in abnormal noise
and possible damage. 70% of the maximum amplifier
output is normally available when the volume control is
set to its center position.

In cases where the signals described below are applied

to the speakers, even it the signals are below the

maximum allowable input, they may cause an overload

and burn the wiring of the speakers. Be sure to lower

the amplifier volume beforehand.

1) Noise during FM tuning.

2)High level signals containing high frequency
components produced by a tape deck in the fast
forward mode.

3)Click noise produced when turning power of other
components on and off.

4) Click noise produced when connecting or
disconnecting cords with the power on.

5) Click noise produced when the cartridge is replaced
with the power on.

6) Click noise produced when operating amplifier
switches.

7) Continuous high frequency oscillation or high pitch
electronically produced musical instrument sound.

8) Howling when using a microphones.

SPECIFICATIONS

Type: 3-way bass-reflex type

Speakers:
Woofer 15cm 1545/16) cone x 1
Midrange 6 cm (2-3/8) cone x 1
Tweeter 2 cm (13/16")dome x 1

Power Handling Capacity:

Impedance

Frequency Range
Sound Pressure Level
Dimensions (W x H x D)

Mass

60 watts

6 ohms

42 Hz - 20,000HZ

87dB/w . m

205 x 230 x 251mm
(8-1/8 x11-1/16 x 9-15/16)
2.8 kg (6.2 lbs) each

Design and specifications subject to change without notice.
