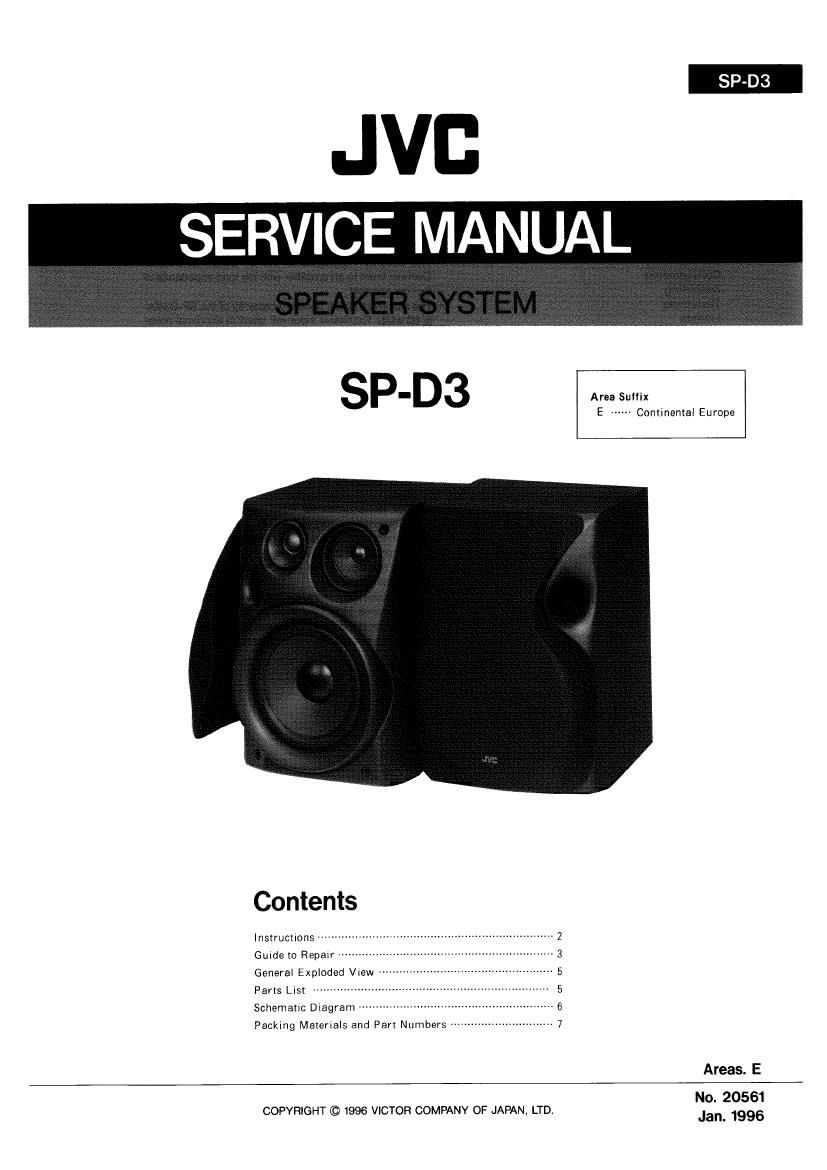

Jvc SPD 3 Service Manual

Page 2

SP-DS

Instructions

Connection

Anschluli

Raccordement

Aansluiting

Conecxio'n

Collegamento

Ansluiting

Tilslutning

Liitanta

Black Press

Noir Appuyer

Schwarz Drucken

Zwart lndrukken

Negro Presioar

Nero Premere

Svart Tryck

Son Tryk

Musla Patna
/

CONNECTION

Connect the LEFT speakerterminals of theamplifierto the

LEFTierminalsolthe speakerand RIGHT to RIGHT using

the attached speaker cords as shown In the figure making

sure polarity is correct; (+) to (+) and (-) to (-), Connect
the black speaker wires to the H terminals.

Turn off powerto the whole system before connecting the

speakers to the amplifier.

The nominal impedance of the SP-De/D4 is Gohms.

Connect them to an amplifier with the load impedance of

6 ohms speaker.

- The maximum power handling capacity of the SP-Da/D4

is 60 watts. Excessive input will result in abnormal noise

and possible damage, 70% of the maximum amplifier
output is normally available when the volume control is
set to its center position.

In cases where the signals described below are applied to

the speakers, even If the Signals are below the maximum

allowable input, they may cause an overload and burn the
wiring of the speakers, Be sure to lower the amplifier
volume beforehand.

1) Noise during FM tuning.

2) High level signals containing high frequency compo,
nents produced by a tape deck in the fast forward
mode.

3) Click noise produced when turning power of other
components on and off.

4) Click noise produced when connecting or disconnect-
ing cords with the power on.

5) Click noise produced when the cartridge is replaced
with the power on,

6) Click nonse produced when operating amplifier swttches.
7) Continuous high frequency oscillation or high pitch
electronically produced musical instrument sound.

8) Howling when using a microphones.

n

SPECIFICATIONS
Type : 3-way bass-reflex type
Speakers:
Woofer 1 15cm (5-15/16) cone x1
Midrange : 6 cm (2-3/8) cone x 1
Tweeter : 2 cm (is/16) dome x 1
Power Handling Capacity : 60 watts
Impedance : 6 ohms
Frequence Range : 42 HZ - 20,000 Hz
Sound Pressure Level : 87 dB/w~m

Dimensions (W x H x D) : 205 x 280 x 251 mm
(8-1/8 x 11-1/16 x 9-15/16)

Mass : 3.0kg (6.7 lbs) each

Accessories : Speaker cord . 2

Desrgn and specifications subject to change without notice.
