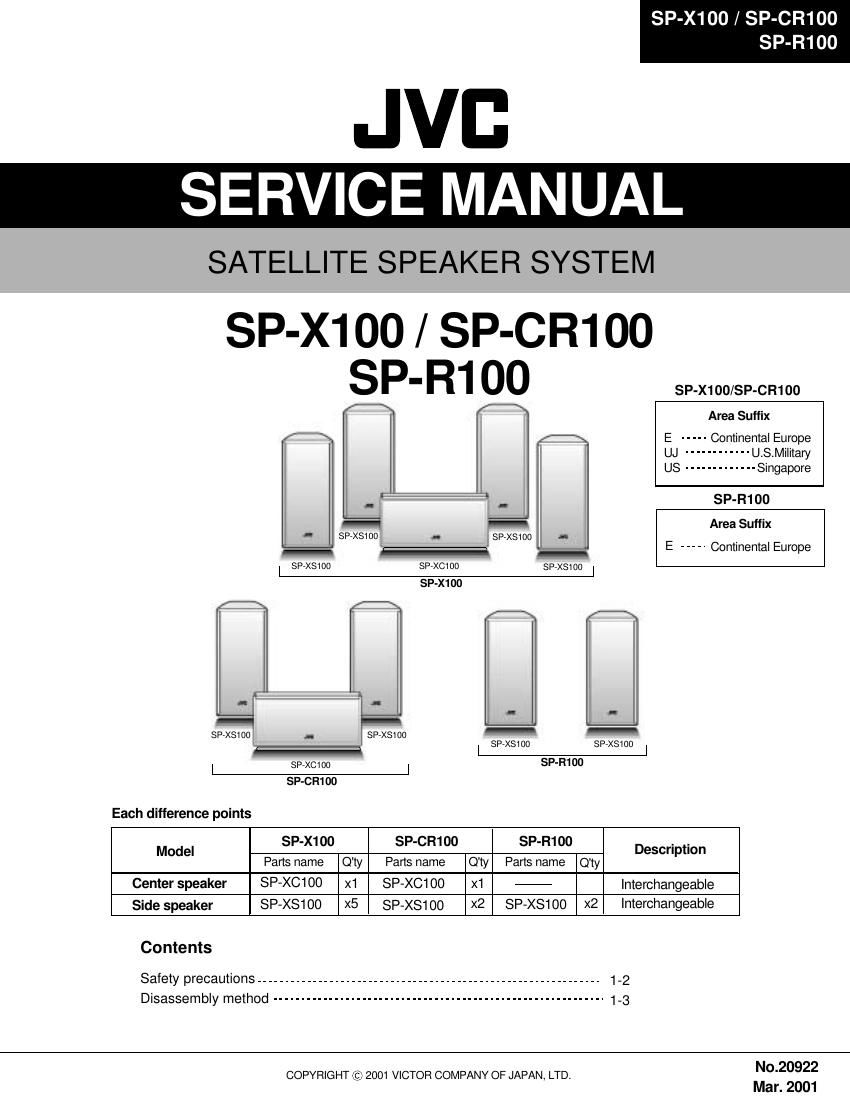

Jvc SPCR 100 Service Manual
This is the 14 pages manual for Jvc SPCR 100 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc SPCR 100 Service Manual (Ocr-read)
Page 1
SP-X100/SP-CR100 SP-R100 1-2 ! Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of preforming repair of this system. Safety precaution
Page 2
SP-X100/SP-CR100 SP-R100 1-3 Remove the six hooks a attaching the ornament panel from front side. In that case, ornament panel is fixed with the adhesive, and remove the ornament panel by using a minus driver etc. , please. 1. Disassembly method Removing the Ornament Panel (See Fig.1) Prior to performing the following procedure, remove the ornament panel. Remove the two screws A attaching the front panel. Pull out the front Panel. In that case, front panel is fixed with the adhesive, and remove the front panel by using a minus driver etc. , please. 1. 2. Removing the front panel (See Fig.2 ) 1. 2. Prior to performing the following procedure, remove the ornament panel. and front panel. Disconnect the speaker wire from speaker terminal. Remove the four screws B attaching the speaker. Removing the speaker (See Fig.3 to 4) The speaker box of this model is a unit supply. Therefore, we do not supply it as individual parts though the method of disassembling the speaker box has been described. Fig.1 Fig.2 Fig.3 a Ornament Panel B B Front panel assembly Front panel assembly Fig.4 Speaker wire Speaker terminal A a B B Speaker B
Page 13
SP-X100/SP-CR100 SP-R100 3-9 Block No. M6MM A A Parts list (Packing) Symbol P 1 P 2 P 3 P 4 P 5 P 6 P 7 P 8 Parts number 83-000-440-31 80-000-454-01 80-000-454-11 85-000-357-01 85-000-327-71 85-000-357-21 85-000-327-71 81-001-015-01 Parts name Individual carton Cushion (Top) Cushion (Bottom) Poly bag Poly bag Poly bag Poly bag PartitionQ'ty 1 1 1 2 1 1 2 1 Description Top Bottom For bracket For speaker cord For bolt set SP-XS100Color Value Parts list (Accessories) Block No. M7MM Symbol A 1 A 2 A 3 A 4 Parts number 64-000-200-11 62-000-408-11 72-000-359-11 87-000-948-01 Parts name Bracket Speaker cord Bolt set InstructionValue Q'ty 2 2 2 1Description Length 10mColor SP-R100 SP-R100
