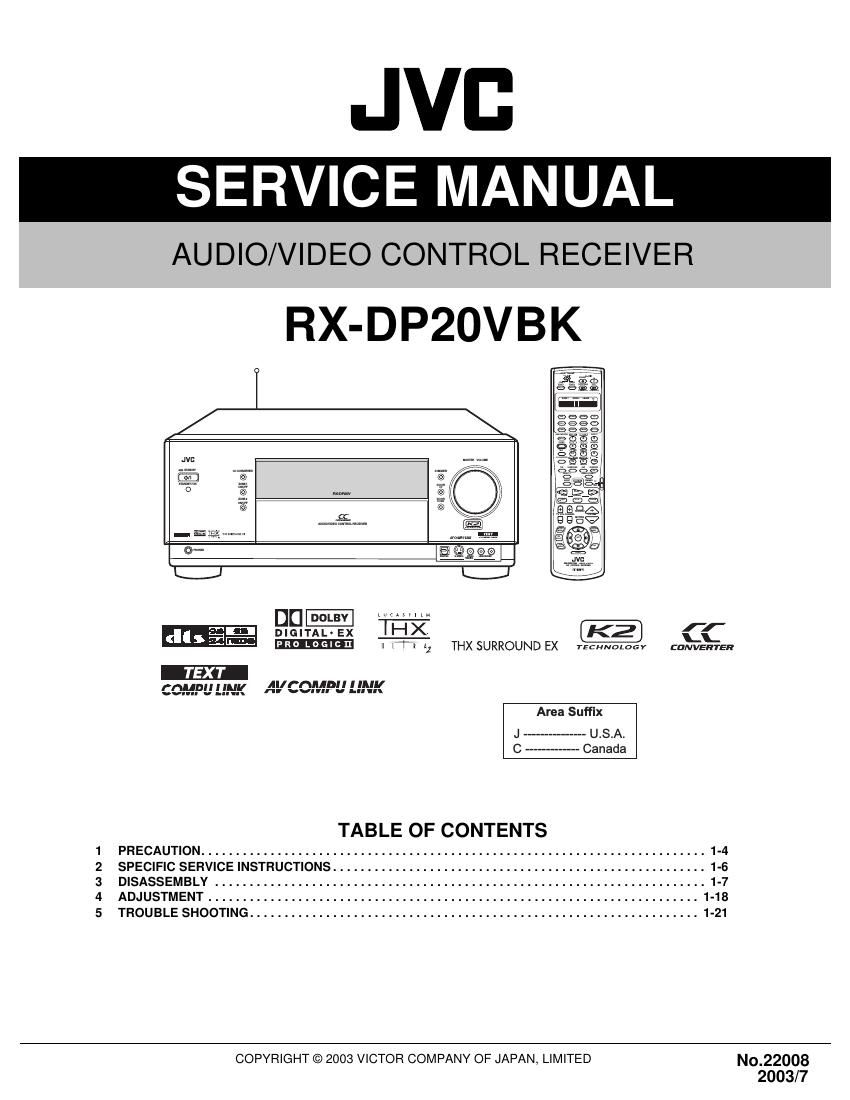

Jvc RXDP 20 VBK Service Manual 2

This is the 22 pages manual for Jvc RXDP 20 VBK Service Manual 2.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 22
Jvc RXDP 20 VBK Service Manual 2

Extracted text from Jvc RXDP 20 VBK Service Manual 2 (Ocr-read)

Page 1

1-2 (No.22008) SPECIFICATION Amplifier Output Power At Stereo operation (Analog Direct On)Front channels 120 W per channel, min. RMS, driven into 8 Ω, 20 Hz to 20 kHz with no more than 0.02% total harmonic distortion. 120 W per channel, min. RMS, driven into 4 Ω, 20 Hz to 20 kHz with no more than 0.07% total harmonic distortion. At Surround operation (Analog Direct On)Front channels 120 W per channel, min. RMS, driven into 8 Ω, 20 Hz to 20 kHz with no more than 0.02% total harmonic distortion. Center channel 120 W, min. RMS, driven into 8 Ω, 20 Hz to 20 kHz with no more than 0.02% total harmonic distortion. Surround channels 120 W per channel, min. RMS, driven into 8 Ω, 20 Hz to 20 kHz with no more than 0.02% total harmonic distortion. Surround back channels 120 W per channel, min. RMS, driven into 8 Ω, 20 Hz to 20 kHz with no more than 0.02% total harmonic distortion. Audio Audio Input Sensitivity /Impedance (1 kHz)PHONO IN (MC) 0.25 mV/100 Ω (MM) 2.5 mV/47 kΩ CD IN, CDR IN, TAPE/MD IN, EXT 7.1CH IN 200 mV/47 kΩ DVD IN, VCR 1 IN, VCR 2 IN, TV SOUND/DBS IN, VIDEO 200 mV/47 kΩ Audio Input (DIGITAL IN)*Coaxial 1(DVD), 2(CD), 3(TV/DBS) 0.5 V(p-p)/75 Ω Optical 4(CDR), 5(MD), 6(VCR1) -21 dBm to -15 dBm (660 nm ±30 nm) * Corresponding to Linear PCM, Dolby Digital, and DTS Digital Surround (with sampling frequency - 32 kHz, 44.1 kHz, 48 kHz) Audio Output Level ZONE 2 PREOUT 200 mV PREOUT 1 V Recording Output LevelTAPE/MD OUT, CDR OUT, VCR 1 OUT, VCR 2 OUT200 mV Digital output Optical DIGITAL OUT Signal wave length 660 nm Output level Signal-to-Noise Ratio (66 IHF/78 IHF) (Analog Direct On)PHONO IN (MC) 60 dB/72 dB (at REC OUT) (MM) 72 dB/80 dB (at REC OUT) CD IN, CDR IN, TAPE/MD IN, EXT 7.1CH IN 92 dB/80 dB DVD IN, VCR 1 IN, VCR 2 IN, TV SOUND/DBS IN, VIDEO 92 dB/80 dB Frequency Response (8 Ω)PHONO IN (MC) 20 Hz to 20 kHz (±1 dB) (MM) 20 Hz to 20 kHz (±1 dB) CD IN, CDR IN, TAPE/MD IN, EXT 7.1CH IN10 Hz to 100 kHz (+1 dB, -3 dB) DVD IN, VCR 1 IN, VCR 2 IN, TV SOUND/DBS IN, VIDEO 10 Hz to 100 kHz (+1 dB, -3 dB) RIAA Phono Equalization ±1.0 dB (20 Hz to 20 kHz) Video Video Input Sensitivity /ImpedanceComposite video DVD IN, VCR 1 IN, VCR 2 IN, TV SOUND/DBS IN, VIDEO1 V(p-p)/75 Ω S-video DVD IN, VCR 1 IN, VCR 2 IN, TV SOUND/DBS IN, VIDEO(Y: luminance) 1 V(p-p)/75Ω (C: chrominance, burst) 0.286 V(p-p)/75 Ω Component 1 IN (DVD), 2 IN,3 IN(Y: luminance) 1 V(p-p)/75 Ω (PB, PR) 0.7 V(p-p)/75 Ω Video Output LevelComposite video VCR 1 OUT,VCR 2 OUT,MONITOR OUT1 V(p-p)/75 Ω S-video VCR 1 OUT, VCR 2 OUT, MON- ITOR OUT(Y: luminance) 1 V(p-p)/75Ω (C: chrominance, burst) 0.286 V(p-p)/75 Ω Component MONITOR OUT(Y: luminance) 1 V(p-p)/75 Ω (PB, PR): 0.7 V(p-p)/75 Ω Synchronization Negative Signal-to-Noise Ratio 45 dB

Page 2

(No.22008)1-3 Designs & specifications are subject to change without notice. FM tuner (IHF)Tuning Range 87.5 MHz to 108.0 MHz Usable Sensitivity Monaural 12.8 dBf (1.2 µV/75 Ω) 50 dB Quieting Sensitivity Monaural 18.2 dBf (2.2 µV/75 Ω) Stereo38.2 dBf (22.3 µV/75 Ω) Signal-to-Noise Ratio (IHF-A weighted) Monaural 78 dB at 85 dBf Stereo73 dB at 85 dBf Total Harmonic Distortion Monaural 0.2% at 1 kHz Stereo0.3% at 1 kHz Stereo Separation at REC OUT 40 dB at 1 kHz Alternate Channel Selectivity 60 dB (±400 kHz) Frequency Response 30 Hz to 15 kHz (+0.5 dB, -3 dB) AM tuner Tuning Range 530 kHz to 1 710 kHz Usable Sensitivity Loop antenna: 400 µV/m Signal-to-Noise Ratio 50 dB (100 mV/m) General Power Requirements AC 120V~, 60 Hz Power Consumption 580 W/690 VA (at operation) 2.7 watts (in standby mode) Dimensions (W × H × D) 445 mm × 177 mm × 475 mm (17 9/16 in. × 7 in. × 18 3/4 in.) Mass23.5 kg (52 lbs)
