Jvc RX 8022 RSL Schematic
This is the 22 pages manual for Jvc RX 8022 RSL Schematic.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc RX 8022 RSL Schematic (Ocr-read)

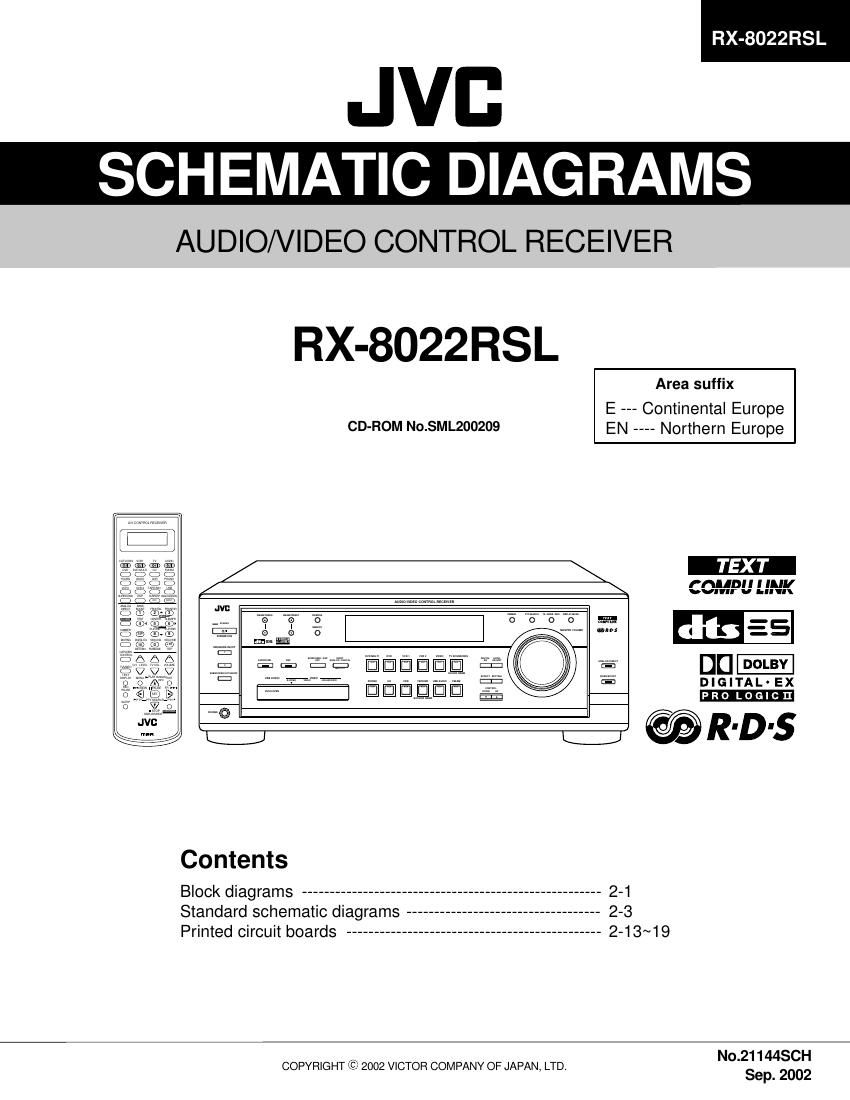

Page 1
.Jvc:
SCHEMATIC DIAGRAMS
AUDIONIDEO CONTROL RECEIVER
Area suffix
RX-8022RSL
CD-ROM No.SML200209 EN Northern Europe
DIGITAL-EX
@R-D-s
Contents
Block diagrams 2-1
Standard schematic diagrams 2-3
Printed circuit boards 2-13~19
COPYRIGHT LC. 2002 VICTOR COMPANY OF JAPAN, LTD. NO.21144SCH
Sep. 2002
Page 2
RX-8022RSL
In regard with component parts appearing on the silk-screen printed side (parts side) of
the PWB diagrams, the parts that are printed over with black such as the resistor (I),
diode (-) and ICP (Q) or identified by the "1N mark nearby are critical for safety.
(This regulation does not correspond to J and C version.)
