Jvc RX 772 VBK Owners Manual

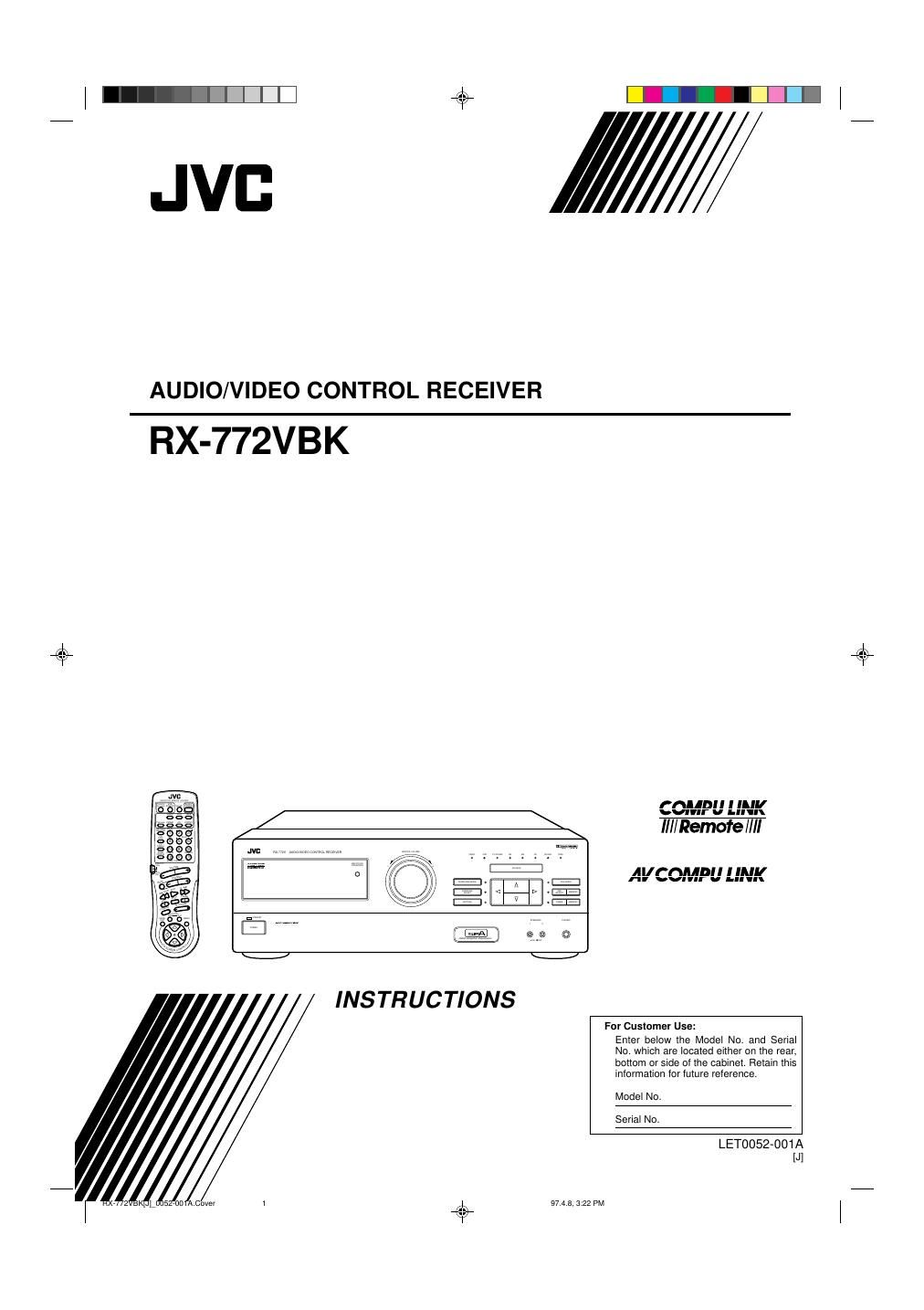

Page 1

4:}

J JVB //

AUDIO/VIDEO CONTROL RECEIVER

RX-772VBK

/ \
/
fnllbl I I ll"!
wwnr v lulll
III/Remotel/II
JVG In to m
I; I) AI/rnnnm I I luv
[1' \ov'vlrv Ell.
\_/
For Customer Use:
Enter below the Model No. and Serial
No. which are located either on the rear,
bottom or side of the cabinet. Retain this
information for future reference.
Model No.
Serial No.
LET0052-001 A
[J]
, 2 L 5 700 A.Cover 1 914.8322 PM

m
\/

Page 2

l _:I:|:|:|:|

4%

l

Warnings, Cautions and Others

CAUTION

RISK OF ELECTRlC SHOCK
DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

The lightning flash with arrowhead symbol,
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.

CAUTION

To reduce the risk of electrical shocks. fire, etc.:

1. Do not remove screws. covers or cabinet.

2. Do not expose this appliance to rain or moisture.

Caution - POWER switch!

Disconnect the mains plug to shut the power off completely. The
POWER switch in any position does not disconnect the mains line.
The power can be remote controlled.

Caution -- SPEAKER LOAD SELECTOR switch!

Match the position of SPEAKER LOAD SELECTOR switch on the
back panel to the impedance of the speaker connected, to protect
from overheating.

WARNING: TO REDUCE THE RISK OF FIRE
0R ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.

G-1

RXV772VBK[JL00527001A.Warranly 1

97.4.8. 3:21 PM

fl?

Page 39

l_:|:|:|:|:| [BED] l

4}}

AV COMPU LINK Remote Control System

The AV COMPU LINK remote control system allows you to operate JVC video components (TV and VCR)
through the receiver.

CONNECTIONS:

To use this remote control system, you need to connect the video components you want to operate, following
the procedures below.

CAUTION:
The AV COMPU LINK remote control system cannot control the video components connected
to the VIDEO jacks on the receiver. Use only VCFI jacks for the VCR jacks.

1. Connect your VCR and TV as follows, using the cables with the monaural mini-plugs (not
supplied).

VCFI

IEIIIE-

2. Connect the VCR and TV as follows.

0 When using an S-VHS VCR, connect it as follows: See also page 9.

TV

W DO NOT connect the
my, . _ _
VCR IN (PLAY) 130K To video inpul1 S-video jack

(using S-video cable)

MONITOR
our

- When using a VHS VCR, connect it as follows: See also page 9.

To video input 2 jack (using video cable) -

VHS VCR TV
DUI our
rage) @ -
V? ch
:-

o
MOSUTTOR © To video input 2 jack (using video cable)

i

3. When turning on the TV for the first time after the AV COMPU LINK connection, turn the TV
volume to the minimum using the TV volume control on the TV.

Page 36
