Jvc RX 7032 VSL Service Manual
This is the 59 pages manual for Jvc RX 7032 VSL Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Jvc RX 7032 VSL Service Manual (Ocr-read)
Page 1

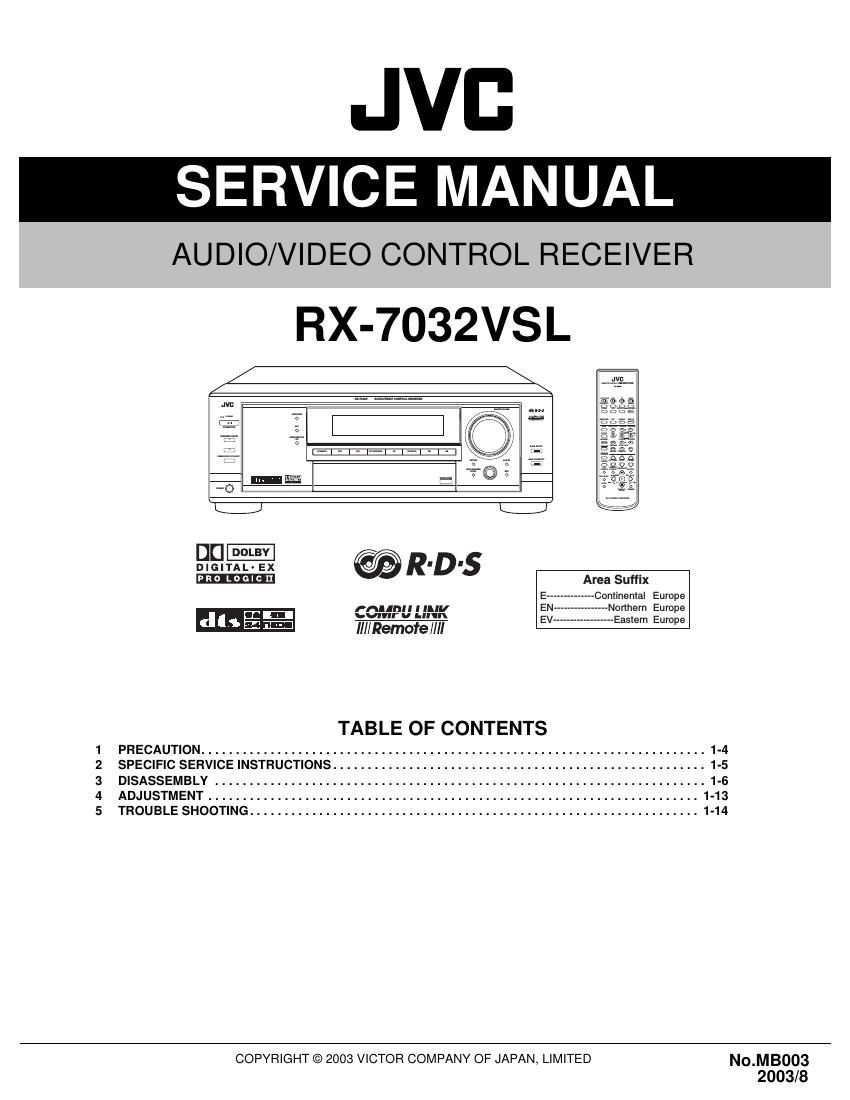

JVC
SERVICE MANUAL
AUDIO/VIDEO CONTROL RECEIVER
RX-7032VSL
E i:
-0 -W_
W
ng-Ex @R-D-s
Area Suffix
PRO LOGICH
E 77777777777777 Cominemal Europe
fflllDl l I [All]
vvl
E
([1; IEEE W av rrrrrrrrrrrrrrrrrr 5am Europe
TABLE OF CONTENTS
1 PRECAUTION ......................................................................... 1-4
2 SPECIFIC SERVICE INSTRUCTIONS ...................................................... 1-5
3 DISASSEMBLY ....................................................................... 1-6
4 ADJUSTMENT ....................................................................... 1-13
5 TROUBLE SHOOTING ................................................................. 1-14
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LIMITED NO.MBOO3
2003/8
Page 2
SPECIFICATION
Amplifier Output Power At Stereo operation Front ch 100 W per channel, min. RMS,
driven into 8 Q at 1 kHz, with no
more than 0.8% total harmonic
distortion (IEC268-3/DIN).
At Surround operation Front ch 100 W per channel, min. RMS,
driven into 8 Q at 1 kHz, with no
more than 0.8% total harmonic
distortion.
Center ch 100 W, min. RMS,drivenint08£2
at 1 kHz, with no more than 0.8%
total harmonic distortion.
Surround ch 100 W per channel, min. RMS,
driven into 8 Q at 1 kHz, with no
more than 0.8% total harmonic
distortion.
Surround Back ch 100 W, min. RMS,driven intoSQ
at 1 kHz, with no more than 0.8%
total harmonic distortion.
Audio Audio Input Sensitivity/ DVD IN, VCR IN, TV SOUND/DBS IN 200 mV/47 k0
'mpedance (1 kHz) CD IN, TAPE/CDR IN 200 mV/47 kQ
Audio Input Coaxial DIGITAL 1 (DVD) 0.5 V(p-p)/75 Q
(D'G'TAL 'NV Optical DIGITAL 2 (CD), -21 dBm to -15 dBm
DIGITAL 3 (TV), (660 nm :30 nm)
DIGITAL 4 (CDR)
Corresponding to Linear PCM, Dolby Digital, and DTS Digital Surround (with sampling frequency-32 kHz, 44.1 kHz,
48 kHz).
Audio Output Level SUBWOOFER OUT 1 V
Recording Output Level VCR OUT, TAPE/CDR OUT 200 mV
Digital output Optical DIGITAL OUT
Signal wave length 660 nm
Output level -21 dBm to -15 dBm
Signal-to-Noise Ratio DVD IN, VCR IN, TV SOUND/DBS IN 87 dB/67 dB
(55 'HFD'N) CD IN, TAPE/CDR IN 87 dB/67 dB
Frequency DVD IN, VCR IN, TV SOUND/DB8 IN 20 Hzto 100 kHz (+1 dB, -3 dB)
2630 CD IN, TAPE/CDR IN 20 Hz to 100 kHz (+1 dB, -3 dB)
Equalization (5 bands) 63 Hz, 250 Hz, 1 kHz, 4 kHz,
16 kHz (:8 dB)
Bass boost +6 dB :10 dB at 100 H2
Video Video Input Sensitivity Composite DVD IN, VCR IN, TV SOUND/DBS IN: 1 V(p-p)/75 Q
limpedance video
S-video DVD IN, VCR IN, (Y: luminance) 1 V(p-p)/75 9
TV SOUND/BBS 'N (C: chrominance, burst) 0.286 V(p-p)/75 52
Video Output Level Composite VCR OUT, 1 V(p-p)/75 9
video MONITOR OUT
S-video VCR OUT, (Y: luminance) 1 V(p-p)/75 Q
MON'TOR OUT (c: chrominance, burst) 0.286 V(p»p)/75 o
Synchronization Negative
Signal-to-Noise Ratio 45 dB
1-2 (No.MBO()3)
